4 pin PWM fan on 3 pin enclosed connector

Zander M16

Distinguished
Dec 29, 2013
29
0
18,530
*Please read all before commenting*

i have an evga gtx 980 ti hybrid and i want to plug in a Noctua industrial 3000Rpm fan as my rad fan...

but the female plug for the Rad fan is a 4 pin PWM but the hybrid fan connector is a 3 pin that is enclosed, im finding it extremely hard to find an adaptor for this, i can find an adaptor for the other way around easily but not this way, can anyone help me find an adaptor or some other kind of way to solve this issue easily?

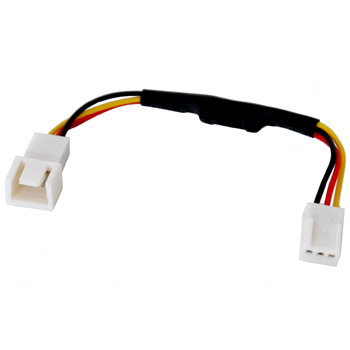

if you're not sure what i mean by enclosed here is an example of what the GPU fan socket looks like (its the bit on the left)
https://www.scan.co.uk/images/products/725600-a.jpg

even if you can find a splitter that adapts from 3 pin to 4 pin that would be even better since i'm thinking about having 2 rad fans in push and pull configs, for max air through the rad

Thanks

Solution
that looks like it'll go into the shroud and give you 2 unshrouded 3 pin connections which the 4 pin noctua will connect and cool the rad. seems logical.

R_1

Expert
Ambassador
if it were me. I would cut the shroud off the offending end (enclosed 3-pin) and free the pins for the plug. pair of pliers or wire cutters, three snips and plug it in. I would use a dab of hot glue after it is connected to keep the joint together. the three pins will plug directly into the 4 pin, you just have to remove the shroud.

if you cant find an adapter, be the Adapter.


Zander M16

Distinguished
Dec 29, 2013
29
0
18,530


unfortunately i've already tried doing this but i dont seem to be very good at it at all, so i guess i'll need to buy new cutters or something

but what do you think of this?
http://www.ebay.co.uk/itm/311280789233?_trksid=p2060353.m2749.l2649&ssPageName=STRK%3AMEBIDX%3AIT

Thanks


Zander M16

Distinguished
Dec 29, 2013
29
0
18,530


literally seen it as i was replying to your last message, god i love ebay...

just wish i had some bros that liked PCs as much as me in my local area :p

well thanks for your help mate
