Question Could a GTX 1070 founders edition fit into a JONSBO C2 computer case?

[AndrethePCbuilderguy]

So recently I want to buy a GTX 1070, but the problem is that I am worried if my GPU could not fit into my computer case, which is a JONSBO C2, and I know that my H410MH motherboard has a PCI x16 slot, so that means it could fit in my motherboard, so I think I may need some help there.

Here’s the following:

乔思伯JONSBO

乔思伯JONSBO

www.jonsbo.com

https://www.amazon.ca/Gigabyte-GeForce-Graphics-GV-N1070G1-GAMING-8GD/dp/B01H0WU884

Let me know if you have a result. Thanks.



[Deleted member 2731765]

According to the description, it says support for "dual slots full height display card", all kind of ITX motherboards, even some MATX motherboards with sizes within 245 X 215mm.

Display Card: Not longer than 220mm. You need to check the Gigabyte's exact dimensions as well. I think that Gigabyte Model is a dual-slot GPU, but it has a length of 286 mm, which is too long to be able to fit.

If these specs are anything to go by.

GIGABYTE GTX 1070 G1 Gaming Specs

NVIDIA GP104, 1784 MHz, 1920 Cores, 120 TMUs, 64 ROPs, 8192 MB GDDR5, 2002 MHz, 256 bit

www.techpowerup.com



[AndrethePCbuilderguy]

According to the description, it says support for "dual slots full height display card", all kind of ITX motherboards, even some MATX motherboards with sizes within 245 X 215mm.

Display Card: Not longer than 220mm. You need to check the Gigabyte's exact dimensions as well. I think that Gigabyte Model is a dual-slot GPU, but it has a length of 286 mm, which is too long to be able to fit.

If these specs are anything to go by.

GIGABYTE GTX 1070 G1 Gaming Specs

NVIDIA GP104, 1784 MHz, 1920 Cores, 120 TMUs, 64 ROPs, 8192 MB GDDR5, 2002 MHz, 256 bit

www.techpowerup.com

How about the ZOTAC Nvidia GTX 1070 Ti mini?



[Deleted member 2731765]

How about the ZOTAC Nvidia GTX 1070 Ti mini?

Not sure. I'm getting conflicting information regarding the card's dimensions. The official Zotac page says the card's length is 211mm, whereas the TPU database says it is 221mm.

Not sure which of these data to trust. Maybe the Zotac page has a typo ? , but I'm not fully sure about this.

ZOTAC GeForce® GTX 1070 Ti Mini | ZOTAC

<p>The most advanced gaming GPU ever created. Powered by NVIDIA Pascal™ architecture, the ZOTAC GeForce GTX 1070 Ti Series is the world’s most advanced gaming GPU ever created. It strives for the excellence in power, speed, cooling, noise, gaming, and size with no compromise on performance. The...

www.zotac.com

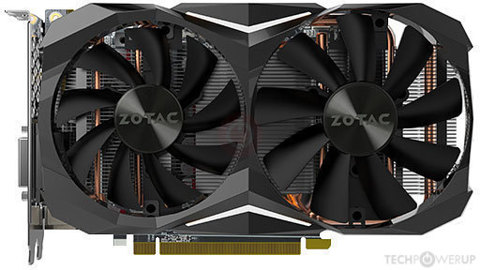

ZOTAC GTX 1070 Ti Mini Specs

NVIDIA GP104, 1683 MHz, 2432 Cores, 152 TMUs, 64 ROPs, 8192 MB GDDR5, 2002 MHz, 256 bit

www.techpowerup.com
