Graphics card is blocking motherboards front panel usb connector/hub?

[shafe88]

Anything I can do to fix the problem of my graphics card blocking my motherboards front panel usb connector/hub? My computer is an Acer Aspire TC-605 and the Graphics card is an MSI GTX 750 Ti. I managed to fix the hard drive issue by simply moving the hard drive to the 2.5 inch drive slot, but haven't been able to fix the front panel usb problem, I have the graphics card installed, but had to disconnect the front panel usb cable. The graphics so far is working perfect. My first thought was to just thro in a USB pci card with a front panel header, but afraid it might be too much my PSU.
Hear is my motherboard in my acer
http://www.ebay.com/itm/ACER-Inc-MS-7869-VER1-0-motherboard-/301363155279
Hear is my graphics card
https://www.newegg.com/Product/Product.aspx?Item=N82E16814127784&cm_re=msi_gtx_750_ti-_-14-127-784-_-Product



[Karadjgne]

If the issue is a matter of clearance, the USB standing straight out from the board, there is converters that'll make your USB connection 90° so that the wire is parallel under the gpu not sticking up into it.



[shafe88]

If the issue is a matter of clearance, the USB standing straight out from the board, there is converters that'll make your USB connection 90° so that the wire is parallel under the gpu not sticking up into it.

Amazon have any that's cheap? Looked and could only find one that's $14.99 plus shipping. Like to find one in the $5-$6 range.



[ko888]

Use a PCI-Express PCI-E 16X to 16X Riser Card Flexible Ribbon Extender Cable. Isn't there two empty slot plates at the bottom of the case where the graphics card can be moved to?

https://www.moddiy.com/products/PCI%252dExpress-PCI%252dE-16X-to-16X-Riser-Card-Flexible-Ribbon-Extender-Cable-w%7B47%7DMolex-%252b-Solid-Capacitor.html



[shafe88]

Use a PCI-Express PCI-E 16X to 16X Riser Card Flexible Ribbon Extender Cable. Isn't there two empty slot plates at the bottom of the case where the graphics card can be moved to?

https://www.moddiy.com/products/PCI%252dExpress-PCI%252dE-16X-to-16X-Riser-Card-Flexible-Ribbon-Extender-Cable-w%7B47%7DMolex-%252b-Solid-Capacitor.html

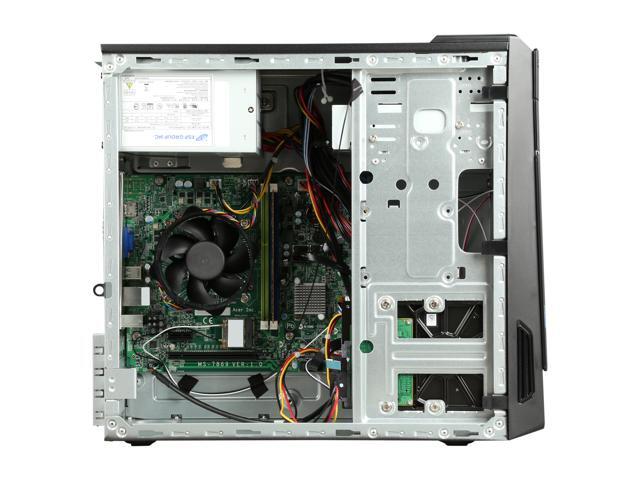

That may just work, but a little concerned the graphics card fan won't get enough air. Hear is an image with the side panel off.



[Karadjgne]

https://www.moddiy.com/products/90-Degree-Angled-USB-3.0-19%252dPin-20%252dPin-Internal-Header-Mini-Connector.html?gclid=CKDH9Nr41NICFUo6gQodTDACiA

Best I could find



[ko888]

Use a PCI-Express PCI-E 16X to 16X Riser Card Flexible Ribbon Extender Cable. Isn't there two empty slot plates at the bottom of the case where the graphics card can be moved to?

https://www.moddiy.com/products/PCI%252dExpress-PCI%252dE-16X-to-16X-Riser-Card-Flexible-Ribbon-Extender-Cable-w%7B47%7DMolex-%252b-Solid-Capacitor.html

That may just work, but a little concerned the graphics card fan won't get enough air. Hear is an image with the side panel off.

Your graphics card isn't a full double slot width card. It's more like a 1.5 slot width card based on the Newegg.com images you linked to. I don't think you'll have any problem with the card not getting enough cooling air.



[shafe88]

Use a PCI-Express PCI-E 16X to 16X Riser Card Flexible Ribbon Extender Cable. Isn't there two empty slot plates at the bottom of the case where the graphics card can be moved to?

https://www.moddiy.com/products/PCI%252dExpress-PCI%252dE-16X-to-16X-Riser-Card-Flexible-Ribbon-Extender-Cable-w%7B47%7DMolex-%252b-Solid-Capacitor.html

That may just work, but a little concerned the graphics card fan won't get enough air. Hear is an image with the side panel off.

Your graphics card isn't a full double slot width card. It's more like a 1.5 slot width card based on the Newegg.com images you linked to. I don't think you'll have any problem with the card not getting enough cooling air.

Upon further inspection and measuring, looks like it's a no go.
