[SOLVED] HDD/SSD On & Off switch

[Funkys]

Hello. 😊
I want to instal a on off switch for mine HDD that i use for storage..
It's kinda loud and i don't use it all the time..

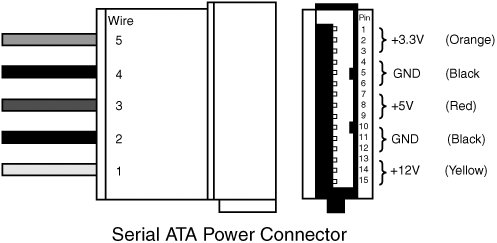

Which of the 5 wires should i cut and use switch on, if i use this SATA power cable (I will instal the on off switch on this cable: image)
( I know i can use external ssd or hdd, or use hot swap bays etc.. Also don't like windows drive sleep it still powers up time to time..)
I want to use internal. and use switch.. I already did some testing etc.. It seems middle red wire that uses +5 vdc gives power to drive, so i need to instal only one switch? Tested on ssd and 3.5 hdd
(So i don't damage drive and so on, i can simply power off/on PC if need be. Before using switch)



[rgd1101]

no.
you can't just cut power. put it on sleep.



[Funkys]

Switch will be used when pc is off..
Why not isn't it same as removing drive before turning on pc ?
I simply switch off instead of removing..



[Funkys]

For a fact i know it's posible. (Same thing as unplugging sata power cable)
I just need to know which wires need the switch. 1 wire or more..



[USAFRet]

Why reinvent the wheel?

Rear panel
https://www.amazon.com/Switch-protection-Selector，Controls-Intelligent-Control/dp/B07MJ8YTXV

Front panel
https://www.amazon.com/Kingwin-Optimized-Controls-Provide-Longevity/dp/B00TZR3E70



[Funkys]

Don't want to waste more $
I simply need a button aka switch, to disconnect the electricity from drive.
Seems i will have to sacrifice one old hdd for hard testing as noone can simply tell me. What wires need the switch.
For now red wire will have one (as it seems it powers the drive) Will see if it goes in flames xD Or should i add more switches on orange and yellow wires..
Simply wanted to know which pins give the power.
I was removing sata cable by hand before.. As i power up the hdd once a week.



[USAFRet]

I listed those things because they have FAR more protection circuitry than a simple on/off switch.

If you just switch the 5v line, the drive is still seeing the 12v line. And/or 3.3v line.

But....

Switch to turn on/off hard drive? Which wire to cut?

I want to have a switch on my computer to turn a hard drive on and off. Mainly for backing up my computer only when I want, then I would want the drive off when not using. So I would imagine I would need to route one of the five wires that use the sata power cable to the hard switch. Does the...

www.overclock.net



[USAFRet]

From the above link:
"Actually, I believe you would need to switch both the +5v and +12v leads; just use a DPST switch. "
"As another user says, 12 and 5 must be switched. "



[Funkys]

Yeah what i tought, ground(black) can stay connected collored wires need switch.



[Funkys]

What do you mean "protection circuitry"
If i flip the switch when the PC is Off.
(Off as i mean it's Off the power at all, i have the power strip with Red power switch so theres no power at all..)
Does it make any difference if the switch is between wires? I think no?



[USAFRet]

Does it make any difference if the switch is between wires?

What do you mean by "between wires'?



[Funkys]

As i cut wire and put switch in.. On/Off
If i don't use the switch when PC is on. It dosen't make any difference if there is or is not a switch there.



[USAFRet]

As i cut wire and put switch in.. On/Off
If i don't use the switch when PC is on. It dosen't make any difference if there is or is not a switch there.

HDD - 5v and 12v
SSD - 5v and 3.3v

Splices
Switches
extra wire

You have all this stuff already?

vs a $15 thing that does this out of the box.



[Funkys]

Yup.. thats why i din't want to waste more $ if i can simply use switch. + gota love DIY xDD



[USAFRet]

Yup.. thats why i din't want to waste more $ if i can simply use switch. + gota love DIY xDD

How much is your physical drive and data worth.

In any case....12v and 5v for the HDD. 5v and 3.3v for the SSDs.
A year from now, be sure you connect the new drive to the proper switch.

Good luck.



[Funkys]

instead of Splices i will solder them and use heat shrinks
1tb worth so meh..
