Question How to plug case SATA to PSU SATA cable ?

[SunnySky2024]

Hello,

I am trying to plug my case sata cable that powers my fan annd rgb hub into one of my psu sata cables. The thing is I don’t know which of the psu Asta cables I am supposed to plug. I am using the Corsair Rm 750e psu and my case is the montech air 903 max case. The psu provides two sata cables; one has three Sata ports attached which is connected to my psu and the other has 4 sata attached which right angled. I tried plugging the three Sata attached cable into the case sata but it won’t seem to go in. Are these two the data sata cable or the power sata cable?

https://imgur.com/a/QEDzqnp



[helpstar]

sata power cables can only be plugged in in the correct position.



[SunnySky2024]

sata power cables can only be plugged in in the correct position.

Do you mean aligning the two Sata cables properly? I line them properly but I feel resistance when I try to plug in. Do Sata cables usually clip together easily or am I using the wrong Sata cable from the two that came with my Corsair psu?



[thestryker]

Yes those are the correct cables and they should plug in without too much trouble so long as you're lining up the right angled side.



[SunnySky2024]

Yes those are the correct cables and they should plug in without too much trouble so long as you're lining up the right angled side.

Is there any difference between the two sata cables that Corsair Rme psu provides?



[thestryker]

Is there any difference between the two sata cables that Corsair Rme psu provides?

There's only one type of SATA power connector so the only differences there could be between them is the number of connectors on the cable.



[helpstar]

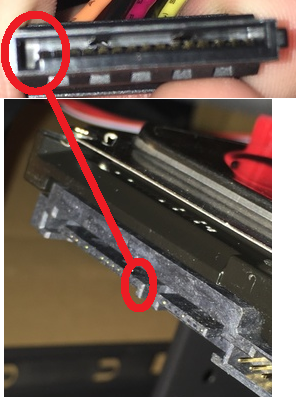

have a closer look at the connectors, it´s coded so you can only plug it it in one direction, not the other way around (@180°)
in the picture the left part of the example connector (SSD) is you case´s sata power connector
https://pbs-prod.linustechtips.com/monthly_2016_12/sata.png.aa6bc5fe6217cfcc3f22fa326f2cd2ae.png
