[SOLVED] I Just built a new system and I cannot boot to BIOS (no display) ?

[dwjackson]

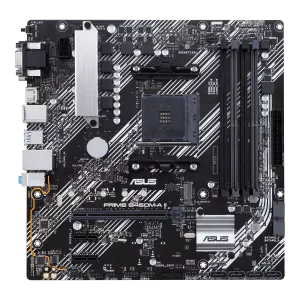

Motherboard: ASUS Prime B450M-A II AMD AM4 (Ryzen 5000, 3rd/2nd/1st Gen Ryzen Micro ATX Motherboard (128GB DDR4, 4400 O.C.), NVMe, ...
CPU: AMD Ryzen 5-1600X
CPU Cooler: Noctua NH-L9a-AM4, Premium Low-profile CPU Cooler for AMD AM4 (Brown)
GPU: Dell AMD Radeon R7 250 2GB Full Height DVI DisplayPort Video Card
or Nvidia Quadro K420 2GB Graphics Adapter 818244-001
RAM: PNY Anarchy 8GB DDR4 2666 PC4-21300 CL 16-16-18-35 1.2V DIMM x 2 =16GB
SSD: NVMe 128GB
PSU: Thermaltake Smart Series 500W SLI/CrossFire Ready Continuous Power ATX 12V V2.3 / EPS 12V 80 PLUS Certified Active PFC Power Supply Haswell Ready PS-SPD-0500NPCWUS-W

I have done a great deal of troubleshooting.
swapped all cables
switched memory
switched video cards
switched monitors

I have not flashed BIOS yet
Do I just need to purchase an AMD 5 "G" series CPU?
Where would you suggest I go from here?

The Asus Prime B450M-A II Micro ATX AM4 Motherboard supports the AMD Ryzen 5 1600X 3.6 GHz 6-Core Processor with BIOS version 0310. If the motherboard is using an older BIOS version, updating the BIOS will be necessary to support the CPU.

The motherboard box says:
This item: ASUS Prime B450M-A II AMD AM4 (Ryzen 5000, 3rd/2nd/1st Gen Ryzen Micro ATX Motherboard (128GB DDR4, 4400 O.C.), NVMe, HDMI 2.0b/DVI/D-Sub, USB 3.2 2, BIOS Flashback, and Aura Sync)

If I flash BIOS do I go with version 0310 or the latest version?

PRIME B450M-A II​

Product Support For
PRIME B450M-A II

BIOS & FIRMWARE​

BIOS
PRIME B450M-A II BIOS 4401
Version 4401
15.76 MB
2023/10/25



[rolli59]

You have the newest BIOS but many of those boards loose support for the first gen RYZEN CPU to gain compatibility with the later generations



[mdd1963]

That's a BINGO!



[dwjackson]

so the solution is not to flash BIOS but to purchase another CPU like Ryzen 5-5600G?
Am I correct with this assumption?



[rolli59]

so the solution is not to flash BIOS but to purchase another CPU like Ryzen 5-5600G?
Am I correct with this assumption?

Any 5000 series should work.



[dwjackson]

thank you very much
the CPU I am using is a 5-1600x is this not a 5000 series?
sorry for the question but I am not a Ryzen user before this build.



[dwjackson]

both pcpartpicker and pangoly say this motherboard combo is compatible
ASUS Prime B450M-A II AMD AM4 (Ryzen 5000, 3rd/2nd/1st Gen Ryzen Micro ATX Motherboard (128GB DDR4, 4400 O.C.), NVMe, ...
CPU: AMD Ryzen 5-1600X

"Phind AI" answered my question about Ryzen 5 1600X



[rolli59]

Ryzen 5 1600X is first generation, comparable 5000 series is Ryzen 5 5600X and considerably faster.
Here is an older thread about the BIOS issue https://forums.tomshardware.com/thr...ibility-after-ryzen-5000-bios-update.3696520/
I did not find any info on your board whether it has this problem but many of the B450 boards do.



[dwjackson]

thank you very much for your support
? how do I mark this solved



[dwjackson]

Ryzen 5 1600X is first generation, comparable 5000 series is Ryzen 5 5600X and considerably faster.
Here is an older thread about the BIOS issue https://forums.tomshardware.com/thr...ibility-after-ryzen-5000-bios-update.3696520/
I did not find any info on your board whether it has this problem but many of the B450 boards do.

thanks I purchased a Ryzen 5-5600g and everything is working OK now.
