10x EMIB on Sapphire Rapids

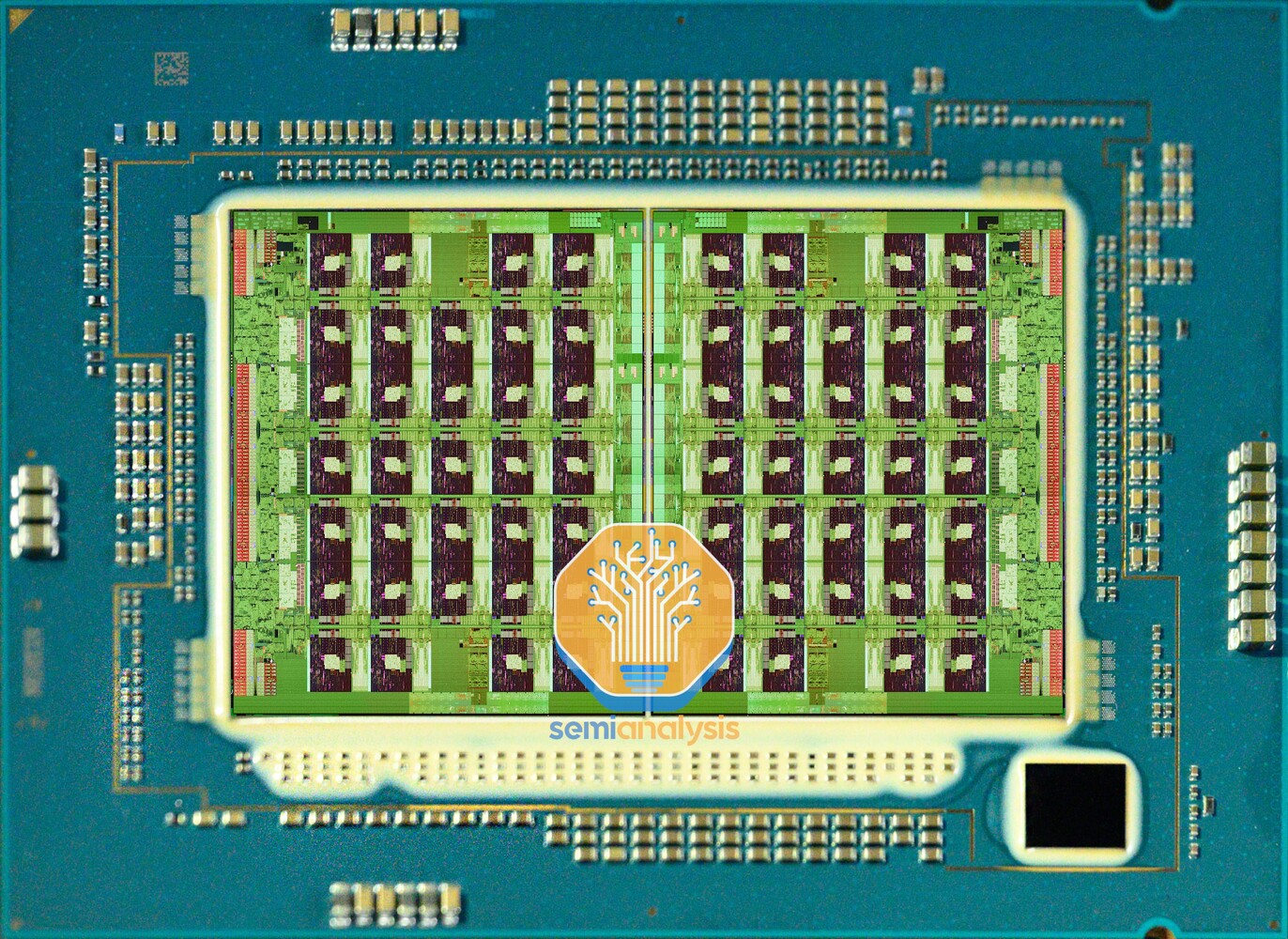

Sapphire Rapids is going to be using four tiles connected with 10 EMIB connections using a 55-micron connection pitch. Normally you might think that a 2x2 array of tiles would need equal EMIBs per tile-to-tile connection, so in this case with 2 EMIBs per connection, that would be eight – why is Intel quoting 10 here? That comes down to the way Sapphire Rapids is designed.
Because Intel wants SPR to look monolithic to every operating system, Intel has essentially cut its inter-core mesh horizontally and vertically. That way each connection through the EMIB is seen purely as the next step on the mesh. But Intel’s monolithic designs are not symmetric in either of those dimensions – usually features like the PCIe or QPI are on the edges, and not in the same place in every corner. Intel has told us that in Sapphire Rapids, this is similarly the case, and one dimension is using 3 EMIBs per connection while the other dimension is using 2 EMIBs per connection.
