[SOLVED] Is every 4 pin connection on the motherboard a RGB Header?

Is every 4 pin connection on the motherboard a RGB Header?

  • Yes, a 4 pin connector always is a "RGB HEADER" even if it is labled as "FAN-........"

    Votes: 0 0.0%
  • No, you need a 4 pin labled as "RGB HEADER" to get a RGB signal

    Votes: 1 33.3%
  • Its depending on your mainboard, with some mainboards it works, with others not so much

    Votes: 0 0.0%
  • I need a more detailed description to help properly

    Votes: 0 0.0%
  • I have the same question

    Votes: 1 33.3%
  • Idk the answer but wanted to click on something

    Votes: 2 66.7%

  • Total voters
    3
Mar 2, 2022
2
0
10
0
I bought some LED stripes and in the manual it says I shoud plug the stripes to a 4 pin connector labled as "RGB HEADER" but I just have some 4 pin connectors labled as "FRONT1-FAN" or "SYS-FAN".
My question is: Are these 4 pin connectors also RGB Headers or are these just for fans to connect to the motherboard (for power?)?

Every answer is appreciated :)

Fan headers are for providing power to fan motors and for regulating fan speed.
RGB header is for powering RGB illumination.
Those are different things.
RGB fan needs one connection for fan motor and another connection for lights.

This is fan header (for motor)

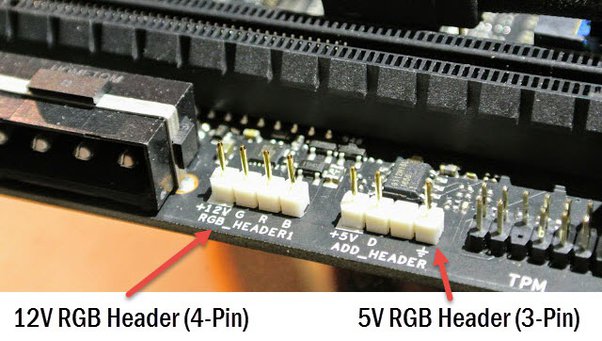

This is RGB header (for lights)


Reactions: Marty1324
Fan headers are for providing power to fan motors and for regulating fan speed.
RGB header is for powering RGB illumination.
Those are different things.
RGB fan needs one connection for fan motor and another connection for lights.

This is fan header (for motor)



This is RGB header (for lights)


Reactions: Marty1324
Mar 2, 2022
2
0
10
0
Fan headers are for providing power to fan motors and for regulating fan speed.
RGB header is for powering RGB illumination.
Those are different things.
RGB fan needs one connection for fan motor and another connection for lights.

This is fan header (for motor)



This is RGB header (for lights)

Thank you very much
