Build Advice Need help in CPU Air cooler installation

atinesh.s

Prominent
Nov 11, 2018
39
0
540
1

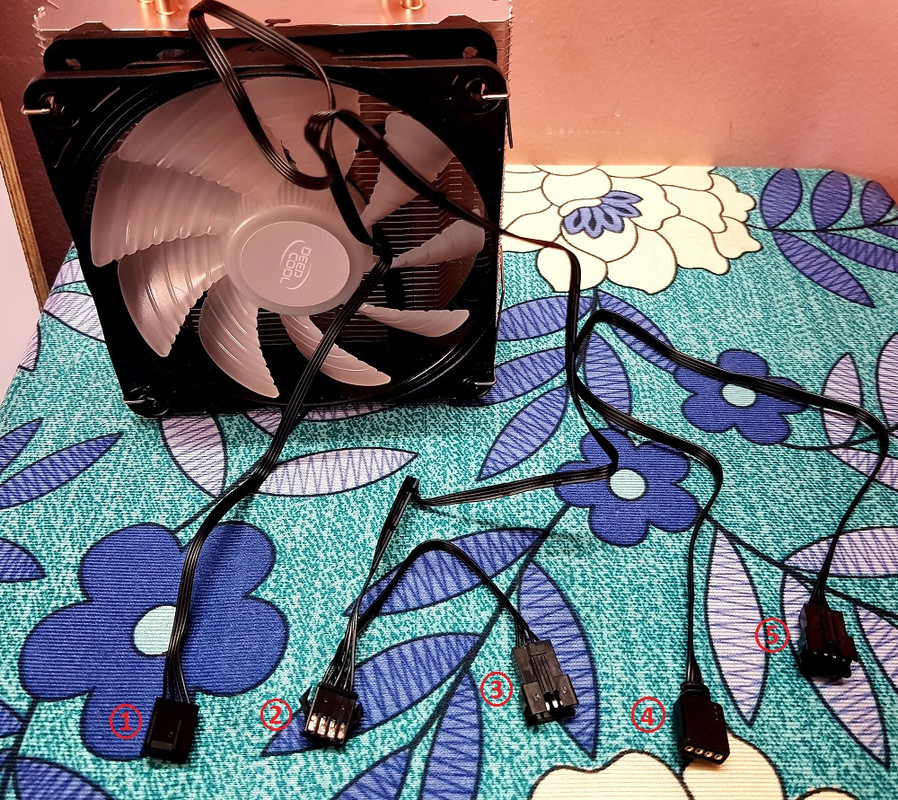

Hello guys, I hope everyone is doing well. I bought GAMMAXX GTE V2 CPU air cooler for my CPU, I was reading the instruction manual for installation but I got confused, I am not getting which wire to connect where.

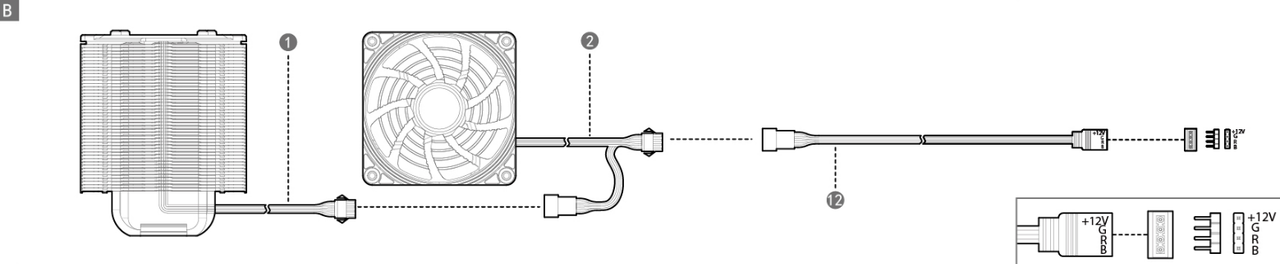

The instruction manual says I have to use below connection for GAMMAXX GTE V2, but it doesn’t match with wires and also I couldn’t find RGB header on my motherboard Asrock B360m Pro 4



Figure 1: Reference
Can anyone help me with wire connections



tennis2

Dignified
The RGB header on your mobo is on the bottom right corner. It matches the cable that comes off the fan.

I believe that diagram is showing a fan splitter cable to be used with an optional second fan on the heatsink for push-pull configuration. You can ignore that.
