Need help regarding RM750i

[XeonZephos]

I bought a RM750i and have installed the Corsair Link 4 software which I believe should allow me to view the current RPM and Voltage in and out of the powersupply as well as the wattage. I am having problems as the software is not displaying the PSU and only displays the Mobo, CPU, GPU, Storage and RAM.

All I want to do is for my PSU to be read by the software.

Thanks for the help and comment if you have any suggestions.

I went to the website to look at the manual and found this: http://imgur.com/eolyLJL

It says that I must connect the PSU to an internal USB header. I'm not quite sure as to whether my motherboard has one of these internal USB headers.

This is my motherboard: H170M-D3SH

Image of motherboard

-edit-

They should really add a section under hardware for Power Supplies



[atljsf]

the monitoring function on this model depends on a usb calbe connected from the psu to the mainboard or a digital link cable, have you connected those cables?



[XeonZephos]

the monitoring function on this model depends on a usb calbe connected from the psu to the mainboard or a digital link cable, have you connected those cables?

I figured that out but i'm not sure where to connect the PSU to the internal USB header on my motherboard. The main post shows my motherboard



[atljsf]

sorry, can't see the image you mention

if the usb cable goes to a usb pin header, a cable like this one

find in the motherboard the usb 5_6 or 7_8 header or front header or fornt panel usb 1 or 2, be sure to connect the red positive wire on the cable to the pin 1 or 2, but check mainboard to see if that information is correct, we don't want you to burn the usb ports or the psu



[XeonZephos]

My PSU came with this cable: http://imgur.com/a/tKg6r

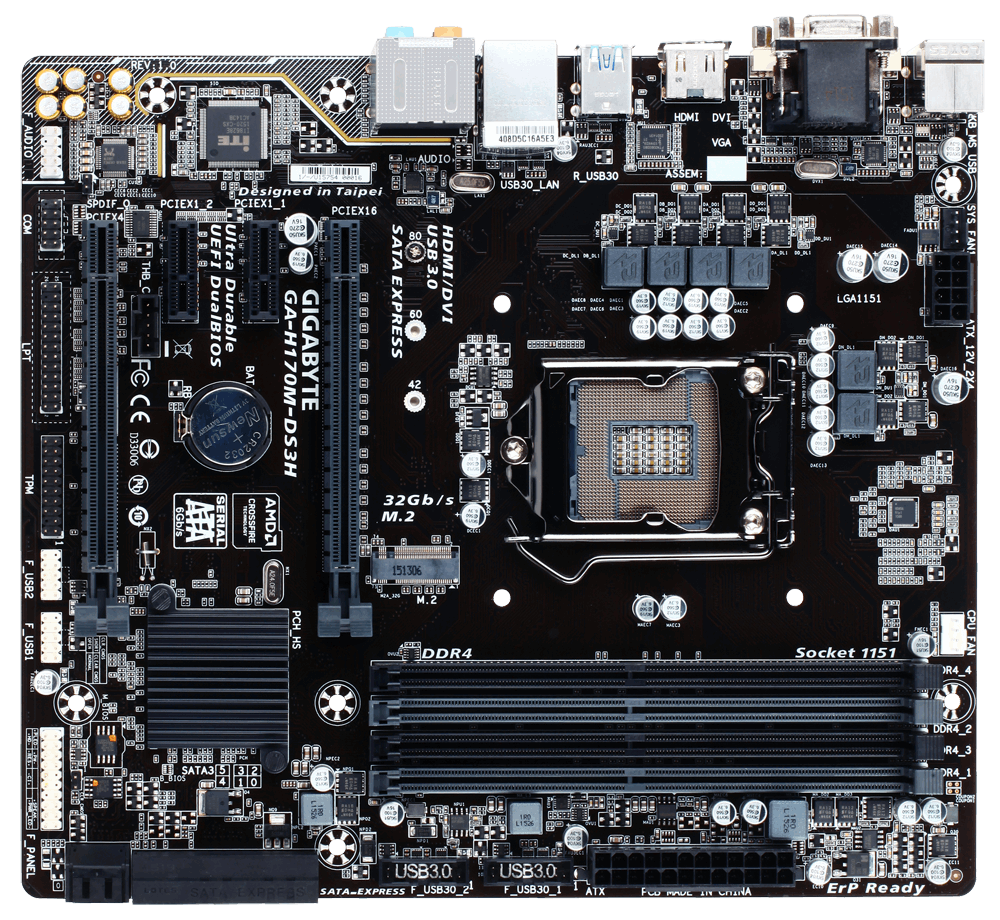

And this is my motherboard: http://www.gigabyte.com/fileupload/product/2/5585/20150922151446_src.png

If you are unable to open the link the motherboard name is: H170M-DS3H

I believe that I should connect this to the F_USB1 on the motherboard, please correct me if I'm wrong



[ko888]

Connect to F_USB1 or F_USB2 motherboard header.



[XeonZephos]

Connect to F_USB1 or F_USB2 motherboard header.

Thank you for the conformation i'll try that out!



[atljsf]

yes f usb 1, i can't open the psu cable

be sure to check the colors on cable and polarity of header in the mainboard manual



[ko888]

The connector is keyed so that it can only be inserted one way.



[atljsf]

sorry, can't see the image but if it is a 10 pin double usb connector, then there is only one way to connect it, yes, 9 pins and the 10 pin is blocked on the connector



[XeonZephos]

sorry, can't see the image but if it is a 10 pin double usb connector, then there is only one way to connect it, yes, 9 pins and the 10 pin is blocked on the connector

I've connected it and it now shows up on the corsair Link software however on the PSU it's blinking a GREEN and ORANGE repeatedly not sure if that's normal.

-edit-
nvm it means that there's data communication between the PSU and the USB controller.



[XeonZephos]

Great! Everything is working and I have made it so that the PSU fan is constantly on (lol). Many thanks for the help and best wishes!



[atljsf]

glad it worked for you
