Question New build. Thinking of using air cooling CPU + air flow advice.

andrefry

Honorable
May 17, 2017
15
0
10,510
0
I’m about to upgrade my rig with Gigabyte X570S AERO G mobs and Ryzen 5900x. I’ll be keeping the GPU’s ( 1080ti / 2070 super, both hybrids ), case ( Corsair Air 540 ), etc…
My two questions are -
1, Thinking about changing to air cooler but not sure if it will make system quieter, this is not my only reason though ?
2, If I go with air cooling, how should I setup air flow ? Currently I’m bringing air in through the top and back. Exhausting through the front. Also worth noting that this would free up the top so could add two more fans there.

Please note that in the photo my rig looks super dusty / neglected. We just had a load of plastering done in my home & everything got covered. It’s nice and clean now.



tennis2

Judicious
What are you using both GPUs to do?

Why not keep your 240mm AIO for the CPU?

Your case airflow is certainly....unique.

Are your GPU rads passively cooled?

Why not move the GPU rads down a slot and move the front open fan to the top of that stack. Set all front to intake.
CPU rad would exhaust
Rear fan exhaust.


andrefry

Honorable
May 17, 2017
15
0
10,510
0
Hi,
I mainly use my rig for 3D work with GPU render engines ( redshift, Octane, Cycles ) hence the multi GPU setup.

Yes, definitely a unique airflow. I’m sure it could be better and I’ll try out your suggestion with the new build.

Both GPU’s have fans, so not passive. They are currently pushing air out at the front.

So better to stick with AIO for the CPU ?


geofelt

Titan
Will the cpu or the gpu/s be the most heat generating component of your system?
If the gpu/s are most important, you would want their radiators to be taking in fresh air.
Then, the cpu should exhaust heat out the top.

If the cpu is more important, then continue as you are.

If you change to a top twin tower cooler like a noctua NH-D15, you can expect it to run quieter.
The cooling should be similar to what you have now.

I can't help but thinking that you would do well with a bigger and better ventilated case.


andrefry

Honorable
May 17, 2017
15
0
10,510
0
GPU's definitely the most important. Maybe time for a case upgrade before new build ?
Any case recommendations would be appreciated. I’ll be doing some research this end for sure. Cheers


Karadjgne

Titan
Ambassador
I've seen plenty of reverse airflow pc's, works the same as standard orientation, only requires flow to be correct. Which it isn't in this case.

The top intakes will overpower the rear intake, forcing air straight down, and then the front 3 exhausts are trying to snatch that sideways. It's not efficient. Heat and air don't like changing directions. None of which hits the gpu fans, just the top plate and bounces off.

My suggestion would be to feed the gpu. Flip every fan. The lower Noctua will feed the gpus plenty and the rads will take care of themselves. Whether or not you use the rear exhaust at all is debatable, you don't have a tower cooler, so there's actually no need for that fan. Warm case air will naturally go to the top of the case, the top exhaust fans will just help that process.


geofelt

Titan
It is not clear to me what it takes to mount the rads for your graphics cards.
It looks like about the space for a 120mm fan.
Look at a cube type case which can have perhaps 4 front 120mm intakes.
Two for your gpu radiators, and 2 more to feed an air cooler.
Anidees makes some interesting such cases.

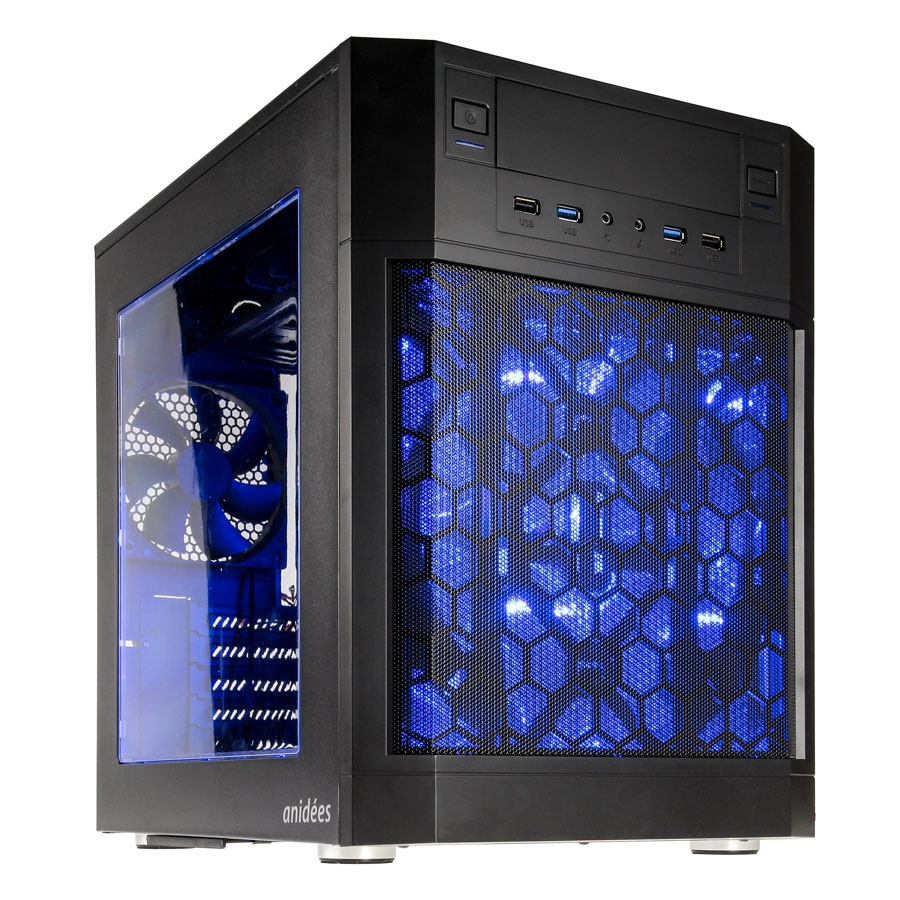

Here is the A17:
There are others.
They seem to want to sell RGB bling, but I would turn that off if you do not lie it.


andrefry

Honorable
May 17, 2017
15
0
10,510
0
Some great advice here, Cheers!
The Anidees looks great but not available here in the UK. I’ve looked into some cube cases but most seem to be the same’ish setup as my current one but I'll keep looking around.
Would a large tower case help with some fans on the bottom ? The Phanteks Enthoo Pro 2 looks massive but lots of fan options, maybe overkill ?


Karadjgne

Titan
Ambassador
Every case design has its own set of challenges concerning airflow. MITX has a lack of fan options, and little space for airflow. MATX / ATX are more versatile, but Full ATX towers are the opposite. There's simply a massive amount of volume and distance to move the air, and that requires more or stronger airflow fans.

Optimizing airflow is more about the fan, the fan size, fan placement and orientation. I ran a Fractal Design R5 with the door closed for years with nothing more than 2 case fans and an Aio. No rear exhaust. Just 2 on top and aio intake, or switched. Air in front, out the top, smooth flow.

Having more fans, badly placed fans, counter productive fans can easily be worse than better.
View: https://youtu.be/OupiPZybyBE
Case airflow is all about understanding Cause and Affect. What is causing the heat and what is affecting it and the results.

Your case is most likely situated near a wall or cabinet, a solid surface. Your gpus are liquid cooled mostly, but do also use a blower fan. That exits heat out the rear of the case, where it gets channeled up the wall, to get sucked back into the case by that rear intake.

The rads are a diffuser. They really don't stop air volume, they block air pressure. Put your hand 18" away from your face, take a deep breath, open mouth wide and blow out. No breeze. Purse your lips and do the same, you've moved the same lung full of air, but you feel the air on your hand. Having the fans in front of the rad, push, has the same affect. Air doesn't move anywhere, sits in the front of the case, getting warmer.

You have fans. The 120 rads temp controlled by gpu. 240 rad controlled by cpu. The rear intake and front exhaust controlled by the motherboard case sensor. As you dump in all that warm air, that affects the motherboard sensor, which responds by cranking up the rpm of the case fans.

You don't have a case issue, what you have is a placement issue. Your pc fans are fighting themselves instead of helping. And that's creating more noise as a result.

Put the 120 as intake, pull. That alleviates pressure dispersion by the rads and provides air to the gpus. Put the rear as exhaust so you aren't sucking heat back into the case. Top fans as exhaust push (under the rad) to provide lower pressure up top and promote flow.

Last edited:

Karadjgne

Titan
Ambassador
Oh, lol forgot 1 thing about fans. Depends on what they are. 3 pin fans are analog, generally they are only controlled by 7-12v, some may go as low as 5v, which equates to @ 60% or 40% minimum speeds. That can kind of put the ringer in the noise department when a 1500rpm fan only has a range of 900-1500 or 600-1500 rpm. And that's getting noisy.

4pin are pwm, digital fans. They'll drop as low as 15% (ish) and that can make a huge difference vs analog since fan curves can be set far lower. You don't need 100% fans when the case is only 40°C etc.

So playing around with fan curve settings can reduce audible stress levels, and really not impact airflow and resultant temps vs max speeds.
