Build Advice PC build for gaming, game development, and apps ?

[effortcode]

Hello Everyone,

first of all I really appreciate what you are doing here, giving free advice and spending time on it.
I am from Europe but I am totally fine with using this pcpartpicker (it is awesome).

I would like to build a PC mostly for gaming/game dev with good cpu as it will be suitable as a work station and maybe some video editing here and there.

Here is my suggested build:
https://pcpartpicker.com/list/rss9Cd

I would like to keep the CPU - i7 13700k and GPU RTX 4070 (but here I would like to know which type and manufacturer are best).

I would really need to suggest a motherboard suitable for this build.
Also I will take any suggestions and all of the other parts if there is better option for the money and I am very open to any case suggestions.

Thank you!



[Lucky_SLS]

Could you tell us the country and your budget? and maybe the website you use to see the parts?

For productivity and dev, it might be best to go for Ryzen 7900 or 7950X. and the 4070 with 12gb vram might not be the best choice.

I imagine you would be working with high res unoptimised textures a lot as a dev, it helps to have a GPU with lots of VRAM.



[effortcode]

Hi, thank you for the answer.
The website is https://www.alza.cz/EN/components/18852654.htm. (its Czech)

Total budget around 1700 - 2000 eur.

What other than 4070 do you suggest?

Thank you



[Lucky_SLS]

I would suggest something like this:

16 core cpu for video editing or Intel 14700k for quick sync

big and quiet air cooler

64gb high speed ram

Solid mobo with beefy VRMs (unfortunatly no PCIE 5.0 SSD supp, you have to get the Asrock B650E riptide for that)

2 tb pcie 4.0 ssd for work drive

1tb os and program drive

7800XT 16gb

GPU Benchmarks and Hierarchy 2023: Graphics Cards Ranked

We've run hundreds of GPU benchmarks on Nvidia, AMD, and Intel graphics cards and ranked them in our comprehensive hierarchy.

www.tomshardware.com

Hardware Recommendations

Our workstations for DaVinci Resolve are tested and optimized to give you the best performance and reliability. View our hardware recommendations.

www.pugetsystems.com

Hardware Recommendations

Our workstations for Adobe Premiere Pro are tested and optimized to give you the best performance and reliability. View our hardware recommendations.

www.pugetsystems.com

ATX 3.0 psu with 16 pin power connnector

good airflow case with included fans.

PCPartPicker Part List

CPU: AMD Ryzen 9 7950X 4.5 GHz 16-Core Processor (14990.00Kč @ Alza)
CPU Cooler: Deepcool AK620 68.99 CFM CPU Cooler (1299.00Kč @ Alza)
Motherboard: MSI MAG B650 TOMAHAWK WIFI ATX AM5 Motherboard (5199.00Kč @ Alza)
Memory: Corsair Vengeance 64 GB (2 x 32 GB) DDR5-6200 CL32 Memory (5879.00Kč @ Alza)
Storage: ADATA Legend 800 1 TB M.2-2280 PCIe 4.0 X4 NVME Solid State Drive (1289.00Kč @ Alza)
Storage: Kingston KC3000 2.048 TB M.2-2280 PCIe 4.0 X4 NVME Solid State Drive (2599.00Kč @ Alza)
Video Card: ASRock Challenger OC Radeon RX 7800 XT 16 GB Video Card (14590.00Kč @ Alza)
Case: Montech AIR 1000 LITE ATX Mid Tower Case (1299.00Kč @ Alza)
Power Supply: MSI MAG A850GL PCIE5 850 W 80+ Gold Certified Fully Modular ATX Power Supply (2899.00Kč @ Alza)
Total: 50043.00Kč
Prices include shipping, taxes, and discounts when available
Generated by PCPartPicker 2023-10-30 16:15 CET+0100


Intel DDR4 based system

DDR5 vs DDR4: Is It Time To Upgrade Your RAM?

Welcome to the new era of DDR5 RAM

www.tomshardware.com

PCPartPicker Part List

CPU: Intel Core i7-14700K 3.4 GHz 20-Core Processor (11890.00Kč @ Alza)
CPU Cooler: Deepcool AK620 68.99 CFM CPU Cooler (1299.00Kč @ Alza)
Motherboard: MSI MAG Z790 TOMAHAWK WIFI DDR4 ATX LGA1700 Motherboard (5699.00Kč @ Alza)
Memory: Patriot Viper 4 Blackout 64 GB (2 x 32 GB) DDR4-3200 CL16 Memory (3399.00Kč @ Alza)
Storage: ADATA Legend 800 1 TB M.2-2280 PCIe 4.0 X4 NVME Solid State Drive (1289.00Kč @ Alza)
Storage: Kingston KC3000 2.048 TB M.2-2280 PCIe 4.0 X4 NVME Solid State Drive (2599.00Kč @ Alza)
Video Card: ASRock Challenger OC Radeon RX 7800 XT 16 GB Video Card (14590.00Kč @ Alza)
Case: Montech AIR 1000 LITE ATX Mid Tower Case (1299.00Kč @ Alza)
Power Supply: MSI MAG A850GL PCIE5 850 W 80+ Gold Certified Fully Modular ATX Power Supply (2899.00Kč @ Alza)
Total: 44963.00Kč
Prices include shipping, taxes, and discounts when available
Generated by PCPartPicker 2023-10-30 16:56 CET+0100



[helper800]

For the game development, do you need to test or implement Nvidia specific features such as DLSS, Raytracing, et cetera?



[effortcode]

Lucky:

Thank you so much! I think I will go for the second build with RX7800 and Intel i7.
Could you maybe suggest another Mobo with DDR5 support, or do you think it is a few year before it will be worth it?
Also as I am living with my life partner and she is so concerned about the design, it this Case good in cooling and suitable for the whole build? That is still most important for me.

For the game development, do you need to test or implement Nvidia specific features such as DLSS, Raytracing, et cetera?

Great question. It is more like hobby not my real job so I do not think I need to implement such a specific features.

Thank you



[Lucky_SLS]

The FD North is a great case! I think you might have to get some extra fans.

PCPartPicker Part List

CPU: Intel Core i7-14700K 3.4 GHz 20-Core Processor (11890.00Kč @ Alza)
CPU Cooler: Deepcool AK620 68.99 CFM CPU Cooler (1299.00Kč @ Alza)
Motherboard: MSI PRO Z790-A WIFI ATX LGA1700 Motherboard (6399.00Kč @ Alza)
Memory: Kingston FURY Beast 64 GB (2 x 32 GB) DDR5-5600 CL36 Memory (5219.00Kč @ Alza)
Storage: ADATA Legend 800 1 TB M.2-2280 PCIe 4.0 X4 NVME Solid State Drive (1289.00Kč @ Alza)
Storage: Kingston KC3000 2.048 TB M.2-2280 PCIe 4.0 X4 NVME Solid State Drive (2599.00Kč @ Alza)
Video Card: ASRock Challenger OC Radeon RX 7800 XT 16 GB Video Card (14590.00Kč @ Alza)
Case: Deepcool CL500 ATX Mid Tower Case (2247.00Kč @ Alza)
Power Supply: MSI MAG A850GL PCIE5 850 W 80+ Gold Certified Fully Modular ATX Power Supply (2899.00Kč @ Alza)
Case Fan: ARCTIC P12 56.3 CFM 120 mm Fan (139.00Kč @ Alza)
Case Fan: ARCTIC P12 56.3 CFM 120 mm Fan (139.00Kč @ Alza)
Case Fan: ARCTIC P12 56.3 CFM 120 mm Fan (139.00Kč @ Alza)
Total: 48848.00Kč
Prices include shipping, taxes, and discounts when available
Generated by PCPartPicker 2023-10-31 12:09 CET+0100



[Why_Me]

@effortcode no need for an SSD that comes with a heatsink. Almost all new boards these days include a M.2 heatsink for your SSD. Add a graphics card such as that RTX 4070 and you're good to go ^^

I didn't price compare with these three sites so you probably want to do that. CZC has a PC configurator on their website that you might find helpful.
https://www.czc.cz/
https://www.mall.cz/

https://www.alza.cz/

DDR4 board and RAM.

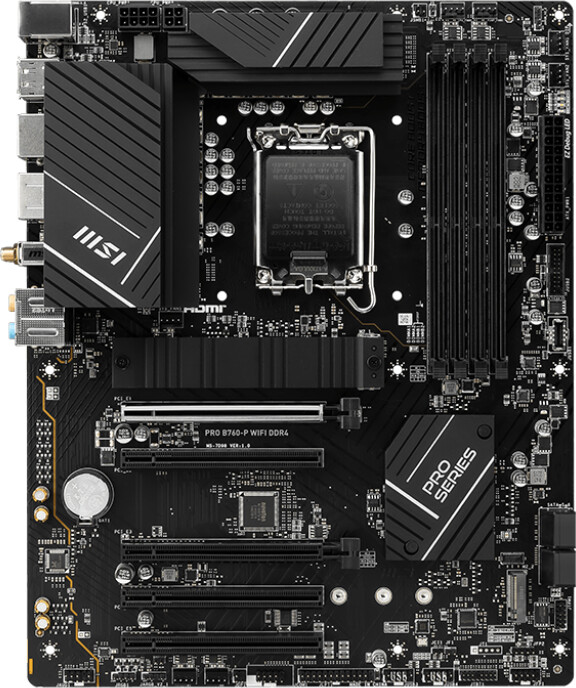

MSI PRO B760-P WIFI DDR4 - Intel B760

Základní deska, socket Intel 1700, čipset Intel B760, podpora procesorů Intel 13. a 12. generace Core/Pentium Gold/Celeron; podpora procesorů s integrovaným grafickým čipem, 4x DDR4 až 3200 MHz (5333+ MHz OC), maximálně 128 GB; sloty: 2x PCIe 4.0 x16, 3x PCIe 3.0 x16 (x1); konektory: 4x SATA...

www.czc.cz

MSI PRO B760-P WIFI DDR4 3 634 Kč

PRO B760-P WIFI DDR4

PRO series motherboards tuned for better performance by 12 Duet Rail Power System, DDR4 memory with Memory Boost, Lightning Gen4 PCIe, Extended Heatsink, M.2 Shield Frozr, 2.5G LAN, Front Type-C

www.msi.com

https://www.czc.cz/kingston-fury-beast-black-32gb-2x16gb-ddr4-3200-cl16_2/329076/produkt
Kingston Fury Beast DDR4-3200 32GB (2x16GB) CL16 1 734 Kč

DDR5 board and RAM.

https://www.czc.cz/msi-b760-gaming-plus-wifi-intel-b760/381830/produkt
MSI B760 GAMING PLUS WIFI CZK 4,130

MSI B760 GAMING PLUS WIFI, ATX - Intel 13th/12th Gen - 12 Phases, DDR5, PCIe 4.0, 2.5G LAN, Wi-Fi 6E

B760 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.

www.msi.com

https://www.czc.cz/g-skill-ripjaws-s5-32gb-2x16gb-ddr5-6000-cl30-cerna/357520/produkt
G.Skill Ripjaws S5 DDR5-6000 32GB (2x16GB) CL30 2 899 Kč

With integrated graphics.
https://www.czc.cz/intel-core-i7-13700/364347/produkt
Intel Core i7-13700 11 087 Kč

Intel® Core™ i7-13700 Processor (30M Cache, up to 5.20 GHz) - Product Specifications | Intel

Intel® Core™ i7-13700 Processor (30M Cache, up to 5.20 GHz) quick reference with specifications, features, and technologies.

www.intel.com

Without integrated graphics
https://www.czc.cz/intel-core-i7-13700f/364348/produkt
Intel Core i7-13700F 10,349 CZK

Intel® Core™ i7-13700F Processor (30M Cache, up to 5.20 GHz) - Product Specifications | Intel

Intel® Core™ i7-13700F Processor (30M Cache, up to 5.20 GHz) quick reference with specifications, features, and technologies.

www.intel.com

https://www.alza.cz/deepcool-ak620-d7095674.htm

DEEPCOOL AK620 Dual Tower CPU Cooler 1 299,-

https://www.deepcool.com/products/C...formance-CPU-Cooler-1700-AM5/2021/13067.shtml

https://www.czc.cz/samsung-ssd-980-pro-m-2-2tb/308999/produkt
Samsung 980 PRO 2TB M.2 SSD 3 199 Kč

ATX 3.0 PCIe 5.0 Power Supply
https://www.czc.cz/msi-mag-a750gl-pcie5-750w/379821/produkt
MSI MAG A750GL PCIE5 750W 80+ Gold ATX 3.0 Power Supply 2 817 Kč

MAG A750GL PCIE5 | Power Supply | Overflow With Power

The MAG A750GL PCIE5 power supply is designed to be ready for GeForce RTX^TM 4070 Ti and other graphics cards thanks to its ATX 3.0 and PCIe 5.0 support.

www.msi.com

Rear exhaust fan for that case down below.
https://www.czc.cz/arctic-p12-pwm-pst-120mm-cerny/287194/produkt
Arctic P12 PWM PST 120mm 4-Pin Case Fan (ACFAN00120A) 159 Kč

https://www.czc.cz/fractal-design-focus-2-black-tg-clear-tint/354572/produkt
Fractal Design Focus 2 ATX Mid Tower Case 1 879 Kč

https://www.fractal-design.com/products/cases/focus/focus-2/black-tg-clear-tint/

View: https://www.youtube.com/watch?v=tIG4vFQbDn4



[Lucky_SLS]

If it's for gaming. A non k cpu is fine. But for high cpu usage tasks like video editing, I would suggest the k sku with z790 for solid vrm and higher boost clocks.



[Why_Me]

Can't find a review on the i7 13700 but here's a review of the i7 12700 vs the unlocked 12 gen i7 with benchmarks.

Intel Core i7-12700 + Intel B660 Review

Today we have a combo review of all-new Intel hardware, our first look at the affordable Intel B660 platform, the non-K Core i7-12700 and Intel's latest box...

www.techspot.com



[Lucky_SLS]

what i mean to say is that for productivity sessions with premier pro and davinci resolve, with weak VRMs and especially with unlocked boost/turbo duration, the power usage would be 300W. the temps again would be close to 100c. So with that in mind, its better to have a Z790 board. otherwise, it would throttle to base clock speeds and hamper performance.

gaming should not be an issue as shown in the graphs above.

View: https://www.youtube.com/watch?v=8KKE-7BzB_M



[Why_Me]

what i mean to say is that for productivity sessions with premier pro and davinci resolve, with weak VRMs and especially with unlocked boost/turbo duration, the power usage would be 300W. the temps again would be close to 100c. So with that in mind, its better to have a Z790 board. otherwise, it would throttle to base clock speeds and hamper performance.

gaming should not be an issue as shown in the graphs above.

View: https://www.youtube.com/watch?v=8KKE-7BzB_M

Z790 board for an unlocked i7 which means spending more money. Pair either of those MSI boards I posted which are 12 phase boards with a locked i7 and save money while getting near identical performance.



[Lucky_SLS]

correct me if i am wrong, B760 boards wont allow unlocked turbo durations. there is no non k 14700 till now and the reason i suggested the 14700 is cuz of the extra E cores compared to the 13700 non k.

So limited boost clock duration with power throttling is the main reason i suggest Z690 and 14700k.



[effortcode]

@Lucky_SLS
I will go for your last DDR5 build.

I will change the storage ADATA legend for Samsung 980 PRO 1 TB and go for the FD North Case.
Is there any reason I should think about going for the AMD Ryzen 9 7950X ? (other thank financial)

Also @Why_Me thank you for the suggestion for czc, but I will go for alza as I have much better customer experience there. (They will both build and test the pc)

Thank you



[Lucky_SLS]

the ryzen 7950X is definitely the heavy lifter but intel holds an advantage with its quick sync. if your tasks put the cpu utilisation at 100% more often, then go for ryzen.

pugeot systems summed up intel's quick sync vs ryzen perfectly in their article.

if you intend to load the workfiles from the 980 pro 1tb and export the processed files to the 2tb, then a 980 pro makes sense. if its just to load up OS and the programs, the 980 pro gives u little to no benefit.
