Question Question about a short in PCI-e power connector ?

Apr 10, 2022
4
1
15
0
Good day, I bought some U-shaped PCI-e power connectors, and decided to check the pins for shorts with a multimeter on diode/continuity test setting.



So from pin 4 to pin 8 they all are connected and shorting and from pin1 to 3 are also connected and shorting?
Is this normal for these connectors or are they defective?
I am aware that from 5 to 8 are ground and ground is connected and it is okay, but how does pin4 - sense work?
Shouldn't the +12V pins be isolated and not connected?

Last edited:

Aeacus

Champion
Ambassador
So from pin 4 to pin 8 they all are connected and shorting and from pin1 to 3 are also connected and shorting?
Pins 1-3 are +12V and pins 4-8 are ground.

Now, with +12V pins, unless the PSU that you use, has multiple +12V rails, all of the +12V pins are connected to single rail, hence the connection between all of them. And on PSUs that do have multiple +12V rails, none of the multiple rails are within the same power cable. Instead, separate +12V rails expand out of the PSU in separate power cables.

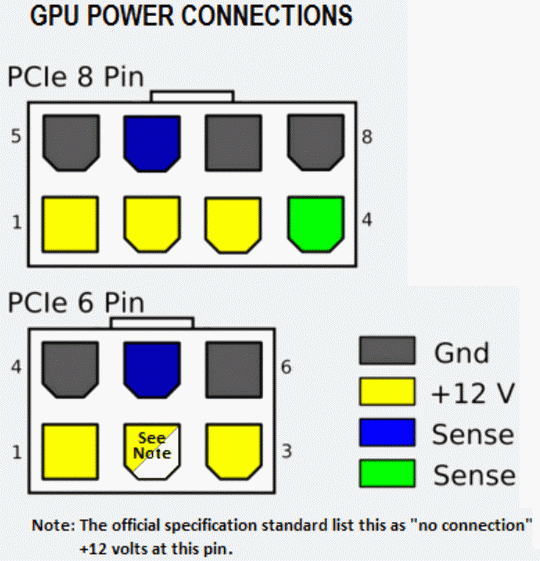

About the "sense" pin, care to give the source from where you got that pinout image?

Reactions: elfacool
Apr 10, 2022
4
1
15
0
Pins 1-3 are +12V and pins 4-8 are ground.

Now, with +12V pins, unless the PSU that you use, has multiple +12V rails, all of the +12V pins are connected to single rail, hence the connection between all of them. And on PSUs that do have multiple +12V rails, none of the multiple rails are within the same power cable. Instead, separate +12V rails expand out of the PSU in separate power cables.

About the "sense" pin, care to give the source from where did you got that pinout image?
Source of image: http://nerdralph.blogspot.com/2016/03/hacking-gpu-pcie-power-connections.html
So everything should be good?


Aeacus

Champion
Ambassador
Reactions: elfacool
