[SOLVED] Samsung 970 Evo File Transfer Speeds Slow(40MB/s) in Windows

Dec 16, 2020
6
0
10
0
System Specs:
Ryzen 3700x
MSI MAG B550 MORTAR
32GB Trident Z 3200
500GB Samsung 970 EVO NVME in the fast M.2 slot
Seagate Barracuda 8TB SATA

I installed the drivers from Samsung's site and it still didn't help. I booted into Ubuntu and the transfer speeds are much better in the same scenarios, around 110MB/s, although I still think this is below spec of 300MB/s for sustained writes.

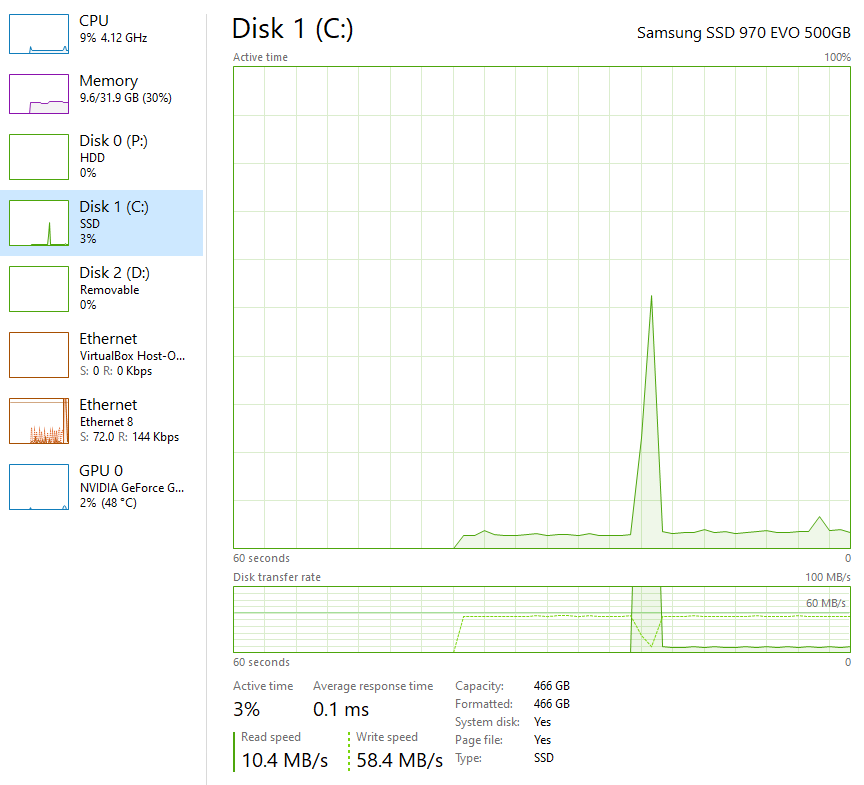

When transferring video files(~10GB) from HDD to SDD, my transfer speeds are hovering around 40MBps.

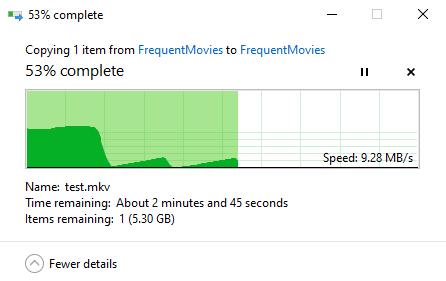

When copying the file from the SSD onto itself, I am still averaging around 40MB/s but it looks like a saw tooth:


Would appreciate any insights.


USAFRet

Titan
Moderator
Mar 16, 2013
140,126
7,635
174,040
21,597
Yes, it was a clone from a different system. It was a Kingston SSDNow V300 III 240GB SSD. I'd prefer not having to do a clean install, but if you think that would fix it I would try it. What would be the reason for needing a clean install?
This is/was the OS drive in both systems?

If so, yes...a fresh install is strongly recommended.

Moving an installed OS between systems has 3 possible outcomes.
  1. It works just fine
  2. It fails completely
  3. It works, but you're chasing issues for weeks.
I'd expect this is #3.
And a clone is no different than trying to move the physical drive.


Darkbreeze

Retired Mod
Have you installed Samsung Magician and made sure you have the MOST recent firmware version installed? Which slot, EXACTLY, do you have the M.2 drive installed in?

The "fast" slot tells us nothing. I've seen dozens of cases where somebody THOUGHT they had it installed in the correct slot, but it wasn't, or it was installed in a slot that shares bandwidth with something else. Probably want to be pretty sure about that.

You also don't make any mention of WHICH version of Windows you are running, which could also be important. Additionally, how much FREE space is available on this drive AND on the HDD, because booting from an Ubuntu disk almost tells you nothing if the problems are due to a lack of space on the drives involved since that OS would not be running from those drives.

Has it been this way since the start, or is this a new development that was NOT happening before? Have you run disk cleanup and TRIM operations on the SSD, and defragmented the HDD?


USAFRet

Titan
Moderator
Mar 16, 2013
140,126
7,635
174,040
21,597
"from HDD to SDD "
Speed is dictated by the slowest device in the chain.
Here, the HDD. Doesn't matter how fast the SSD can write. The HDD can only feed at its own rate.


"copying the file from the SSD onto itself, "
And that will be slow as well. You're asking the drive to read and write at the same time.
That sawtooth is alternating between read and write.

The only time you see at or near the advertised speeds is doing a benchmark, or transferring between two similar drives.
What does Samsung Magician show for performance?

Dec 16, 2020
6
0
10
0
Thanks for the replies. Here are some answers to the questions asked:
  1. Samsung Magician says it is the latest driver
  2. The SSD is installed in the top M2_1 slot which is connected to the CPU, not the chipset. It is PCI3/4 4x
  3. I am running Windows 10 Home Edition
  4. The drive has 319GB used of 465GB
  5. TRIM is on the SSD and I have done the windows optimize, HDD is 0% fragmented
  6. I have transferred files the same files from the HDD to a network drive and it averaged above 100MB/s, so the bottleneck seems to be the SSD
  7. Not sure if this is a new issue, this is a new drive. I used clonezilla to copy a disk image for a different SSD
  8. Benchmarks for the drives seem normal, see below


USAFRet

Titan
Moderator
Mar 16, 2013
140,126
7,635
174,040
21,597
Those Sequential benchmark numbers in Magician are right on track with published numbers from Samsung.

  • Sequential Read Speed
  • Max. 3,500 MB/s
  • Sequential Write Speed
  • Max. 2,500 MB/s



As noted in Magician, the temperature on that is a bit high.

Dec 16, 2020
6
0
10
0
Yes, it was a clone from a different system. It was a Kingston SSDNow V300 III 240GB SSD. I'd prefer not having to do a clean install, but if you think that would fix it I would try it. What would be the reason for needing a clean install?


USAFRet

Titan
Moderator
Mar 16, 2013
140,126
7,635
174,040
21,597
Yes, it was a clone from a different system. It was a Kingston SSDNow V300 III 240GB SSD. I'd prefer not having to do a clean install, but if you think that would fix it I would try it. What would be the reason for needing a clean install?
This is/was the OS drive in both systems?

If so, yes...a fresh install is strongly recommended.

Moving an installed OS between systems has 3 possible outcomes.
  1. It works just fine
  2. It fails completely
  3. It works, but you're chasing issues for weeks.
I'd expect this is #3.
And a clone is no different than trying to move the physical drive.


Darkbreeze

Retired Mod
Yes, it was a clone from a different system. It was a Kingston SSDNow V300 III 240GB SSD. I'd prefer not having to do a clean install, but if you think that would fix it I would try it. What would be the reason for needing a clean install?

Because running an OS that was used for a different platform, in my experience, almost always results in problems. There are some cases where people have had success with reusing a Windows installation that came from a different machine or with different hardware, but I've mostly seen that not be successful. Time after time after time. If you change platforms, motherboard, CPU, etc., a clean install should be done as a matter of course IMO.

Is it convenient? No, it isn't. Is it how it should be done? Yes, almost always.


Darkbreeze

Retired Mod
There is a specific WAY in which the clean install should be done as well. Primarily, the BIGGEST factor is making sure you disconnect ALL drives except the drive you are installing Windows TO and the drive you are installing Windows FROM. So basically, disconnect your HDD, leave the SSD connected, and follow these instructions, and you should end up with an accurate installation.


Dec 16, 2020
6
0
10
0
Thanks for all the help. I did a clean install of Windows and now copying the same file from the ssd onto itself transfers at 2GB/s and from the HDD is 110MB/s. So looks like everything is fixed now, hopefully it stays that way. Thanks again.
