Usb bluetooth adapter with 3.5mm aux female to female usb 2.0

[venky srinivas]

Hiii i am thinking to connect usb bluetooth adapter to a cable with 3.5mm aux to female usb 2.0 and this 3.5mm aux will go into my dvd through mp3 link port.
So basically i want to turn dvd into wireless using this cable and a usb bluetooth adapter will it work...?

3.5mm to female usb pic

https://encrypted-tbn3.gstatic.com/images?q=tbn:ANd9GcTF9e5rF_ZdjhRZdOi02HYw_egIfIAph7eUIH364rUbwnfkb2IhgkclV9Zd

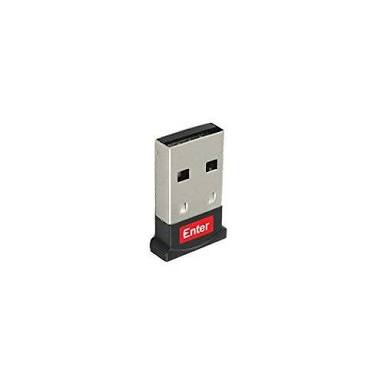

Usb bluetooth adapter pic

https://encrypted-tbn3.gstatic.com/images?q=tbn:ANd9GcQECX3kTr11rnTyOt5g1_8ZnlYHilGao4zMRd11Q5WWoYjibb4DznNUej1qkw



[little_me]

It is a touch and go. Main reason is that USB things require voltage to work. Said image has mic, left, right and ground.
3.5mm plug does NOT supply voltage.

Said first plug would possibly work with usb extender cable from computer to dvd player though since computer side would supply the power to USB (and thus the digital/analog conversion that the plug does.)
The big question is, if the aux port is for TRRS (like the plug in 1st image) or just TRS port. If it is TRS port, it is likely that it wont work with said plug at all.



[venky srinivas]

When we connect usb flash drive to aux port using 3.5mm aux to usb 2.0 cable in car it works but can when i use usb bluetooth instead of usb flashdrive will it work will bluetooth work?



[madmatt30]

Non it won't work , you need to buy an actual standalone bluetooth transmitter/receiver that is geared up for audio use.

Those little bluetooth dongles have no controller software onboard which is why they only work with a PC.



[rgd1101]

MERGED QUESTION
Question from venky srinivas : "Connecting usb audio receiver to dvd using aux mp3 link"

Hii i want to make my dvd wireless but my dvd doesnt accept usb bluetooth receiver using usb port.
But i am thinking to connect my usb bluetooth receiver using aux mp3 link which supports protable audio player
Will it work? Connecting usb bluetooth receiver to dvd using 3.5mm male aux to female usb connector

Usb bluetooth receiver image..
https://encrypted-tbn1.gstatic.com/images?q=tbn:ANd9GcQPOE4M_TF8Vnc45ItyTU5oNmFvJoZyXExg7W1JiVVLhYvt-kK-FhFpq5Br

3.5mm male aux to female usb image

https://lh4.googleusercontent.com/proxy/a1xyydu7sb7eVnVVW-dMxPy8MwiNzcJUcepTdVNA04iTQNsJ_uvc_p3pbeXqTSrsGEk6mbaq_mlgwIDMOQJOKUKk-culAl90T7xO4bBSQo-84NxuNerdNTKZE2KegvyDTzYPIGRidY5yTUaCkaGb0DqvS3qtEoEGRmqfB4Q_ohHi0aNkxE2p4EQqWKFW5OkxqXLnpA6cBQfK0toswsMsHdg=w260-h260-nc

You can't use the USB port at all. No drivers like on a computer so the functions are fixed based on the manufacturer. The cable you link to is useless as well.
You could connect a BT receiver directly to the aux input on the HTS.

You can't use the USB port at all. No drivers like on a computer so the functions are fixed based on the manufacturer. The cable you link to is useless as well.
You could connect a BT receiver directly to the aux input on the HTS.

plss can u send the pic of what BT receiver are you talking abt there are lots of different available.And i dont want to go for a chromecast audio i want some cheaper options..
