[SOLVED] Will M.2 2280 Form factor fit in my 110m slots?

[King_of_Milk]

Hi Guys,


I recently installed a Aorus Master x570 in my PC and put my Sabrent Rocket M.2 2280 in the 3rd slot (Smallest in the motherboard),
I am wondering if the 2280 form factors will also be able to go in the 22110 slots available above? or will I have to source 22110 form factor m.2's to go in these slots?

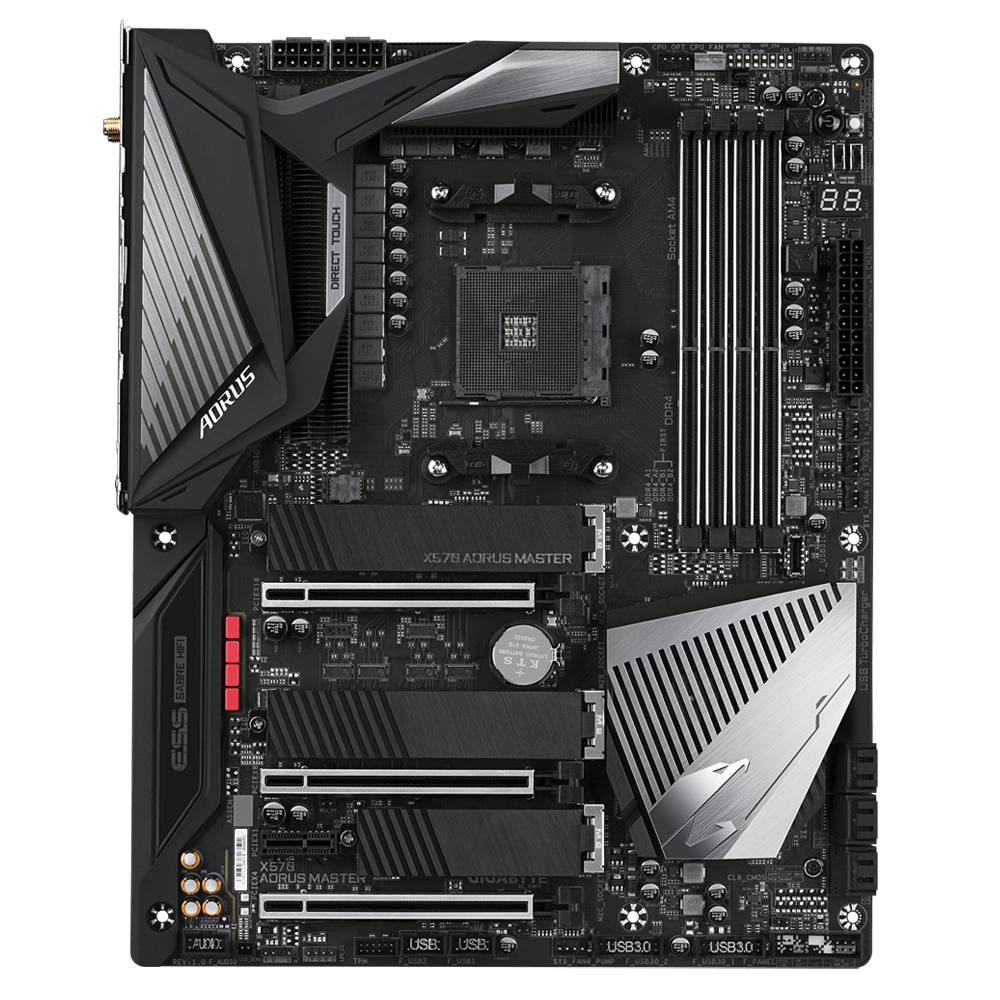

https://static.gigabyte.com/StaticF...36af824dc8fa2695f25859/Product/22022/png/1000
^ Picture of motherboard via gigabyte website

Thanks.



[USAFRet]

Yes.
2280 is the physical size.

22mm wide x 80mm long.
Typical size for an M.2 NVMe is 2280.

A slot that can take 22110 is 22mm wide and 110mm long. It will have the mount hole for an 80mm device.



[King_of_Milk]

Yes.
2280 is the physical size.

22mm wide x 80mm long.
Typical size for an M.2 NVMe is 2280.

A slot that can take 22110 is 22mm wide and 110mm long. It will have the mount hole for an 80mm device.

Thank's for your help, I just didnt want to invest in something that did not fit.
