can this mobo run rgb fan

[crazy25man]

can this mobo
http://www.gigabyte.us/Motherboard/GA-AB350-Gaming-3-rev-10#kf

run rgb fan?



[Darkbreeze]

Yes, it has 1 RGB lighting header.


1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x CPU cooler LED strip/RGB LED strip extension cable header
1 x RGB (RGBW) LED strip extension cable header
1 x Clear CMOS jumper



[crazy25man]

Yes, it has 1 RGB lighting header.


1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header
1 x CPU cooler LED strip/RGB LED strip extension cable header
1 x RGB (RGBW) LED strip extension cable header
1 x Clear CMOS jumper

Where?



[Darkbreeze]



[Darkbreeze]

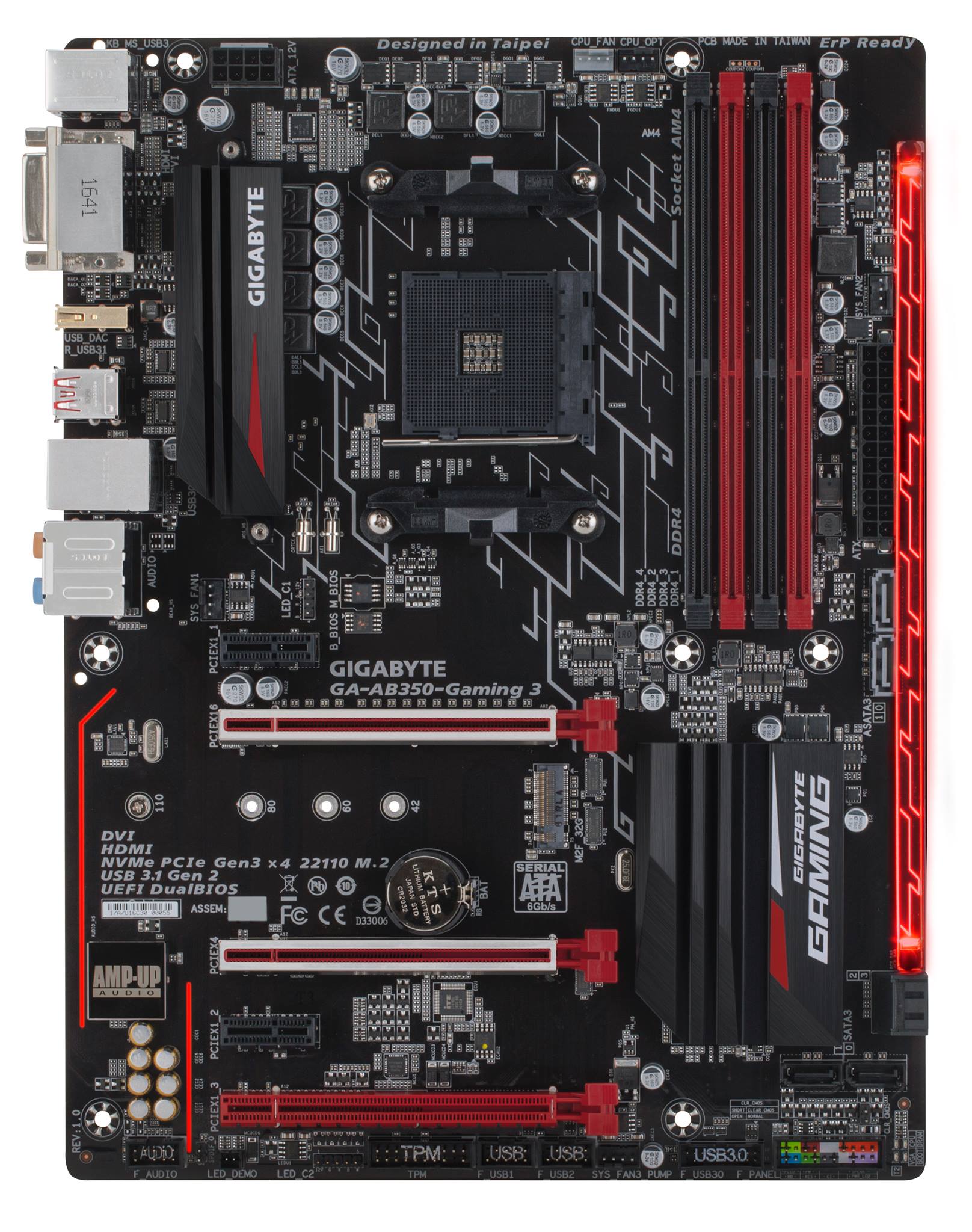

And, it actually looks like there are two of them, because down at the bottom of the motherboard diagram, next to the TPM header, is another LED C2 header which looks to be configured with the exact same pinout as the LED C1 header.



[crazy25man]

its say for led strip,so i confused it for a fan or for a strip?



[hellraiser06]

LED Strip and LED Fans have the same connector that connects to the RGB header on the motherboard. This motherboard has 2 of them. So, you can install 2 RGB fans using the motherboard header and configure the lighting using the RGB Fusion software.

You can also find an RGB splitter which lets you connect more than one fan to it. Then the splitter connects to the RGB header in the motherboard. You can practically install any number of RGB fans limited only by the amount of fans supported by the splitter. If you use a splitter, all the fans connected to it present themselves as one to the motherboard and therefore run with same color scheme. The way I like it, and maybe you will too!



[crazy25man]

LED Strip and LED Fans have the same connector that connects to the RGB header on the motherboard. This motherboard has 2 of them. So, you can install 2 RGB fans using the motherboard header and configure the lighting using the RGB Fusion software.

You can also find an RGB splitter which lets you connect more than one fan to it. Then the splitter connects to the RGB header in the motherboard. You can practically install any number of RGB fans limited only by the amount of fans supported by the splitter. If you use a splitter, all the fans connected to it present themselves as one to the motherboard and therefore run with same color scheme. The way I like it, and maybe you will too!

ahh,my bad sorry.thank you for helping



[Darkbreeze]

If you had wanted a break down of what the LED header could do, then that's what you should have asked for instead of asking if that board could run one.
