Distinguish between ATX and BTX motherboard form factors

[Guest]

HELP ME OUT



[Twoboxer]

ATX: http://en.wikipedia.org/wiki/ATX
BTX: http://en.wikipedia.org/wiki/BTX_(form_factor)

Simply put, if you look at a motherboard from the back-panel side . . . if the expansion slots are on the right, its ATX. If on the left, BTX.



[Deleted member 217926]

ATX: http://en.wikipedia.org/wiki/ATX
BTX: http://en.wikipedia.org/wiki/BTX_(form_factor)

Simply put, if you look at a motherboard from the back-panel side . . . if the expansion slots are on the right, its ATX. If on the left, BTX.

Ah you beat me to it. And a resounding LEARN TO GOOGLE.



[hunter315]

Primary difference is that BTX has the board mounted on the other side of the case, BTX also modifies where many things on the board are located, obvious difference is the location of the memory slots being along the top of the board instead of the front

Edit: Damn it, im typing slow tonight

@twoboxer: that isnt always true, i have seen a few HPs where they mounted the board upside down and on the left side of the case so coming up from floor level its I/O Panel, Expansion slots, power supply, this puts the motherboard on the left but its still an ATX



[Guest]

Primary difference is that BTX has the board mounted on the other side of the case, BTX also modifies where many things on the board are located, obvious difference is the location of the memory slots being along the top of the board instead of the front

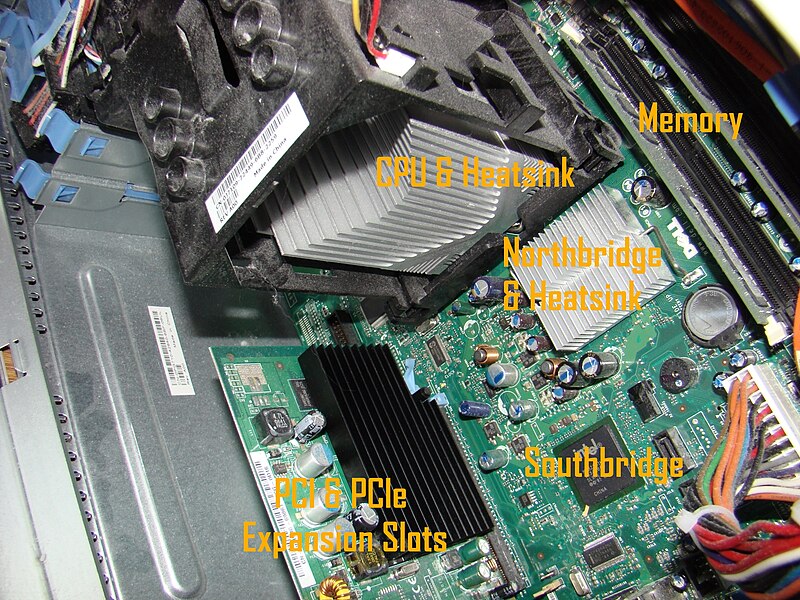

http://upload.wikimedia.org/wikipedia/commons/thumb/0/0d/BTXformFactor.JPG/800px-BTXformFactor.JPG

Edit: Damn it, im typing slow tonight

@twoboxer: that isnt always true, i have seen a few HPs where they mounted the board upside down and on the left side of the case so coming up from floor level its I/O Panel, Expansion slots, power supply, this puts the motherboard on the left but its still an ATX



[Twoboxer]

If you turn the board upside down, then right becomes left and left becomes right.

What I said is always true because that's what a standard means.



[delluser1]

If you turn the board upside down, then right becomes left and left becomes right.

What I said is always true because that's what a standard means.

This is what you said;

"Simply put, if you look at a motherboard from the back-panel side . . . if the expansion slots are on the right, its ATX. If on the left, BTX."

Looking at an ATX case from the back the MB is on the left, in a reverse ATX/BTX case the MB is on the right, the expansion slots will either be on the top if it's an ATX system or bottom if it's BTX.



[Twoboxer]

You are looking at the case, not the mobo.



[delluser1]

You are looking at the case, not the mobo.

Doh !!
Yeah, I saw " back-panel side " and the mind said "case" , sorry.



[Twoboxer]

NP, mate. Happens to all of us occasionally.



[essylang]

HELP ME OUT

Thank you for your help.
