Question Revive bricked Seagate Barracuda hard drive?

Toggle sidebar Toggle sidebar
F

franco

Distinguished
Sep 13, 2002
15
0
18,510
I'm hoping that I might be able to revive a hard drive that got bricked when I tried to repair sectors with Seagate tools. It is an old Seagate Barracuda ATA IV ST380021A 80GB Hard Drive, which is no longer recognised at all when I connect it to my old desktop PC.

Today I connected it to a laptop via USB with a "Sabrent" SATA / IDE hard drive to USB connector. Windows device manager seems to recognise that a device is connected but refers to it as a "USB Device." Is there anything I can do to reformat this so it becomes usable or recognised as a hard drive. I can't see any way to configue the drive in Windows 10. I have screenshots but don't see any option to upload them here.

Sort by date Sort by votes
franco said:
Today I connected it to a laptop via USB with a "Sabrent" SATA / IDE hard drive to USB connector. Windows device manager seems to recognise that a device is connected but refers to it as a "USB Device."
Click to expand...
It is recognizing USB adapter. Not the drive.
franco said:
I have screenshots but don't see any option to upload them here.
Click to expand...
Upload to imgur.com and post link.

Upvote 1 Downvote
SkyNetRising said:
It is recognizing USB adapter. Not the drive.

Upload to imgur.com and post link.
Click to expand...

https://imgur.com/a/O5vBYPu
View: https://imgur.com/a/O5vBYPu


Windows seems to recognise the model code for the hard drive but displays it jumbled up.

I just want to get the hard drive working so I can make sure there is no data on it. That seems reasonable to me. Otherwise I live with these hard drives in my apartment forever, or until someone finds out how to get my data off of them when I am dead and buried.

Upvote 0 Downvote
franco said:
https://imgur.com/a/O5vBYPu
View: https://imgur.com/a/O5vBYPu


Windows seems to recognise the model code for the hard drive but displays it jumbled up.

I just want to get the hard drive working so I can make sure there is no data on it. That seems reasonable to me. Otherwise I live with these hard drives in my apartment forever, or until someone finds out how to get my data off of them when I am dead and buried.
Click to expand...
Take the platters out of the disk and break them up into pieces.

  • Like
Reactions: CountMike
Upvote 0 Downvote
OK, but none of these comments answer my question, or address what I want to do. Can this Drive ever be revived with any software?

Is it at least a positive that it is recognised when I connect it with a USB cable?

Upvote 0 Downvote
franco said:
OK, but none of these comments answer my question, or address what I want to do. Can this Drive ever be revived with any software?
Click to expand...
Show screenshot from Disk Management.



Anyway - if your USB adapter doesn't work, then you could

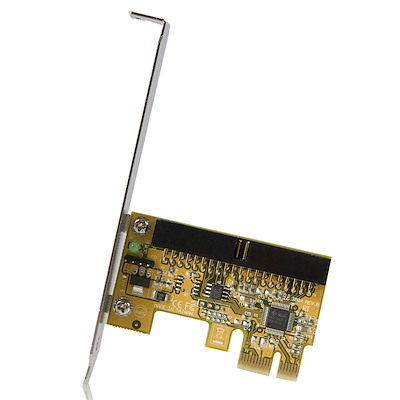

get PCIE IDE controller card, install into your desktop pc, connect drive to it, connect power to the drive and
try to access the drive.


https://www.startech.com/en-us/cards-adapters/pex2ide

Upvote 1 Downvote
franco said:
Windows seems to recognise the model code for the hard drive but displays it jumbled up.
Click to expand...

That's weird. It appears that the bridge has swapped the bytes in each 16-bit word.

Can you show us a CrystalDiskInfo screenshot?

https://www.reddit.com/r/datarecoverysoftware/wiki/index/smart/

Can you also upload the text info?

Edit -> Copy Option -> tick all the boxes​
​
Edit -> Copy (to copy the info to the clipboard)​
​
Ctrl-V to paste the info into your next post​

  • Like
Reactions: franco
Upvote 1 Downvote
I finally have the CrystalDiskinfo screenshots. Due to a problem with the CrystalDisk software on the laptop I am using it took a while before I got the time to do it. There are two images.

https://imgur.com/a/LGreWRp
View: https://imgur.com/a/LGreWRp


To reiterate this hard drive was recognised by my desktop until I tried to repair sectors using Seagate tools software. Whatever Seagate tools done at that point it is no longer recognised. I used a laptop to connect with a Sabrent USB-DS12-EU USB 3.0 to Sata Hard driver adapter.

Does this drive have any hope of running software to erase all data?

Upvote 0 Downvote
What would I do with it?

It is an 80GB HDD. 20 years or so old.
Useless.

Disassemble, and recover the magnets. They are quite useful.
Then break/bend the platters.
Zero possibility of data recovery.

Or, a few whacks with a hammer.
Zero possibility of data recovery.

Or, a Full Format in File Explorer.
Zero possibility of data recovery.

  • Like
Reactions: franco
Upvote 0 Downvote
Thanks. I would like to run a format on it first and then physically destroy it. However, it doesn't seem to show up in file explorer so that is where I am having trouble.

It is there under device manager but not file explorer.

Upvote 0 Downvote
franco said:
Thanks. I would like to run a format on it first and then physically destroy it. However, it doesn't seem to show up in file explorer so that is where I am having trouble.

It is there under device manager but not file explorer.
Click to expand...
There is no need to do all that.

Physical destruction renders any data 100% unrecoverable.
Totally.
Completely.
No one...not the NSA, FSB, GCHQ, Star Fleet, the Borg....no one can get data from a drive platter that has been removed and broken into little pieces.

And that is if anyone wanted to. Which they don't.
Unless you have the blueprints for a working cold fusion reactor, or FTL drive...NO ONE CARES.

  • Like
Reactions: franco
Upvote 0 Downvote
