Tom's Hardware Member System Gallery

[jacknhut]

Just upgraded my system with complete watercooling and X79 Enjoy! Red ftw!



[jhengst1962]

Hi everyone,

Lets try this again.



[jrwizbang]

OK, I figured out how to copy a link to my Photbucket. Now, how can I just copy or post the picture?

Thanks

You take the link that you posted, and put

after it



[jhengst1962]

You take the link that you posted, and put

after it

Thanks.. Much appriciated..



[jhengst1962]

My Primary System:
http://i964.photobucket.com/albums/ae127/Tecmo34/i7-3930KBuild001.jpg

■CPU: Intel Core i7-3930K Sandy Bridge-E 3.2GHz (3.8GHz Turbo) LGA 2011 130W Six-Core Desktop Processor BX80619i73930K
■MOBO: ASUS P9X79 PRO LGA 2011 Intel X79 SATA 6Gb/s USB 3.0 ATX Intel Motherboard with USB BIOS
■RAM: CORSAIR Vengeance 16GB (4 x 4GB) 240-Pin DDR3 SDRAM DDR3 1600 (PC3 12800) Desktop Memory Model CMZ16GX3M4A1600C9B
■HSF: CORSAIR H100 (CWCH100) Extreme Performance Liquid CPU Cooler
■OS/App HDD: OCZ Vertex 4 VTX4-25SAT3-128G 2.5" 128GB SATA III MLC Internal Solid State Drive (SSD)
■Secondary App HDD: Intel X25-M Mainstream SSDSA2MH080G2R5 2.5" MLC Internal Solid State Drive (SSD)
■Storage HDD: SAMSUNG Spinpoint F3 HD103SJ 1TB 7200 RPM SATA 3.0Gb/s 3.5" Internal Hard Drive -Bare Drive
■PSU: CORSAIR HX Series CMPSU-850HX 850W ATX12V 2.3 / EPS12V 2.91 80 PLUS SILVER Certified Modular Active PFC Power Supply
■GPU: EVGA 02G-P4-2670-KR GeForce GTX 670 2GB 256-bit GDDR5 PCI Express 3.0 x16 HDCP Ready SLI Support Video Card
■BD-ROM: LG Black 12X BD-R 2X BD-RE 16X DVD+R 12X DVD-RAM 10X BD-ROM 4MB Cache SATA 12X Super Multi Blue with 3D Playback & M-DISC Support WH12LS39 LightScribe Support - OEM
■Case: Corsair Carbide Series 500R White Steel structure with molded ABS plastic accent pieces ATX Mid Tower Computer Case
■Thermal Compound: Corsair Pre-installed Compound
■Montior: SOYO Pearl MT-NI-DYLM24E6 Monitor 24" 1900x1200

My Secondary System:
http://i964.photobucket.com/albums/ae127/Tecmo34/i7-920Build001.jpg

■CPU: Intel Core i7 920 Nehalem 2.66GHz LGA 1366 130W Quad-Core Processor Model BX80601920
■MOBO: EVGA E758-TR 3-Way SLI (x16/x16/x8) LGA 1366 Intel X58 ATX Intel Motherboard
■RAM: OCZ Platinum 6GB (3 x 2GB) 240-Pin DDR3 SDRAM DDR3 1600 (PC3 12800) Low Voltage Desktop Memory Model OCZ3P1600LV6GK
■HSF: XIGMATEK Dark Knight-S1283V 120mm Long Life Bearing CPU Cooler
■OS/App HDD: OCZ Vertex 2 OCZSSD2-2VTXE240G 2.5" 240GB SATA II MLC Internal Solid State Drive (SSD)
■Games HDD: Western Digital VelociRaptor WD3000HLFS 300GB 10000 RPM SATA 3.0Gb/s 3.5" Internal Hard Drive
■Storage HDD: SAMSUNG Spinpoint F3 HD103SJ 1TB 7200 RPM SATA 3.0Gb/s 3.5" Internal Hard Drive -Bare Drive
■PSU: SeaSonic X750 Gold 750W ATX12V V2.3/EPS 12V V2.91 SLI Ready 80 PLUS GOLD Certified Full Modular Active PFC Power Supply
■GPU: 2x EVGA SuperClocked 01G-P3-1563-AR GeForce GTX 560 Ti (Fermi) 1GB 256-bit GDDR5 PCI Express 2.0 x16 HDCP Ready SLI Support Video Card
■DVD: SAMSUNG DVD Burner Black SATA Model SH-S223L LightScribe Support
■BD-ROM: Sony Optiarc Black 2X BD-ROM SATA Model BR-5100S
■Case: Corsair Obsidian Series 650D (CC650DW-1) Black Steel structure with black brushed aluminum faceplate ATX Mid Tower Computer Case
■Thermal Compound: Arctic Silver 5 Thermal Compound
■Montior: ASUS VH236H Black 23" 2ms Full HD Widescreen LCD Monitor w/ Speakers 300 cd/m2 20000 :1 (ASCR)



My Dad's PC: (Originally built for my daughter but given to my Dad when his died)
http://i964.photobucket.com/albums/ae127/Tecmo34/iPhoneUpload.jpg

■CPU: Intel Core 2 Quad Q9550 Yorkfield 2.83GHz LGA 775 95W Quad-Core Processor Model BX80569Q9550
■MOBO: MSI P7N SLI Platinum LGA 775 NVIDIA nForce 750i SLI ATX Intel Motherboard
■RAM: OCZ Platinum 4GB (2 x 2GB) 240-Pin DDR2 SDRAM DDR2 1066 (PC2 8500) Dual Channel Kit Desktop Memory Model OCZ2P10664GK
■HSF: Thermaltake V1 Max-Performance CPU Cooler with Massive 110mm Blue LED Full-Range Variable Speed Fan CL-P0401
■HDD: Western Digital Caviar Black WD6401AALS 640GB 7200 RPM SATA 3.0Gb/s 3.5" Internal Hard Drive
■PSU: ABS Tagan ITZ Series ITZ900-V2 900W ATX12V / EPS12V SLI Certified CrossFire Ready 80 PLUS Certified Active PFC Power Supply
■GPU: 2x EVGA 512-P3-N871-AR GeForce 9800 GTX 512MB 256-bit DDR3 PCI Express 2.0 x16 HDCP Ready SLI Support Video Card
■DVD: SAMSUNG DVD Burner Black SATA Model SH-S223L LightScribe Support
■Case: Thermaltake M9 VI1000BWS Black SECC Steel ATX Mid Tower Computer Case
■Thermal Compound: Arctic Silver 5 Thermal Compound
■Montior: ASUS VH222H Black 21.5" 5ms HDMI Widescreen 16:9 Full HD 1080P LCD Monitor Built in Speakers 300 cd/m2 1000:1 (ASCR20000:1) w/ SPDIF out


My Daughters' Current PC:
http://i964.photobucket.com/albums/ae127/Tecmo34/PC Build/DSC_0580.jpg

■CPU: AMD Athlon II X4 620 Propus 2.6GHz 4 x 512KB L2 Cache Socket AM3 95W Quad-Core Processor
■MOBO: GIGABYTE GA-MA785GMT-UD2H AM3 AMD 785G HDMI Micro ATX AMD Motherboard
■RAM: G.SKILL Ripjaws Series 4GB (2 x 2GB) 240-Pin DDR3 SDRAM DDR3 1333 (PC3 10666) Desktop Memory Model F3-10666CL7D-4GBRH
■HSF: COOLER MASTER Hyper 212 Plus Intel Core i5 & Intel Core i7 compatible RR-B10-212P-GP 120mm "heatpipe direct contact" Long ...
■HDD: Western Digital Caviar Black WD6401AALS 640GB 7200 RPM 32MB Cache SATA 3.0Gb/s 3.5" Internal Hard Drive
■PSU: Antec earthwatts EA430 430W Continuous Power ATX12V v2.0 80 PLUS Certified Active PFC Power Supply
■GPU: XFX HD-465X-YAF2 Radeon HD 4650 512MB 128-bit DDR2 PCI Express 2.0 x16 HDCP Ready CrossFire Supported Video Card
■DVD: Sony Optiarc 24X DVD/CD Rewritable Drive Black SATA Model AD-7240S-0B
■Case: Antec Three Hundred Illusion Black Steel ATX Mid Tower Computer Case
■Thermal Compound: Arctic Silver 5 Thermal Compound
■Montior: Hanns·G HW-191APB Black 19" 5ms Widescreen LCD Monitor

Love the cable routing. Very clean..



[jhengst1962]

Hope this dosen't sound to noobish. Do I add the brackets?



[tecmo34]

Hope this dosen't sound to noobish. Do I add the brackets?

On all of the images you want to upload, click on the white area of "IMG Code" then just use Ctrl-v to paste into the forum.



[jrwizbang]

Hope this dosen't sound to noobish. Do I add the brackets?

Yes you add the brackets.



[akamrcrack]

Found more things to order for my pc :3

a xigmatek 4 in 3 hdd cage w/ fan mount and a power distribution pcb along with the black sli bridge and new noiseblocker fan I think I have ran out of things to add/replace ;3 (except for a window which is coming next!)

Pics soon <3



[Motopsychojdn]

^
I want to cut a hole in my side panel above the one already there.
where were/are the link you have for that.?

For acrylic window cutting i would take it somewhere, I hate working with acrylic hehe,
but a slowspeed holesaw would do it, and the four screwmount holes would need to be marked and taped up too, (taping acrylic both sides helps prevent it cracking)

@jack, nice build man, orange tubing and extensions to match the fans would be cool though but still looks awesome as is mate
Moto



[Uther39]

Ok finished a re spray of the front..
So it all blends in together...



[jrwizbang]

Just upgraded my system with complete watercooling and X79 Enjoy! Red ftw!

I'm loving the red and orange theme you've got going. Looks very clean and crisp. Good work!



[Lutfij]

@ muffin man - http://www.tomshardware.com/forum/page-310222_31_3100.html#t2671067 seems like you've run into plasticizers

@ amfangirl - :lol: a waaanderfool mess of cables there, j/k - i thought I'd seen all the vintage cases, however that Vento just got into my books. Off topic - you a character designer? or its only for illustrations? cos I know character designers have a doll/figure to keep them company.

@ uther - classy finishes from you mate, nothing less can be expected!

@ jrwiz - sleek looking black and green. But you nee MOAR zipties to finish the job.

@jacknhut - nice themed build

@jhengst - atten- SHOAN! :lol: nice army drab on that case. Is that stock or your MW paintjob?



[jrwizbang]

@ muffin man - http://www.tomshardware.com/forum/page-310222_31_3100.html#t2671067 seems like you've run into plasticizers

@ amfangirl - :lol: a waaanderfool mess of cables there, j/k - i thought I'd seen all the vintage cases, however that Vento just got into my books. Off topic - you a character designer? or its only for illustrations? cos I know character designers have a doll/figure to keep them company.

@ uther - classy finishes from you mate, nothing less can be expected!

@ jrwiz - sleek looking black and green. But you nee MOAR zipties to finish the job.

@jacknhut - nice themed build

@jhengst - atten- SHOAN! :lol: nice army drab on that case. Is that stock or your MW paintjob?

I don't need more zipties, just a bigger case. The NZXT Phantom to be specific



[Lutfij]

or that can be one costly approach what happened to the truss framed case idea?



[amuffin]

😛



[Reverend_Mason]

This thread makes me feel all warm and fuzzy inside. Also poor. But mostly warm and fuzzy.



[jrwizbang]

or that can be one costly approach what happened to the truss framed case idea?

Oh I'm still making that, but more than likely I won't keep my computer in that the whole time, and while I'm building it, I want a nice case for reference for stuff. However, I may just keep it in the case it is in for the time while I build the other case, and spend the money on a new HDD.... seeing as I only have 12gb left on my 500gb.... :/



[485763g4]

I don't need more zipties, just a bigger case. The NZXT Phantom to be specific

I have that case and I really love it Its Big, Roomy, and just looks cool!! 😀



[jrwizbang]

I don't need more zipties, just a bigger case. The NZXT Phantom to be specific

I have that case and I really love it Its Big, Roomy, and just looks cool!! 😀

Yeah it does. I'm going to be getting the orange and black version when I do get it, which is going to be delayed now because I need another hard drive....



[toneekay]

Wow a lot of newer, nicer rigs!


Anyways, I just wanted to post up an HTPC/light gaming rig I built a couple months ago (nothing fancy)...

SPECS:
- Intel Core i3-2100
- Biostar TZ68A+ RCH
- Crucial Ballistix Tactical 4gb DDR3-1600 (cas 8)
- WD Intellipower 500gb
- XFX HD6870 1gb 256-bit
- NZXT HALE82 650w modular psu
- NZXT Tempest 210 mid-tower

It does the job



[Jaberwocki87]

New member, new rig!

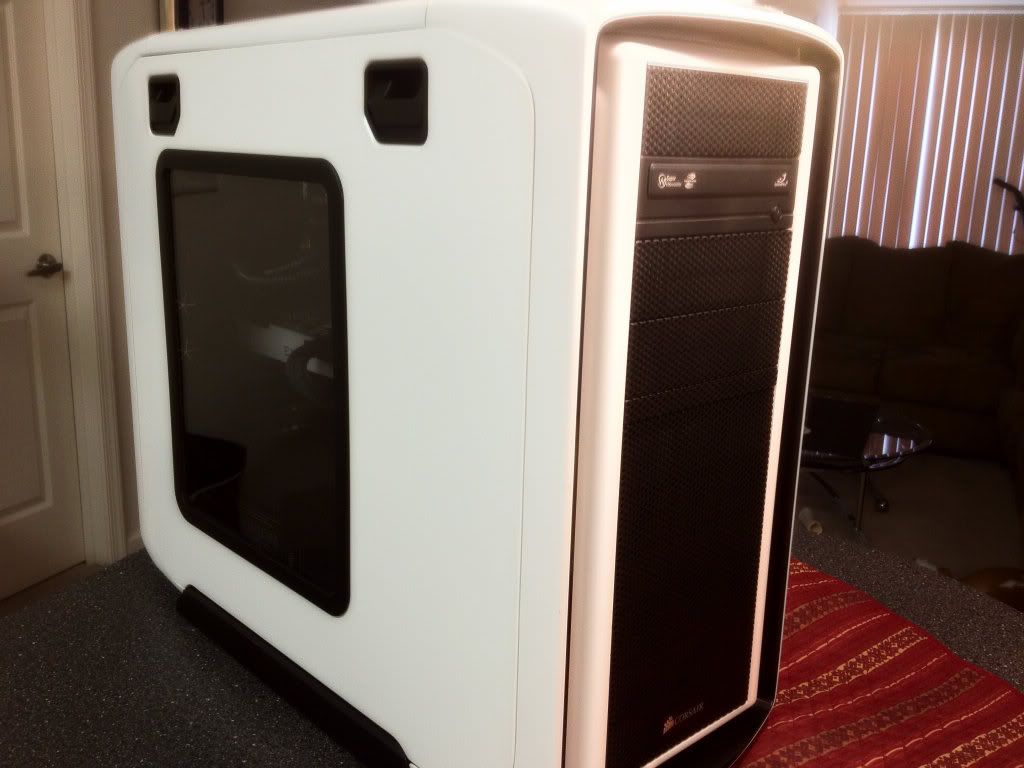

Corsair 600T Case
Asus P8Z68 V-LX
Intel i5 2500K
Corsair H60 Cooler
2x4gb Corsair Vengeance DDR3
Evga GTX 670
Antec TP 750 Watt



[Lutfij]

nice cable work there!



[Motopsychojdn]

Yup, I'm 99% approving that there man, very neat on the wires
Moto



[saint19]

New member, new rig!


http://i28.photobucket.com/albums/c238/mjc18267/IMG_0305.jpg?t=1343242081

http://i28.photobucket.com/albums/c238/mjc18267/IMG_0300.jpg?t=1343242263

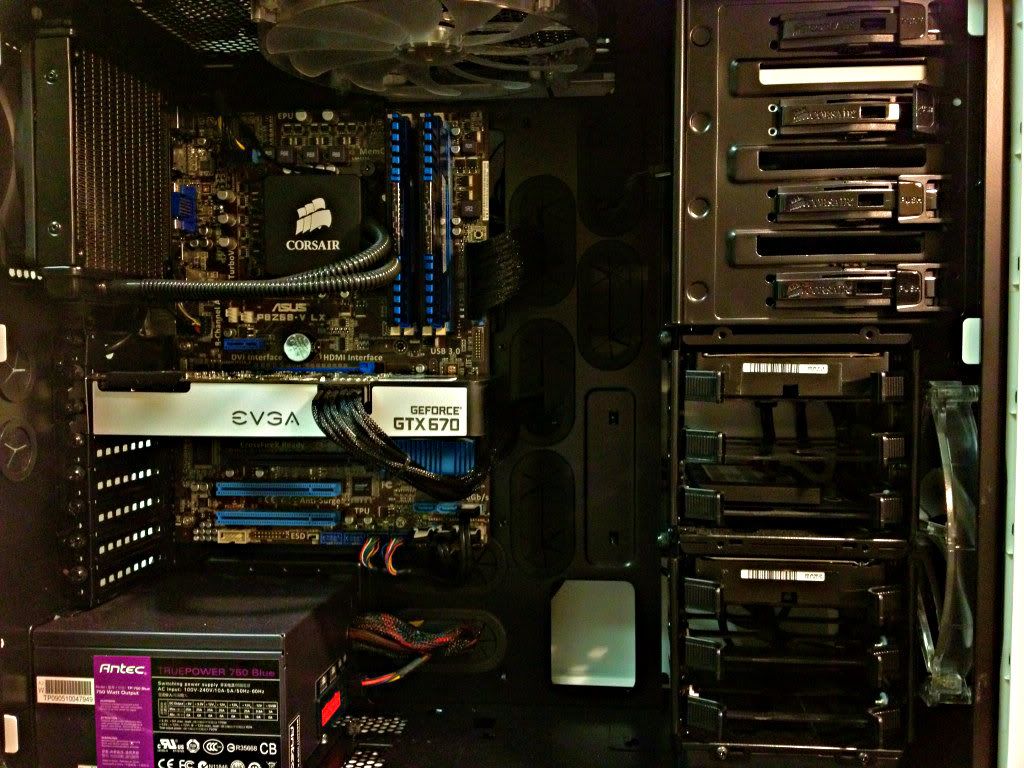

Corsair 600T Case
Asus P8Z68 V-LX
Intel i5 2500K
Corsair H60 Cooler
2x4gb Corsair Vengeance DDR3
Evga GTX 670
Antec TP 750 Watt

Covering those cables in the PSU and the USB/Audio front cables would do a 10/10 cable management.
