[SOLVED] Where do i connect the Gpu & Cpu cables? Corsair RM1000i

[khaled_82]

Where do i plug those in?

There are a lot of options



[Sa1Ko]

Wherever the psu has 8pin you can connect the cpu and gpu. The side of the cable which has white letters saying 'CPU' and 'PCI-E' are the ones that go to the cpu and gpu accordingly. The other side goes to the psu in any 8pin socket. For the gpu i think it is recommended to use two separate cables and not one even though corsair gives it with a splitter. It is safer with two separate especially for junction temperatures.



[khaled_82]

Wherever the psu has 8pin you can connect the cpu and gpu. The side of the cable which has white letters saying 'CPU' and 'PCI-E' are the ones that go to the cpu and gpu accordingly. The other side goes to the psu in any 8pin socket. For the gpu i think it is recommended to use two separate cables and not one even though corsair gives it with a splitter. It is safer with two separate especially for junction temperatures.

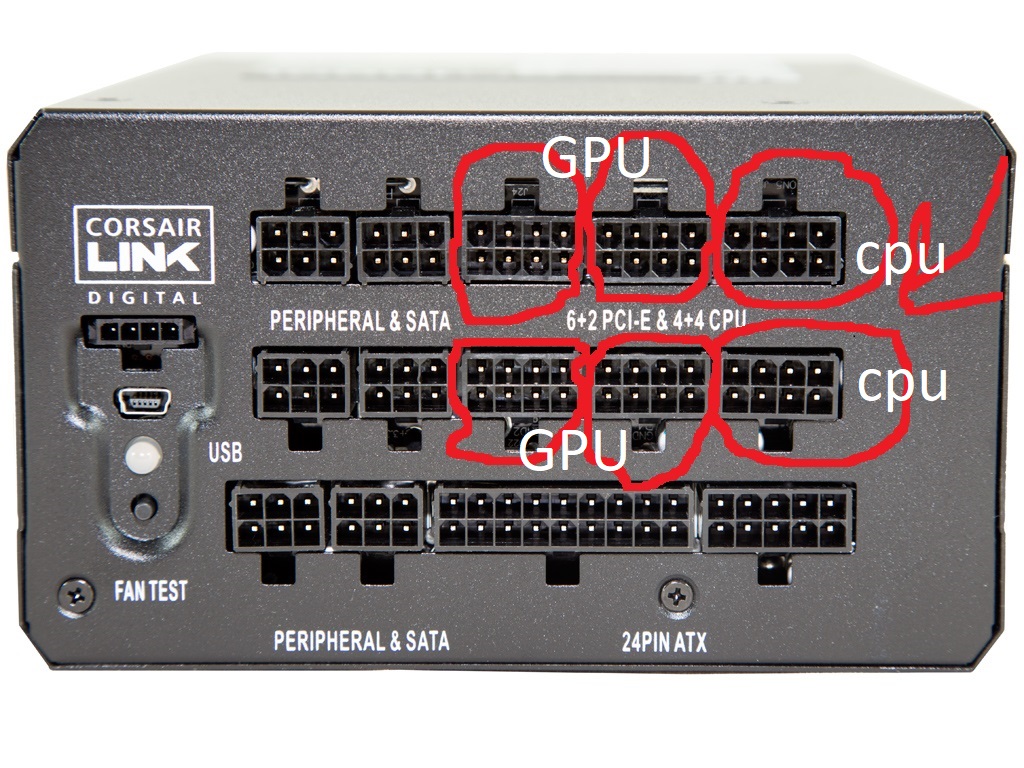

I wonder , according to this image: wrong or not



[SkyNetRising]

I wonder , according to this image: wrong or not

You can use any combination, you want. All of those circled connectors are the same.

You most likely do not need to use all of them.



[khaled_82]

Thanks, i appereciate it 😉
