Question I7 8700k oc help

christianyoung

Prominent
Aug 26, 2018
21
0
510
0
I want to oc my CPU but I have no experienced what so ever and I'm scared I'll brick it.

Any captains around that could help me through the process?

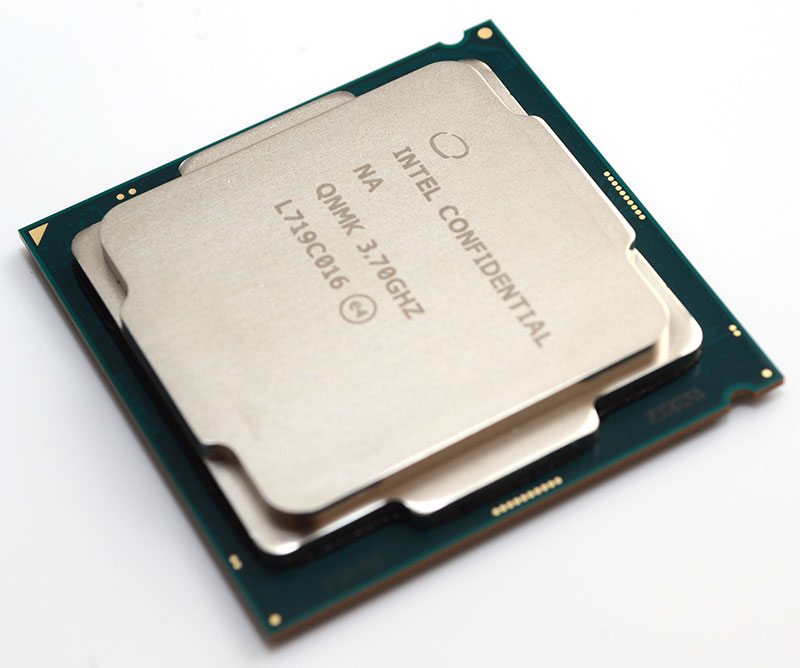

I7 8700k
Z390 aorus ultra
850w Corsair
Cougar Panzer max case.
- 3 front fans
- 1 exhaust
- nzxt x72 Kraken aio

Any help is greatly appreciated

Thanks


zx128k

Prominent
Nov 23, 2019
620
107
590
8
So a 1080ti is recommended to have a 600 W PSU. The card itself is 250 W - 350 W. https://www.tomshardware.com/uk/reviews/asus-rog-strix-geforce-gtx-1080-ti-oc,5225-4.html

8700k overclocked too 4.9GHz uses a maximum of 170 watts plus but in the review was throttling, so I would aim for 200-250 watts to be safe at 5GHz (300 watts extra to be sure)
View: https://www.youtube.com/watch?v=MakdoQ7mXGg
. https://www.tomshardware.com/uk/reviews/intel-coffee-lake-i7-8700k-cpu,5252-12 html https://www.reddit.com/r/overclocking/comments/8ovilc View: https://www.reddit.com/r/overclocking/comments/8ovilc/50_ghz_8700k_power_usage/


So a 750 watt PSU or more. So the PSU should be fine if its a decent one.

So, expected overclocks and the chance to reach said overclock.
8700K4.80GHz4.60GHz1.375V100%
8700K4.90GHz4.70GHz1.387VTop 99%
8700K5.00GHz4.80GHz1.400VTop 83%
8700K5.10GHz4.90GHz1.412VTop 49%
8700K5.20GHz5.00GHz1.425VTop 17%
8700K5.30GHz5.10GHz1.437VTop 4%
https://siliconlottery.com/pages/statistics

Your Z390 aorus ultra motherboard is a great choice for overclocking the 8700k.



5GHz all cores could run hot with your cooler and you may have to delid. https://linustechtips.com/main/topic/915777-nzxt-kraken-x72-running-hot/

After delidding with closed case.

After delidding with open case.
