Question MSi MAG Tomohawk B550 - VGA led and no fans spinning

[kentudezenog]

After turning on the PC, no fans are spinning (all of them are definitely connected) and the red CPU debug lights up. after about 5-10 seconds the VGA debug lights up. After the VGA lighted up it stays this way until I turn of the PC. When connecting to a Monitor it doesn't even recognize the channel (tried on 3 different monitors with either DisplayPort or HDMI). What should I try now to solve this ? The CPU seems perfectly fine (no bent pins) and all PCIe receptors on the GPU are fine. Also tried with another good GPU

My specs are:
Ryzen 9 5900x
MSi MAG Tomohawk B550 with updated BIOS
RTX 3070
850W PSU



[rgd1101]

brand and model of the psu?

was this a working system?



[kentudezenog]

Gigabyte AORUS P850W

New system



[rgd1101]

which bios did you install?
what was the other gpu?



[kentudezenog]

MSI MAG B550 TOMAHAWK AMD AM4 DDR4 CF M.2 USB 3.2 Gen 2 HDMI ATX Gaming Motherboard

Powered by AMD Ryzen AM4 processors, the MSI MAG B550 TOMAHAWK inspired by the military armor design, tuned for better performance by Core boost, DDR4 Boost, Lightning M.2 with M.2 Shied

www.msi.com

Version: 7C91vAD

Tried inno3d RTX 3070 and a MSI RTX 3070 ventus 2x



[rgd1101]

have another gpu that not a 3070?
or another psu?



[kentudezenog]

I have another psu to check with. Not a GPU different then 3070.
Is it normal that the cpu fan is not spinning when the diagnotics are running?



[rgd1101]

could check for bend pin.
a modular psu. did you check both end of the cable?



[kentudezenog]

There is no bend pin on the CPU. The CPU led als goes off so i think there is no problem with it.
What do you mean by check both end of the cable? Continuity?



[rgd1101]

What do you mean by check both end of the cable? Continuity?

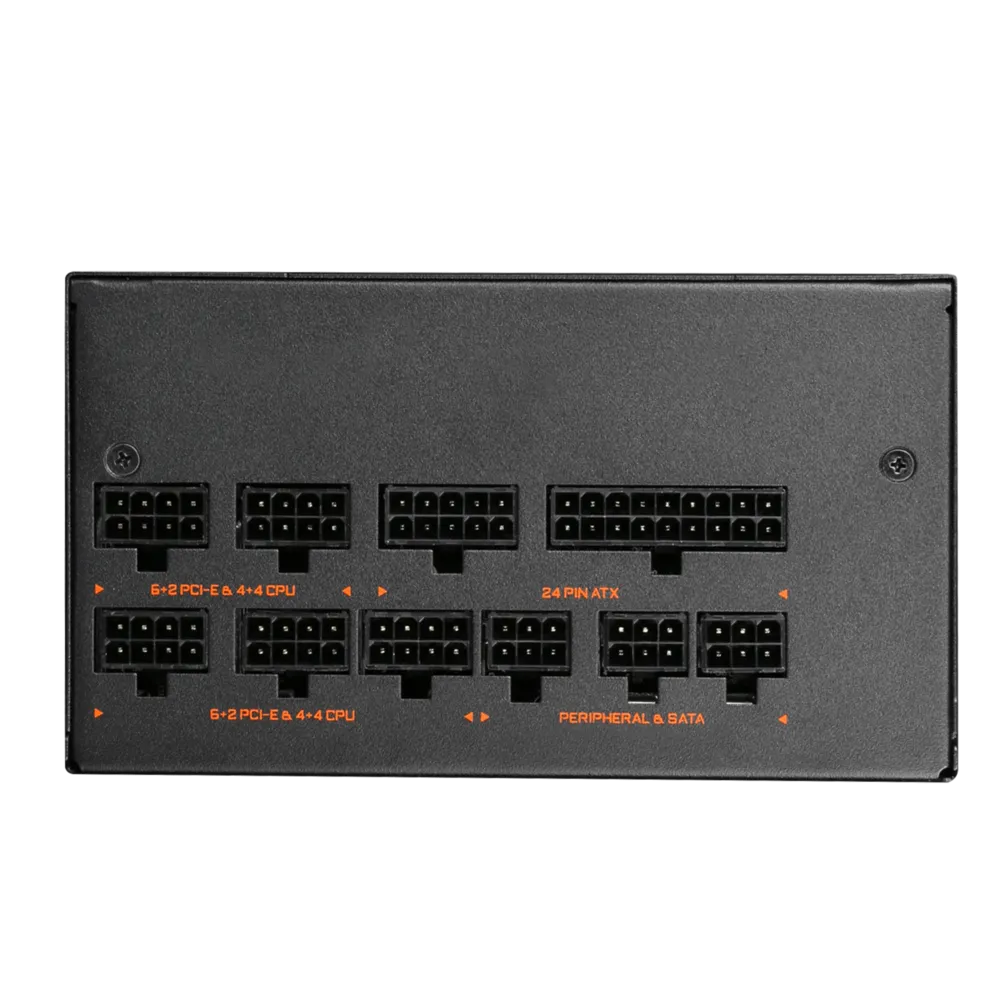

https://static.gigabyte.com/StaticFile/Image/Global/e860796caa0e106439777fcff8792266/Product/19938/webp/1000



[kentudezenog]

Cpu cable is in top row second from left.
1 thing i dont have any M2 or ssd connected to the motherboard. Is this a problem?



[rgd1101]

you should have cpu and pcie and motherboard cable.



[kentudezenog]

I fixed it. PSU was bad. rgd1101 tnx for help
