Question PC having randoms BSODS

Page 2 - Seeking answers? Join the Tom's Hardware community: where nearly two million members share solutions and discuss the latest tech.

Johnwmel

Great
Jan 21, 2021
244
21
95
1
Last edited:

Colif

Win 10 Master
Moderator
Actually just as I was turning the PC back on, it BSOD’d and gave me a BAD_SYSTEM_CONFIG_INFO stop code with the stick in slot #4 being the only one in. So I opened the PC up and took out the stick in slot #4 and put the stick in slot #2 back in. It BSOD’d again and gave me the CRITICAL_PROCESS_DIED stop code I was having before.
Sorry, I sort of assumed you knew which slot to run 1 stick of ram in, its normal for motherboards to have special ones that 1 stick should be put in to work.

Try running with other stick by itself and see if you still BSOD.


AndrewM2019

Prominent
Jun 19, 2019
24
0
510
0
Sorry, I sort of assumed you knew which slot to run 1 stick of ram in, its normal for motherboards to have special ones that 1 stick should be put in to work.

Try running with other stick by itself and see if you still BSOD.
So run my first stick of RAM in the first slot?


AndrewM2019

Prominent
Jun 19, 2019
24
0
510
0
Try both sticks in slot DIMMA2, if you have tried one already in that slot and it bsod, try the other one.
Page 6 shows that is right choice - https://download.msi.com/archive/mnu_exe/mb/E7B79v2.1-GSE-LITE.pdf

if 1 stick, DIMMA2 (from left, slot 2)
if 2 sticks, DIMMA2 & DIMMB2 (from left, slots 2 & 4)
if 4 sticks, obvious
not sure about 3 sticks, manuals never show.
Ok I’ll try that tomorrow after I wake up, as it’s pretty late where I am. Thanks for helping with me with this, I truly appreciate all the help regardless of how small it may be.


AndrewM2019

Prominent
Jun 19, 2019
24
0
510
0
@Colif Hi, so I tried the other RAM stick in the correct slot this time and initially it loaded onto the desktop with no problems. Upon sitting on the desktop for about a minute, the PC BSOD’d with the same CRITICAL_PROCESS_DIED stop code as the first stick RAM


Colif

Win 10 Master
Moderator
well, its probably not the ram but we had to try.

My friend probably still asleep and I have to go soon, but as soon as I see his conversion I might have something to work with.

critical process died likely needs a solution other than ram.


AndrewM2019

Prominent
Jun 19, 2019
24
0
510
0
well, its probably not the ram but we had to try.

My friend probably still asleep and I have to go soon, but as soon as I see his conversion I might have something to work with.

critical process died likely needs a solution other than ram.
Ok no problem, at least we know it's not RAM now


Colif

Win 10 Master
Moderator
this program is a 3rd party driver updater, I know you say not to install any but its still a temptation. I don't like 3rd party driver updaters as they make mistakes and people have to jump through hoops to get PC working again.

I know you think http://www.nirsoft.net/utils/driverview.html is the same thing, but difference is, it only looks. It doesn't install. It can't install. You have to actually look at what PC has and go find newer versions of those drivers. If you go to makers websites and not some of the sites on web that have many drivers for everyone (which are just as trustworthy as Driver booster and other 3rd party updaters), you are likely to get right drivers.

@AndrewM2019 the dump conversions by Gardenman show what drivers are running
Mar 14 2016amdgpio3.sysAMD GPIO Controller Driver from Advanced Micro Devices http://support.amd.com/
Oct 11 2017YSDrv.sysVirtualBox Support driver
Aug 14 2018rtwlane.sysRealtek PCI-E Wireless LAN NIC NDIS driver https://www.realtek.com/en/
May 24 2019rt640x64.sysRealtek NICDRV 8169 PCIe GBE Family Controller driver https://www.realtek.com/en/
Jan 17 2020Nahimic_Mirroring.sysNahimic driver https://www.nahimic.com/
Mar 06 2020amdpsp.sysAdvanced Micro Devices, Inc http://support.amd.com/
Mar 11 2020amdgpio2.sysAMD GPIO Controller Driver from Advanced Micro Devices http://support.amd.com/
Aug 17 2020RzDev_0203.sysRazer driver
Oct 16 2020nvhda64v.sysNvidia HDMI Audio Device http://www.nvidia.com/
Jan 13 2021AMDPCIDev.sysAdvanced Micro Devices PCI Device driver
Mar 30 2021RzCommon.sysRazer Common driver (Razer Inc)
Apr 23 2021nvlddmkm.sysNvidia Graphics Card driver http://www.nvidia.com/

those ones were in first lot of bsod. Not sure about latest.


AndrewM2019

Prominent
Jun 19, 2019
24
0
510
0
this program is a 3rd party driver updater, I know you say not to install any but its still a temptation. I don't like 3rd party driver updaters as they make mistakes and people have to jump through hoops to get PC working again.

I know you think http://www.nirsoft.net/utils/driverview.html is the same thing, but difference is, it only looks. It doesn't install. It can't install. You have to actually look at what PC has and go find newer versions of those drivers. If you go to makers websites and not some of the sites on web that have many drivers for everyone (which are just as trustworthy as Driver booster and other 3rd party updaters), you are likely to get right drivers.

@AndrewM2019 the dump conversions by Gardenman show what drivers are running
Mar 14 2016amdgpio3.sysAMD GPIO Controller Driver from Advanced Micro Devices http://support.amd.com/
Oct 11 2017YSDrv.sysVirtualBox Support driver
Aug 14 2018rtwlane.sysRealtek PCI-E Wireless LAN NIC NDIS driver https://www.realtek.com/en/
May 24 2019rt640x64.sysRealtek NICDRV 8169 PCIe GBE Family Controller driver https://www.realtek.com/en/
Jan 17 2020Nahimic_Mirroring.sysNahimic driver https://www.nahimic.com/
Mar 06 2020amdpsp.sysAdvanced Micro Devices, Inc http://support.amd.com/
Mar 11 2020amdgpio2.sysAMD GPIO Controller Driver from Advanced Micro Devices http://support.amd.com/
Aug 17 2020RzDev_0203.sysRazer driver
Oct 16 2020nvhda64v.sysNvidia HDMI Audio Device http://www.nvidia.com/
Jan 13 2021AMDPCIDev.sysAdvanced Micro Devices PCI Device driver
Mar 30 2021RzCommon.sysRazer Common driver (Razer Inc)
Apr 23 2021nvlddmkm.sysNvidia Graphics Card driver http://www.nvidia.com/

those ones were in first lot of bsod. Not sure about latest.
Do you want me to send my latest dumps over? or should I try making sure these drivers are up-to-date?


Colif

Win 10 Master
Moderator
just send dumps, i only showed list to show you don't need to run that snail to see what drivers are actually running. thats not all the drivers, its just the non windows ones. You can't update the windows ones, so no point seeing them - They all installed by Microsoft.


gardenman

Dignified
Moderator
Hi, I ran the dump files through the debugger and got the following information: https://jsfiddle.net/me3tfbq2/show This link is for anyone wanting to help. You do not have to view it. It is safe to "run the fiddle" as the page asks.
File information:050921-40078-01.dmp (May 9 2021 - 09:11:18)

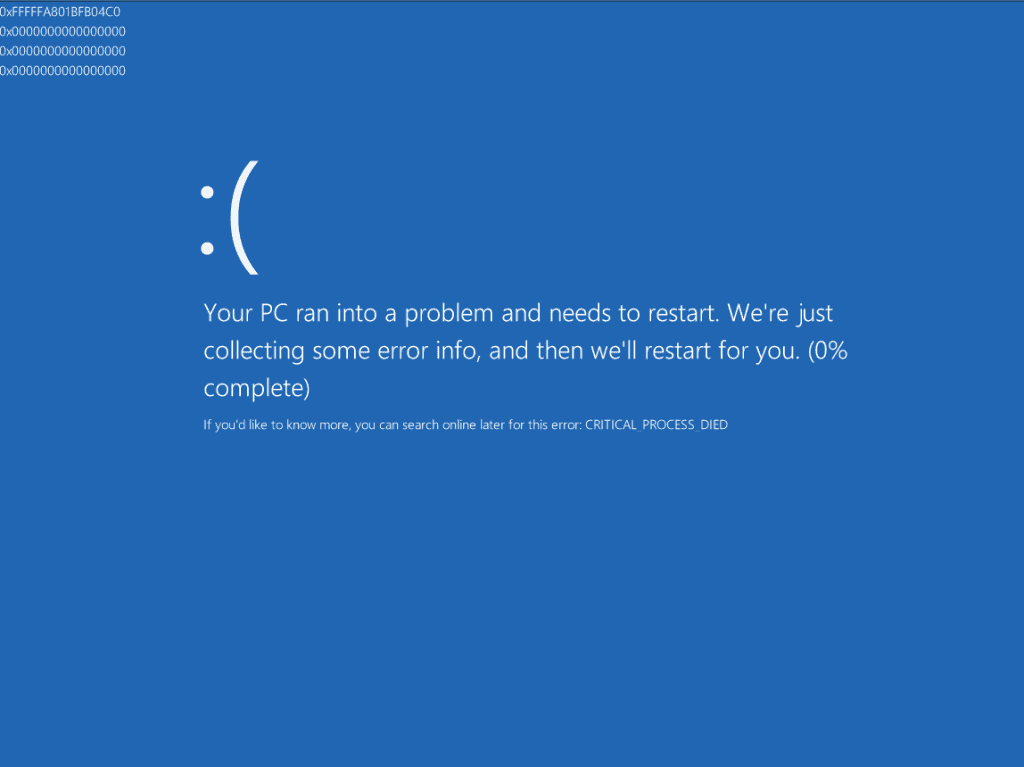

Bugcheck:CRITICAL_PROCESS_DIED (EF)
Probably caused by:ntkrnlmp.exe (Process: svchost.exe)
Uptime:0 Day(s), 0 Hour(s), 03 Min(s), and 42 Sec(s)

File information:050921-37343-01.dmp (May 9 2021 - 08:55:02)
Bugcheck:CRITICAL_PROCESS_DIED (EF)
Probably caused by:ntkrnlmp.exe (Process: svchost.exe)
Uptime:0 Day(s), 0 Hour(s), 03 Min(s), and 08 Sec(s)

File information:050921-33421-01.dmp (May 9 2021 - 09:05:28)
Bugcheck:CRITICAL_PROCESS_DIED (EF)
Probably caused by:ntkrnlmp.exe (Process: svchost.exe)
Uptime:0 Day(s), 0 Hour(s), 03 Min(s), and 21 Sec(s)

File information:050921-29125-01.dmp (May 8 2021 - 21:43:40)
Bugcheck:CRITICAL_PROCESS_DIED (EF)
Probably caused by:ntkrnlmp.exe (Process: svchost.exe)
Uptime:0 Day(s), 0 Hour(s), 00 Min(s), and 47 Sec(s)

File information:050921-24640-01.dmp (May 8 2021 - 21:46:26)
Bugcheck:CRITICAL_PROCESS_DIED (EF)
Probably caused by:ntkrnlmp.exe (Process: services.exe)
Uptime:0 Day(s), 0 Hour(s), 02 Min(s), and 12 Sec(s)
This information can be used by others to help you. Someone else will post with more information. Please wait for additional answers. Good luck.


Johnwmel

Great
Jan 21, 2021
244
21
95
1

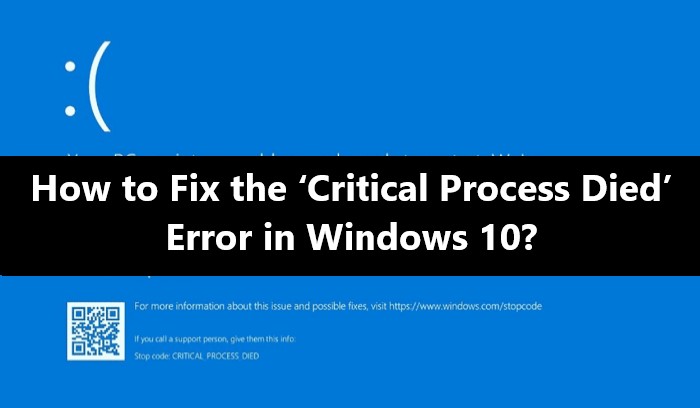

https://www.partitionwizard.com/partitionmagic/critical-process-died.html

Last edited:

AndrewM2019

Prominent
Jun 19, 2019
24
0
510
0
So PC has managed to go more than 24hrs without BSODing, not sure if anything has changed as I haven't installed or uninstalled anything. I'll monitor how things go and see what happens.


Colif

Win 10 Master
Moderator
I had a headache yesterday so didn't look in here

If you stop crashing completely, don't do this:

it could be a driver still

every crash starts after
nt!KiPageFault+0x443
page faults are normal operations of windows, they occur when cpu doesn't have the info it needs and looks in ram. this could mean its the same driver all 5 times or that area of ram is problem

as is usual with me, I skipped a step
Try running memtest86 on each of your ram sticks, one stick at a time, up to 4 passes. Only error count you want is 0, any higher could be cause of the BSOD. Remove/replace ram sticks with errors. Memtest is created as a bootable USB so that you don’t need windows to run it

I know you bsod off both sticks but that doesn't prove they are not the problem really

I feel its still a driver but the means of finding that out can be dangerous for windows to run, and its part of windows - https://forums.tomshardware.com/threads/driver-verifier-instructions.3686888/


AndrewM2019

Prominent
Jun 19, 2019
24
0
510
0
I had a headache yesterday so didn't look in here

If you stop crashing completely, don't do this:

it could be a driver still

every crash starts after
nt!KiPageFault+0x443
page faults are normal operations of windows, they occur when cpu doesn't have the info it needs and looks in ram. this could mean its the same driver all 5 times or that area of ram is problem

as is usual with me, I skipped a step
Try running memtest86 on each of your ram sticks, one stick at a time, up to 4 passes. Only error count you want is 0, any higher could be cause of the BSOD. Remove/replace ram sticks with errors. Memtest is created as a bootable USB so that you don’t need windows to run it

I know you bsod off both sticks but that doesn't prove they are not the problem really

I feel its still a driver but the means of finding that out can be dangerous for windows to run, and its part of windows - https://forums.tomshardware.com/threads/driver-verifier-instructions.3686888/
That’s fine don’t worry about it. I’ll see how it runs tomorrow and report back if there’s still no more BSODs. I restarted it today and it didn’t BSOD either which is good. As for Memtest86, I have that in a USB already so I can test that out. We’ll see what happens over the next 24hrs or so.
