[SOLVED] What do I need to display 10bit color?

[kaishlothon]

I already have a 10bit capable display (ViewSonic VP2770-led), my GPU is an Nvidia GeForce GTX 780 (which I thought could output in 10bit the Nvidia control panel even showed it as an option when I got it) but now years later it no longer shows this as an option (I always use the native 1440p resolution).

BTW the connection between the display nag the GPU is HDMI but both the monitor and the GPU have a display port connection if the cable is the issue.)

So what do I need to change about my computer for it to be able to display 10bit color?



[COLGeek]

You would need a GPU that supports 10-bit color. Usually, you would need a professional GPU for this (i.e. Nvidia Quadro or AMD Radeon Pro/Firepro, etc).

FYI:

How do I force my GTX 780 to display 10bit color?

I am using an NVIDIA GeForce GTX 780 which is connected via DisplayPort to my ViewSonic VP2770-LED monitor (which is fully capable of displaying 10bit...

forums.guru3d.com



[kerberos_20]

hmm thats not a true 10bit monitor, its 8bit + FRC, tho 10bit should be available in nvidia resolution setings
but u say years ago it worked?

How can I get my PC to output in 10bpc (my monitor and graphics card both support it).

I use a ViewSonic VP2770-LED monitor capable of 32-bit 10bpc color and have an NVIDIA GeForce GTX 780 graphics card capable of the same so why won't Windows 10 display it? I have tried test images and such and it won't work. I even have Full Dynamic Range 0-255 selected in the NVIDIA Control Panel.

forums.tomshardware.com

that appears to be your post from 4 years ago, as far as geforce goes, 10bit will display only in directX apps, if u need 10bit images outside of games, u need different GPU quadro or radeon pro



[kaishlothon]

hmm thats not a true 10bit monitor, its 8bit + FRC, tho 10bit should be available in nvidia resolution setings
but u say years ago it worked?

How can I get my PC to output in 10bpc (my monitor and graphics card both support it).

I use a ViewSonic VP2770-LED monitor capable of 32-bit 10bpc color and have an NVIDIA GeForce GTX 780 graphics card capable of the same so why won't Windows 10 display it? I have tried test images and such and it won't work. I even have Full Dynamic Range 0-255 selected in the NVIDIA Control Panel.

forums.tomshardware.com

that appears to be your post from 4 years ago, as far as geforce goes, 10bit will display only in directX apps, if u need 10bit images outside of games, u need different GPU quadro or radeon pro

How noticeable is the difference between true 10bit and 8bit+FRC? To answer your question it was less than years ago that it allowed me to choose 10bpc as my color, early this year I think I just realized it says output color depth it doesn't have a list box for input.

What is the cheapest GPU that I can get (I'll provide motherboard specs if needed.) Also, how much would a true 10bit IPS (27" or around there 59 fps is all that's necessary) be?



[Endre]

I already have a 10bit capable display (ViewSonic VP2770-led), my GPU is an Nvidia GeForce GTX 780 (which I thought could output in 10bit the Nvidia control panel even showed it as an option when I got it) but now years later it no longer shows this as an option (I always use the native 1440p resolution).

BTW the connection between the display nag the GPU is HDMI but both the monitor and the GPU have a display port connection if the cable is the issue.)

So what do I need to change about my computer for it to be able to display 10bit color?

Hello!

HDMI connection can’t deliver 10-bit image, unless it’s HDMI 2.1!

You must use the DisplayPort cable to be able to select the 10 bpc option in the NVIDIA Control Panel!



[kerberos_20]

Hello!

HDMI connection can’t deliver 10-bit image, unless it’s HDMI 2.1!

You must use the DisplayPort cable to be able to select the 10 bpc option in the NVIDIA Control Panel!

thats not necesary, u might have mistaken it for HDR 10bit at 4K with 4:4:4 / RGB
his HDMI has 1080p, 1.4ver is enough for 10bit RGB

How noticeable is the difference between true 10bit and 8bit+FRC?

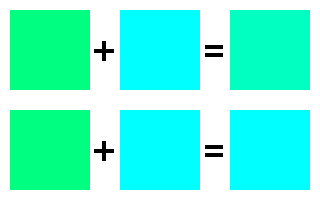

if wouldnt flicker as this example, but heres teh idea behind it
theres no point looking at google pictures as they are 8bit, even if u find 10bit examples, your gpu drivers/webbrowser would show 8bit



[kaishlothon]

thats not necesary, u might have mistaken it for HDR 10bit at 4K with 4:4:4 / RGB
his HDMI has 1080p, 1.4ver is enough for 10bit RGB

if wouldnt flicker as this example, but heres teh idea behind it
theres no point looking at google pictures as they are 8bit, even if u find 10bit examples, your gpu drivers/webbrowser would show 8bit

I know the internet would but is that true for most new games and hdr movies?



[kaishlothon]

Hello!

HDMI connection can’t deliver 10-bit image, unless it’s HDMI 2.1!

You must use the DisplayPort cable to be able to select the 10 bpc option in the NVIDIA Control Panel!

Okay, thank's that's what I have been reading.



[COLGeek]

I have one of these pushing 10-bit to a 4k Samsung display via DisplayPort.

https://www.amd.com/en/products/professional-graphics/radeon-pro-wx-3200



[hotaru.hino]

I know the internet would but is that true for most new games and hdr movies?

Consuming modern HDR content requires a monitor that conforms to one of the HDR standards. Your monitor was made before said HDR standards were made, so your monitor can't view said HDR content as intended. There are ways to make HDR video show properly on non compatible displays, but no such thing exists (as far as I know) for games.
