Question My system is giving bsod in about 2 minutes(windows 10)

Page 2 - Seeking answers? Join the Tom's Hardware community: where nearly two million members share solutions and discuss the latest tech.
May 9, 2021
18
0
10
0

Johnwmel

Great
Jan 21, 2021
243
21
95
1

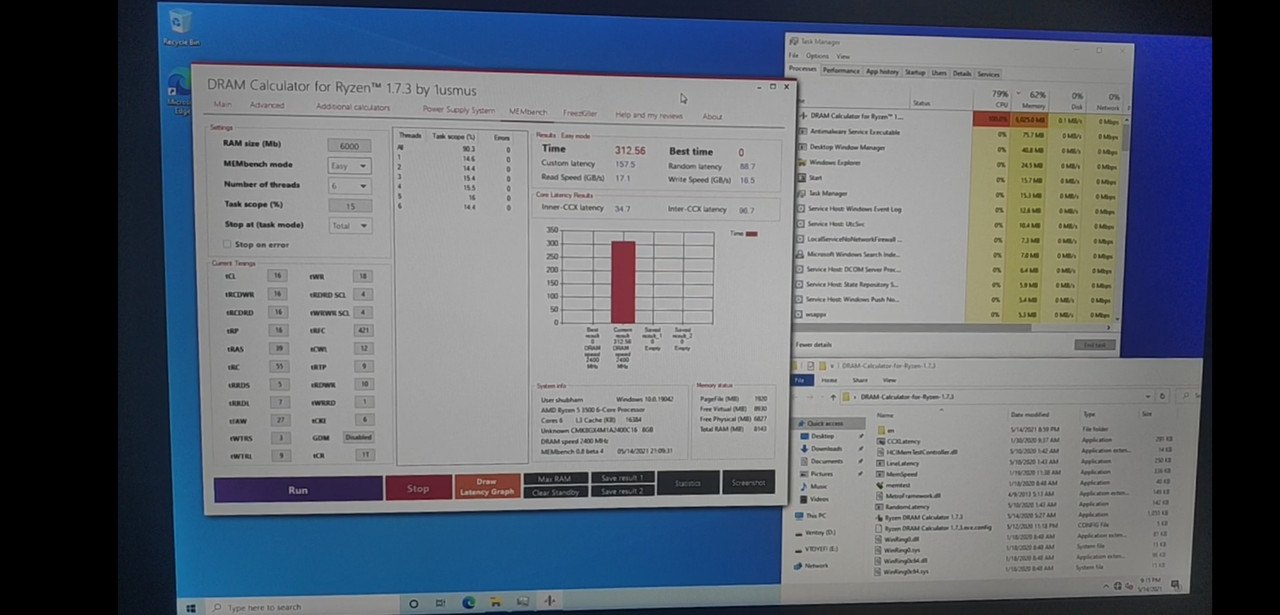

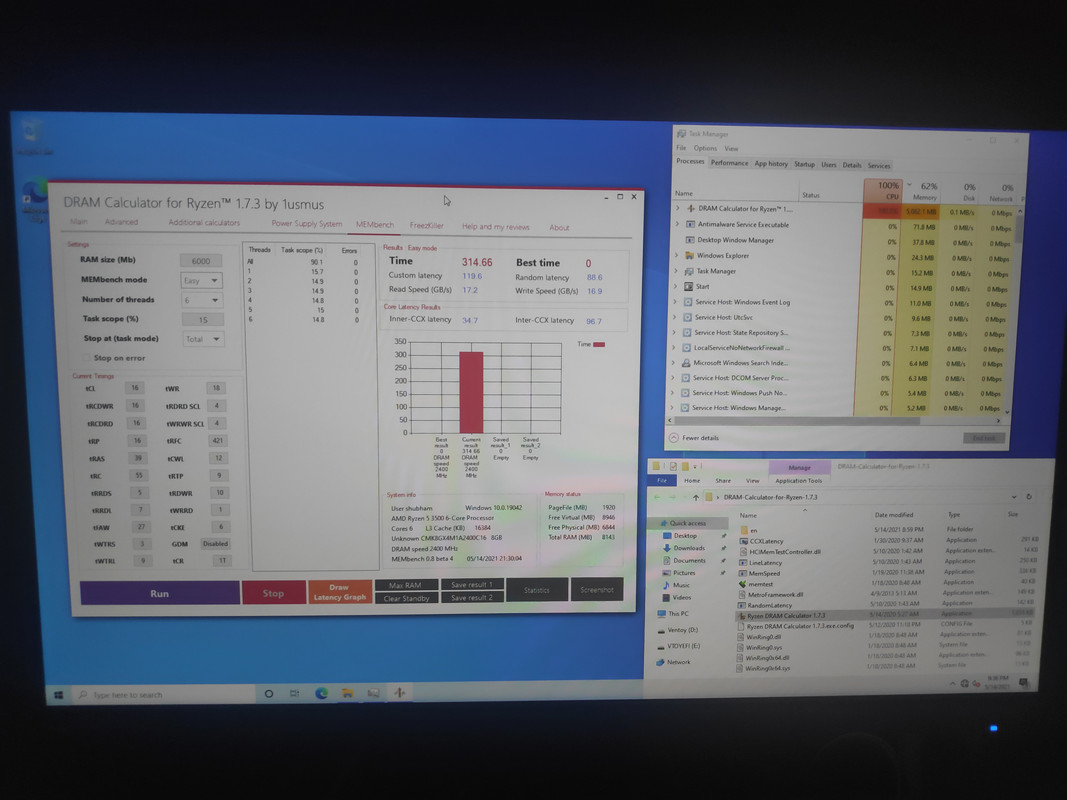

"Here are the screenshots of memory:"
If those SS are of 2 different sticks ( As requested ) I'm happy that they are Ok.

Last edited:

Johnwmel

Great
Jan 21, 2021
243
21
95
1
"other stick i have not tested"
Try it on it's own in the comp, if it boots up Ok, no errors when using the comp, that is a final test.
Same test for the other stick, in other words, only 1 stick at a time.


Colif

Win 10 Master
Moderator
Can you follow option one on the following link - here - and then do this step below: Small memory dumps - Have Windows Create a Small Memory Dump (Minidump) on BSOD - that creates a file in c windows/minidump after the next BSOD

  1. Open Windows File Explore
  2. Navigate to C:\Windows\Minidump
  3. Copy the mini-dump files out onto your Desktop
  4. Do not use Winzip, use the built in facility in Windows
  5. Select those files on your Desktop, right click them and choose 'Send to' - Compressed (zipped) folder
  6. Upload the zip file to the Cloud (OneDrive, DropBox . . . etc.)
  7. Then post a link here to the zip file, so we can take a look for you . . .
note: if you currently have no page file, this won't work as it needs a page file to record to data.


gardenman

Admirable
Moderator
I ran the dump files through the debugger and got the following information: https://jsfiddle.net/Lfy1u02r/show This link is for anyone wanting to help. You do not have to view it. It is safe to "run the fiddle" as the page asks.
File information:051621-2812-01.dmp (May 15 2021 - 13:30:11)
Bugcheck:KERNEL_SECURITY_CHECK_FAILURE (139)
Probably caused by:memory_corruption (Process: msedge.exe)
Uptime:0 Day(s), 0 Hour(s), 01 Min(s), and 32 Sec(s)

File information:051521-2937-01.dmp (May 15 2021 - 09:58:12)
Bugcheck:SYSTEM_SERVICE_EXCEPTION (3B)
Probably caused by:memory_corruption (Process: WMIADAP.exe)
Uptime:0 Day(s), 0 Hour(s), 04 Min(s), and 15 Sec(s)

File information:051521-2890-01.dmp (May 15 2021 - 12:03:44)
Bugcheck:SYSTEM_SERVICE_EXCEPTION (3B)
Probably caused by:memory_corruption (Process: Taskmgr.exe)
Uptime:0 Day(s), 0 Hour(s), 40 Min(s), and 19 Sec(s)

File information:051421-3343-01.dmp (May 15 2021 - 00:08:48)
Bugcheck:PAGE_FAULT_IN_NONPAGED_AREA (50)
Probably caused by:memory_corruption (Process: Taskmgr.exe)
Uptime:0 Day(s), 0 Hour(s), 01 Min(s), and 33 Sec(s)

File information:051421-2890-01.dmp (May 14 2021 - 15:25:31)
Bugcheck:PAGE_FAULT_IN_NONPAGED_AREA (50)
Probably caused by:memory_corruption (Process: dwm.exe)
Uptime:0 Day(s), 0 Hour(s), 01 Min(s), and 32 Sec(s)
Possible Motherboard page: https://www.msi.com/Motherboard/A320M-A-PRO-MAX

This information can be used by others to help you. Someone else will post with more information. Please wait for additional answers. Good luck.


Colif

Win 10 Master
Moderator
You only have 3 drivers running
Oct 17 2008inpoutx64.sysKernel level port access driver http://www.highrez.co.uk/
Feb 07 2019amdgpio2.sysAMD GPIO Controller Driver from Advanced Micro Devices http://support.amd.com/
May 24 2019rt640x64.sysRealtek NICDRV 8169 PCIe GBE Family Controller driver https://www.realtek.com/en/

so that could be part of it.

Did you look on motherboard website after installing windows?

Edge was victim of top crash, I would update lan drivers, 4th link down under windows - https://www.realtek.com/en/component/zoo/category/network-interface-controllers-10-100-1000m-gigabit-ethernet-pci-express-software

I would get chipset drivers, you don't have any - https://www.amd.com/en/support/chipsets/amd-socket-am4/a320

what GPU are you using?

last 4 crashes. the victims are all parts of windows, its unusual to see task manager crash. dwm.exe = windows desktop manager, it talks to gpu drivers. not sure what WMIADAP.exe does anymore - https://www.neuber.com/taskmanager/process/wmiadap.exe.html

May 9, 2021
18
0
10
0
I have installed Chipset, Audio, Lan and Graphics drivers:
https://i.postimg.cc/y8r07j2B/Drivers.jpg

But i still got TIMER_OR_DPC_INVALID and KERNEL_SECURITY_CHECK_FAILURE BSOD . Here are the mini dump files created after installing drivers:
https://1drv.ms/u/s!AiF3pMjdcNyJgR1dQCcMpsH6CeFo?e=ziVPGd
Sometimes the windows shuts down without creating mini dump file when error happens.

I am using Nvidia GT1030 Graphic card.

its unusual to see task manager crash.
I had opened the task manager to check the ram usage. maybe thats why it is showing it in the mini dump files.(The mini dump files i have posted above were created when i left the windows idle without opening any application)


gardenman

Admirable
Moderator
I ran the dump files through the debugger and got the following information: https://jsfiddle.net/b7ygx8tp/show This link is for anyone wanting to help. You do not have to view it. It is safe to "run the fiddle" as the page asks.
File information:051821-4921-01.dmp (May 18 2021 - 15:24:18)
Bugcheck:TIMER_OR_DPC_INVALID (C7)
Probably caused by:memory_corruption (Process: System)
Uptime:0 Day(s), 0 Hour(s), 02 Min(s), and 00 Sec(s)

File information:051821-4890-01.dmp (May 18 2021 - 15:36:44)
Bugcheck:KERNEL_SECURITY_CHECK_FAILURE (139)
Probably caused by:memory_corruption (Process: System)
Uptime:0 Day(s), 0 Hour(s), 02 Min(s), and 00 Sec(s)

File information:051821-4875-01.dmp (May 18 2021 - 15:31:46)
Bugcheck:TIMER_OR_DPC_INVALID (C7)
Probably caused by:memory_corruption (Process: System)
Uptime:0 Day(s), 0 Hour(s), 01 Min(s), and 38 Sec(s)
This information can be used by others to help you. Someone else will post with more information. Please wait for additional answers. Good luck.


Johnwmel

Great
Jan 21, 2021
243
21
95
1
Run Dism++
https://www.softpedia.com/get/Tweak/System-Tweak/Dism.shtml

Or,

How to use DISM command tool to repair Windows 10 image
https://www.windowscentral.com/how-use-dism-command-line-utility-repair-windows-10-image
Is Windows 10 giving you a headache? In this guide, we'll show you how to repair the Windows image to allow the System File Checker (SFC) to fix the installation.
DISM - Repair Windows 10 Image
https://www.tenforums.com/tutorials/7808-dism-repair-windows-10-image.html
Using DISM and SFC in Windows 10 to Repair System Files
Repairing Corrupted Windows System Files with SFC and DISM Commands
How to Clean Up Component Store (WinSxS folder) in Windows 10
https://www.tenforums.com/tutorials/82643-clean-up-component-store-winsxs-folder-windows-10-a.html
How to Analyze Component Store (WinSxS folder) in Windows 10
https://www.tenforums.com/tutorials/82638-analyze-component-store-winsxs-folder-windows-10-a.html


Johnwmel

Great
Jan 21, 2021
243
21
95
1
"I tried running ubuntu from a bootable usb but it gets stuck while trying ubuntu(without installing)"
Try this way.

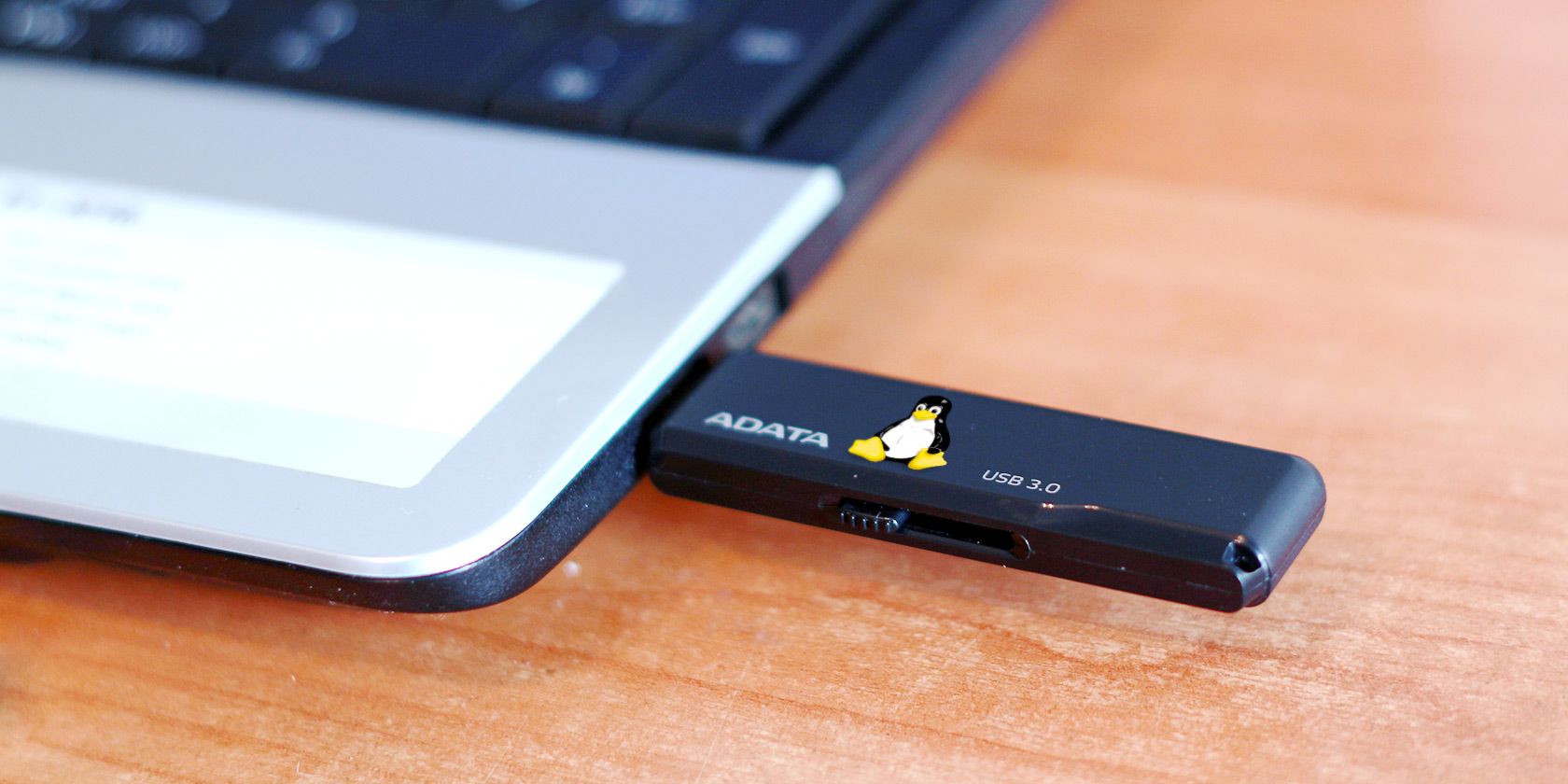

Running Linux From a USB Drive: Are You Doing It Right?
The 5 Best Linux Distros to Install on a USB Stick
