Question GPU clock drops to 300mhz every 5 seconds, after a while of gaming.

[Martim Melo]

I have been having this problem with BD prochot lately, however my gpu and cpu temps are just fine. If i disable this option my GPU "dies" every 5sec.
I have tried everything: bios, drivers, power options, undervolting cpu and gpu.
My guess is either faulty battery or cable, does any one knows?

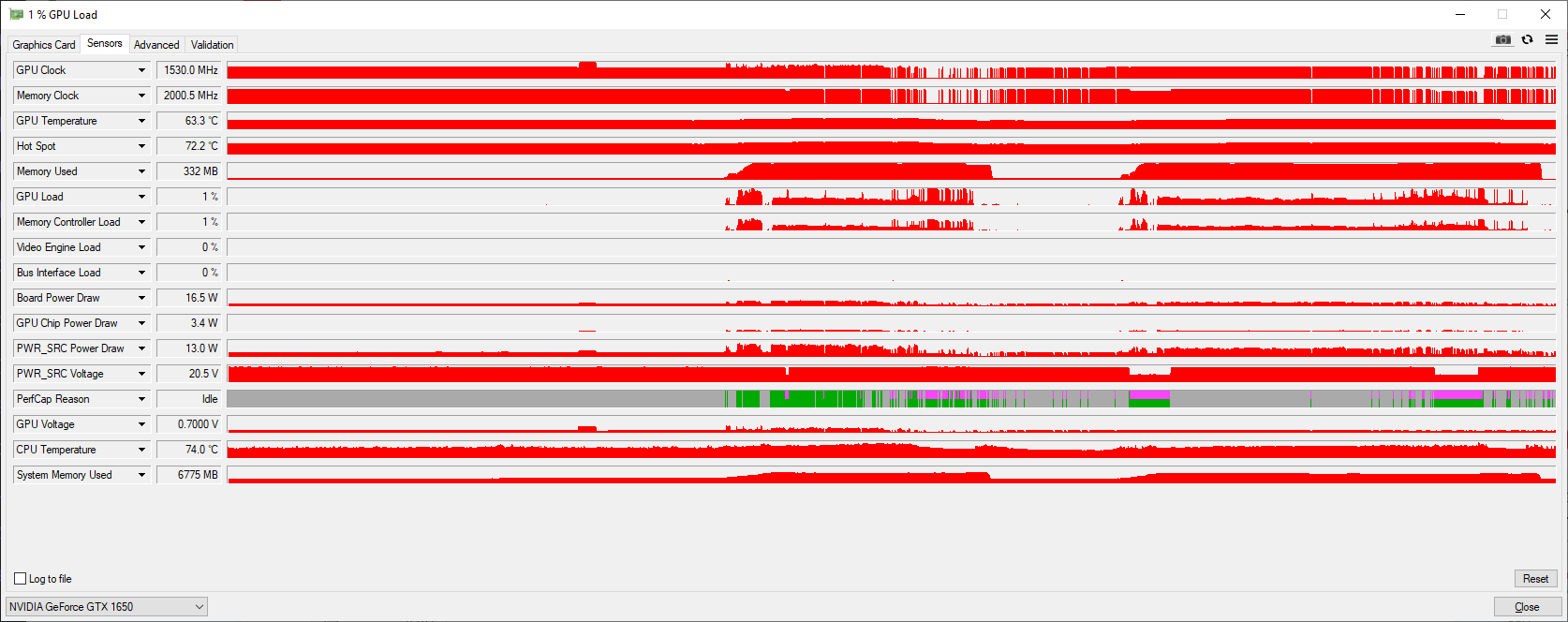

https://gpuz.techpowerup.com/22/08/14/cd7.png

Heres a graph of pc whens its bugging, then i activated bd protocal back.

https://gpuz.techpowerup.com/22/08/14/z5x.png






Lenovo y540

cpu: i7-9750hf
gpu: gtx 1650 laptop



[rgd1101]

what the cpu/gpu/ram/ssd usage during the game?



[Phaaze88]

The pink/red bars in Perfcap Reason are thermal warnings...
I guess near the tail end of the graph is when you turned prochot back on?

What are the max values(gotta click the drop down arrow and select it)?



[Martim Melo]

Thank you for the fast reply!

Here are the logs:
https://file.io/CeHSkp2ii6RE
U can see when i activate BD prochot there, i ativated and deactivated a few times to test it, i also unpluged and pluged back the laptop.
The temps dont go much higher than 75, wich i think are pretty standard.

Its also possible to see when the GPU "crashes" every 5seconds at 300mhz (around 17:36).


The cpu if i disable bd prochot it doesnt change the clock, however if i activate it drops to the lowest possible (8x0.78).

Also if my PC is on battery alone this will happen much faster. (plugged after a few minutes, unplugged almost instant).



[Phaaze88]

There's a faulty sensor, or another part of the gpu is overheating - one that isn't shown among Gpu-Z's sensors.
Dust out the laptop fans, and elevate the back end for better ventilation.

Battery mode is expected to perform worse. It's prioritizing battery life.



[Martim Melo]

Maybe hwinfo64 logs will help (last colums),

https://we.tl/t-xTDwFDZbXk


I already did that, i even repasted the PC. Sadly didnt make a difference.



[Phaaze88]

More or less showing the same things as Gpu-Z, so nothing out of the ordinary.

May need to have Lenovo or a shop take a look at it. There is some kind of throttling going on.
