Question I'm getting low FPS with a good PC ?

[Suquey1901]

Hello, I think I have a problem because given my configuration I should have a lot more FPS in my games.

I checked the temperatures and it's more than good.

For the SSD it is:

Crucial P3 1TB M.2 PCIe Gen3 NVMe CT1000P3SSD8

The power supply is a cooler master mwe 750w v2
The ram is lexar hades ddr4 16gb in 2x8 and 3600mhz
The case is the h6 flow
The cooler is the Thermalright Peerless Assassin 120 SE
The graphics card is the rx 6950xt xt model xfx merc
The processor is an i5-12400f
The motherboard is the msi tomahawk b760 wifi d4

thank you to those who will help me
i play in 1440p



[punkncat]

Go to Userbenchmark and run that test without any aftermarket frame counters on, such as Afterburner. Don't change anything else in relation to what you would have open for the game or games in question. IE- have the game launcher loaded up, just not the game. Leave any other companion programs going as well such as Discord or w/e.

Post the link that comes afterward here. AND before it starts, I am not looking at it for some exceptional faith in the results it returns for performance, just some of the info it gives in one place instead of asking a bunch of questions.

Thanks



[General_Cool]

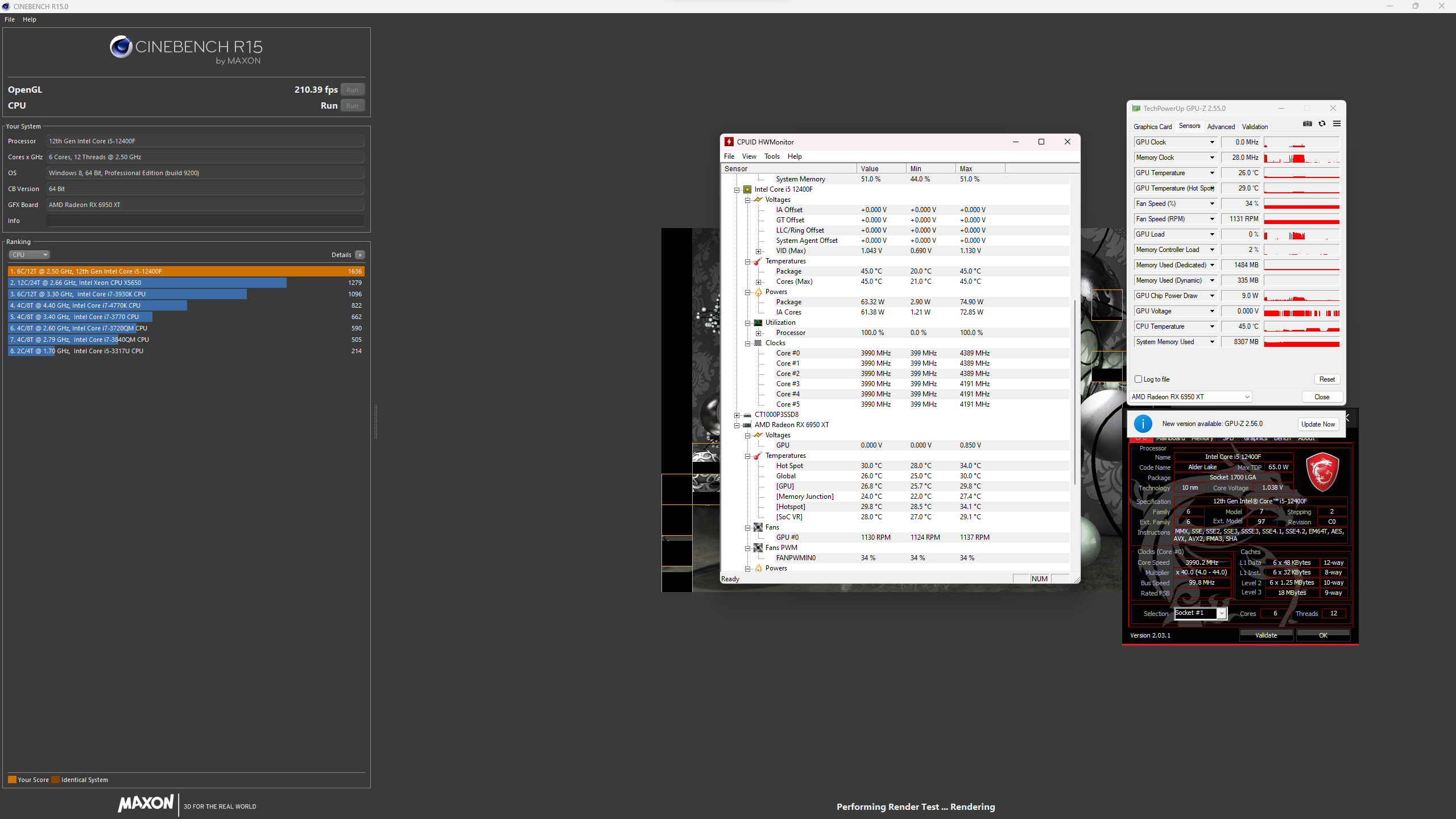

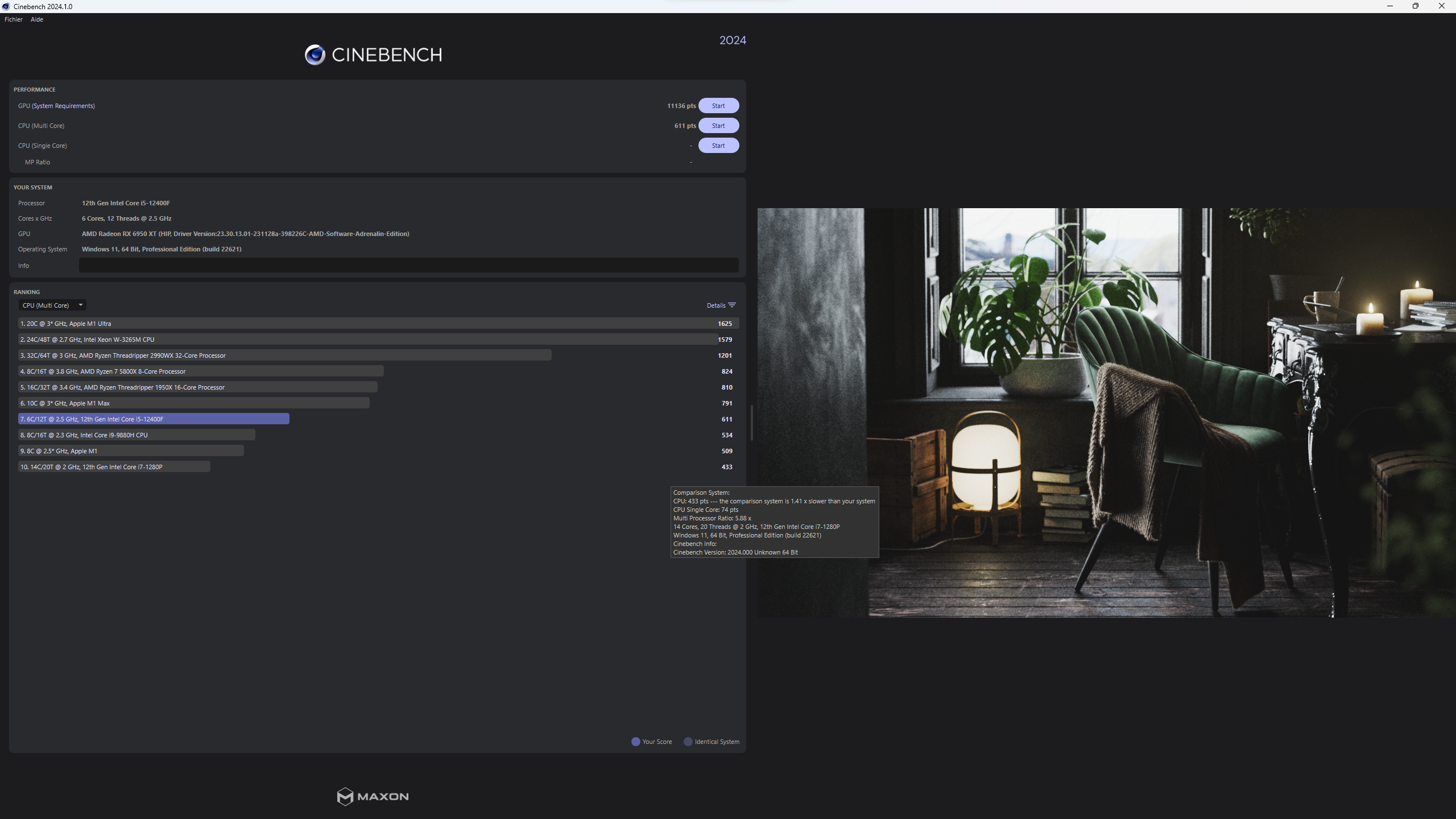

Go ahead and download Cinebench and FurMark and give your CPU and GPU a stress test. Check the scores. It will give you a comparison to the average of other CPUs and GPUs. Post the two scores here.

Have you checked to make sure your monitor's refresh rate is set properly? What is it rated for? Sometimes windows will set a monitor's refresh rate to the lowest supported and people play games with v-sync enabled, so it'll appear as if you're struggling to get high FPS when in reality Windows is screwing you. System>Display>Advanced display, and from the drop down that says "choose a refresh rate" select the highest number from the drop down.



[Suquey1901]

https://www.userbenchmark.com/UserRun/66947305



[Suquey1901]

how can i send pictures ?

Go ahead and download Cinebench and FurMark and give your CPU and GPU a stress test. Check the scores. It will give you a comparison to the average of other CPUs and GPUs. Post the two scores here.

Have you checked to make sure your monitor's refresh rate is set properly? What is it rated for? Sometimes windows will set a monitor's refresh rate to the lowest supported and people play games with v-sync enabled, so it'll appear as if you're struggling to get high FPS when in reality Windows is screwing you. System>Display>Advanced display, and from the drop down that says "choose a refresh rate" select the highest number from the drop down.



[General_Cool]

how can i send pictures ?

You can upload them to Imgur or Imgbb and post the links here.



[Suquey1901]

https://gpuscore.top/furmark/show.php?id=1363835



[Suquey1901]

https://imgur.com/all

View: https://souhil782.imgur.com/all/?third_party=1



[Suquey1901]

You can upload them to Imgur or Imgbb and post the links here.

can you see it ?



[General_Cool]

can you see it ?

Got the Furmark, not the Imgur. Try Imgbb.



[Suquey1901]

https://ibb.co/vcwFDPn

Capture-d-cran-2024-01-08-121243 hosted at ImgBB

Image Capture-d-cran-2024-01-08-121243 hosted in ImgBB

ibb.co

https://ibb.co/xCsdZdm

Capture-d-cran-2024-01-08-123547 hosted at ImgBB

Image Capture-d-cran-2024-01-08-123547 hosted in ImgBB

ibb.co

https://ibb.co/VL4mrxN

Capture-d-cran-2024-01-08-123732 hosted at ImgBB

Image Capture-d-cran-2024-01-08-123732 hosted in ImgBB

ibb.co

https://ibb.co/SJZgfVv

Capture-d-cran-2024-01-08-125129 hosted at ImgBB

Image Capture-d-cran-2024-01-08-125129 hosted in ImgBB

ibb.co

https://ibb.co/MpkLDPT

Capture-d-cran-2024-01-08-200631 hosted at ImgBB

Image Capture-d-cran-2024-01-08-200631 hosted in ImgBB

ibb.co

https://ibb.co/FB8MXfx

Capture-d-cran-2024-01-08-201009 hosted at ImgBB

Image Capture-d-cran-2024-01-08-201009 hosted in ImgBB

ibb.co

https://ibb.co/bzd95Qh

Capture-d-cran-2024-01-08-201020 hosted at ImgBB

Image Capture-d-cran-2024-01-08-201020 hosted in ImgBB

ibb.co

https://ibb.co/FXrbQPT

Capture-d-cran-2024-01-09-183729 hosted at ImgBB

Image Capture-d-cran-2024-01-09-183729 hosted in ImgBB

ibb.co

https://ibb.co/PzqJ65C

Capture-d-cran-2023-12-26-195256 hosted at ImgBB

Image Capture-d-cran-2023-12-26-195256 hosted in ImgBB

ibb.co

there is a lot of pictures sorry



[General_Cool]

https://ibb.co/vcwFDPn

Capture-d-cran-2024-01-08-121243 hosted at ImgBB

Image Capture-d-cran-2024-01-08-121243 hosted in ImgBB

ibb.co

https://ibb.co/xCsdZdm

Capture-d-cran-2024-01-08-123547 hosted at ImgBB

Image Capture-d-cran-2024-01-08-123547 hosted in ImgBB

ibb.co

https://ibb.co/VL4mrxN

Capture-d-cran-2024-01-08-123732 hosted at ImgBB

Image Capture-d-cran-2024-01-08-123732 hosted in ImgBB

ibb.co

https://ibb.co/SJZgfVv

Capture-d-cran-2024-01-08-125129 hosted at ImgBB

Image Capture-d-cran-2024-01-08-125129 hosted in ImgBB

ibb.co

https://ibb.co/MpkLDPT

Capture-d-cran-2024-01-08-200631 hosted at ImgBB

Image Capture-d-cran-2024-01-08-200631 hosted in ImgBB

ibb.co

https://ibb.co/FB8MXfx

Capture-d-cran-2024-01-08-201009 hosted at ImgBB

Image Capture-d-cran-2024-01-08-201009 hosted in ImgBB

ibb.co

https://ibb.co/bzd95Qh

Capture-d-cran-2024-01-08-201020 hosted at ImgBB

Image Capture-d-cran-2024-01-08-201020 hosted in ImgBB

ibb.co

https://ibb.co/FXrbQPT

Capture-d-cran-2024-01-09-183729 hosted at ImgBB

Image Capture-d-cran-2024-01-09-183729 hosted in ImgBB

ibb.co

https://ibb.co/PzqJ65C

Capture-d-cran-2023-12-26-195256 hosted at ImgBB

Image Capture-d-cran-2023-12-26-195256 hosted in ImgBB

ibb.co

there is a lot of pictures sorry

Your core voltage on your CPU is extremely low...should be above 1. Have you modified the voltage at all?



[Suquey1901]

Your core voltage on your CPU is extremely low...should be above 1. Have you modified the voltage at all?

no ?



[General_Cool]

no ?

Hop into the BIOS and take some pictures of the voltage settings. You don't need to change anything CPU related for now, but make sure XMP profile is enabled for your RAM if it is not, as that will immediately make a major difference.



[Suquey1901]

https://ibb.co/m6WdJXd

20240109-223740 hosted at ImgBB

Image 20240109-223740 hosted in ImgBB

ibb.co

xmp is activated.



[Suquey1901]

https://ibb.co/jJdHxVQ

20240109-223740 hosted at ImgBB

Image 20240109-223740 hosted in ImgBB

ibb.co



[Suquey1901]

20240109-223808 hosted at ImgBB

Image 20240109-223808 hosted in ImgBB

ibb.co



[General_Cool]

https://ibb.co/jJdHxVQ

20240109-223740 hosted at ImgBB

Image 20240109-223740 hosted in ImgBB

ibb.co

Voltage looks quite normal here for a stock i5-12400F after further research.

What are you expecting in game versus actually getting in terms of FPS?



[Suquey1901]

in warzone i get around 90-120 fps in low settings
i think this is very bad no ?



[General_Cool]

in warzone i get around 90-120 fps in low settings
i think this is very bad no ?

Yea that's extremely bad...the 6950 XT has been tested to show similar numbers to the RTX 4090. Based upon the Userbenchmark it appears that your CPU is the problem. What kind of temps are you getting while running warzone?



[Suquey1901]

cpu temps ?



[General_Cool]

cpu temps ?

Yes, but GPU temps would be good to watch as well.

I forgot to ask, how is the RAM installed on your motherboard? What slots are they in? Your issue could be the RAM running in single channel, which would make your i5-12400F feel like an i5-2400...



[Suquey1901]

gpu : around 60-65° C
cpu : 50° C
my ram is installed in slots A2 B2



[Suquey1901]

Capture-d-cran-2024-01-09-232438 hosted at ImgBB

Image Capture-d-cran-2024-01-09-232438 hosted in ImgBB

ibb.co



[Suquey1901]

this is my mobo manual
should i put my ram in channel A ?
