[SOLVED] My Audio Is Not Working, Help

[NeedsanewusernameSoftware]

If I plug my earphone on the front panel, only one out of two earphone plugs gives me sound output. And the audio jack at the back panel doesn't give any sound at all (I also tried the other holes). Is there anything wrong? Pics attached below, will give any settings screenshot if needed.



[kerberos_20]

those holes can be configured in realtek audio manager, on right side u click colored hole and you can change to what that hole will be



[Gerald.nsn]

Hi,
Check if the earphone is not the problem. Did you try them on another device?
let me know



[NeedsanewusernameSoftware]

Hi,
Check if the earphone is not the problem. Did you try them on another device?
let me know

Yes, Earphone is not the problem, it happened on multiple earphones. When I plugged my earphones on my phone, they work normally



[NeedsanewusernameSoftware]

those holes can be configured in realtek audio manager, on right side u click colored hole and you can change to what that hole will be

The problem is that they don't give sound output



[dwd999]

A minor point, but the normal format is 16 bit, either DVD Quality or CD Quality.



[dwd999]

Also, what specific model are these earphones?



[NeedsanewusernameSoftware]

Also, what specific model are these earphones?

I have multiple earphones. Local brands. The brands are probably unknown to you.



[dwd999]

I'm asking because you mentioned that the earphones work with your phone. Are these earphones including microphones with a TRRS plug, which will never work with a computer? How many rings are there in the plug?



[NeedsanewusernameSoftware]

I'm asking because you mentioned that the earphones work with your phone. Are these earphones including microphones with a TRRS plug, which will never work with a computer? How many rings are there in the plug?

How do I see if they are "TRRS" or not?

They all have 3 rings. Usually white or black rings.



[kerberos_20]

How do I see if they are "TRRS" or not?

They all have 3 rings. Usually white or black rings.



[dwd999]

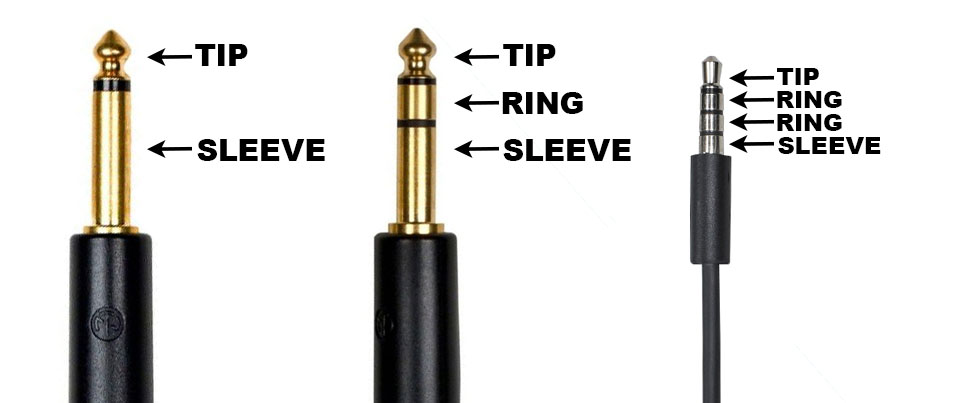

The one in the middle is the correct design for a computer, tip, ring, sleeve. The one on the right is for a phone.



[NeedsanewusernameSoftware]

The one in the middle is the correct design for a computer, tip, ring, sleeve. The one on the right is for a phone.

I'm sorry, what?



[kerberos_20]

I'm sorry, what?

TRS = Tip, Ring, Sleeve
TRRS = Tip, Ring, Ring, Sleeve
see picture above



[NeedsanewusernameSoftware]

TRS = Tip, Ring, Sleeve
TRRS = Tip, Ring, Ring, Sleeve
see picture above

Pictures? No pics here



[Deleted member 14196]

If you can’t see the picture he posted when you have more problems than just audio



[NeedsanewusernameSoftware]

If you can’t see the picture he posted when you have more problems than just audio

I'm using my phone. Yeah they all TRRS



[NeedsanewusernameSoftware]

The one in the middle is the correct design for a computer, tip, ring, sleeve. The one on the right is for a phone.

I'm asking because you mentioned that the earphones work with your phone. Are these earphones including microphones with a TRRS plug, which will never work with a computer? How many rings are there in the plug?

They all TRRS, you sure they don't work on computer man?
Cause they definitely worked just fine on my computer before.
And they work just fine on my office computer.



[dwd999]

Most computers require a splitter which splits the microphone and earplugs into the separate jacks found on most computers.

https://www.amazon.com/UGREEN-Headp...tter&qid=1637212213&s=electronics&sr=1-8&th=1



[NeedsanewusernameSoftware]

Most computers require a splitter which splits the microphone and earplugs into the separate jacks found on most computers.

https://www.amazon.com/UGREEN-Headphone-Splitter-Computer-Smartphone/dp/B073ZDDTH2/ref=sr_1_8?keywords=trrs+splitter&qid=1637212213&s=electronics&sr=1-8&th=1

But like I said, they previously worked on my PC.
Also those earphones work just fine on my office PC.



[kerberos_20]

But like I said, they previously worked on my PC.
Also those earphones work just fine on my office PC.

do you have any kind of buttons on your phones? like skip track and such, if yes, try pressing it, see if it alters what you hear



[NeedsanewusernameSoftware]

do you have any kind of buttons on your phones? like skip track and such, if yes, try pressing it, see if it alters what you hear

Can you explain how that solves my problem?
