[JuliusJesse]

Thanks for the tips! Followed them and saved up 8 gb. Earlier on before posting my build, i dived into the properties of the ssd and let windows clean up his stuff and saved 25 gb (!) of space. So i'm good right now.



[mjmjpfaff]

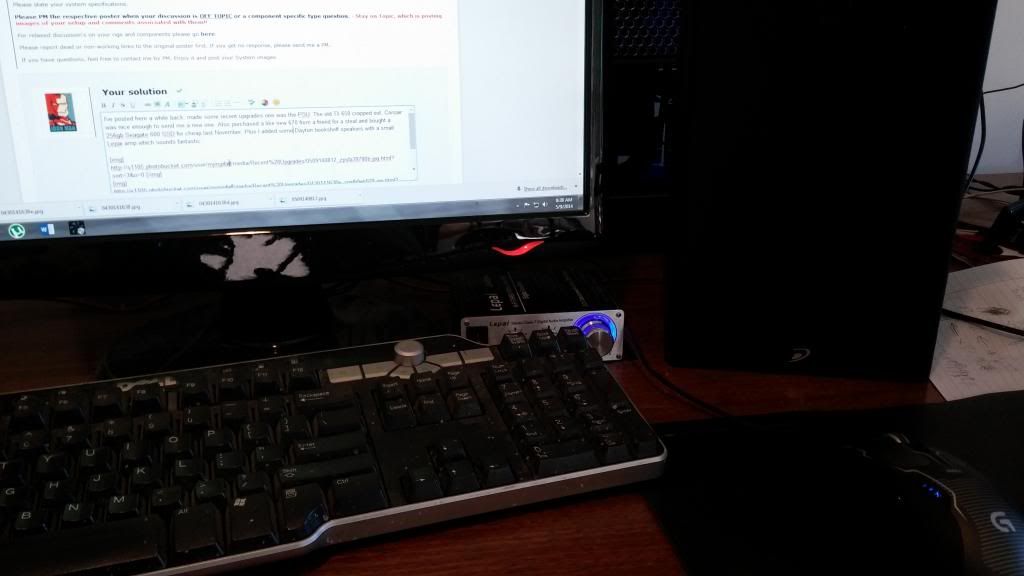

I've posted here a while back, made some recent upgrades one was the PSU. The old TX 650 crapped out, Corsair was nice enough to send me a new one. Also purchased a like new 670 from a friend for a steal and bought a 256gb Seagate 600 SSD for cheap last November. Plus I added some Dayton bookshelf speakers with a small Lepai amp which sounds fantastic. Sorry for the cell phone pics, but the LG G2 doesn't take too terrible oics for the bad lighting:









Specs:
i5 2500k @ 4.2ghz
Asrock P67 Extreme4
Hyper 212 Plus
Corsair XMS3 8gb @ 1600mhz
Asus GTX 670 Direct CUII (not overclocked, yet)
Corsair TX650
WD 640gb Black HDD
Seagate 600 256gb SSD
Antec 1100
Dayton Audio B652
Lepai LP-2020A+
Logitech G500s



[Andrew Rohlfs]

Here it is!



[tech-wreck]

introducing... the iHack

Full build log here



[stickg1]

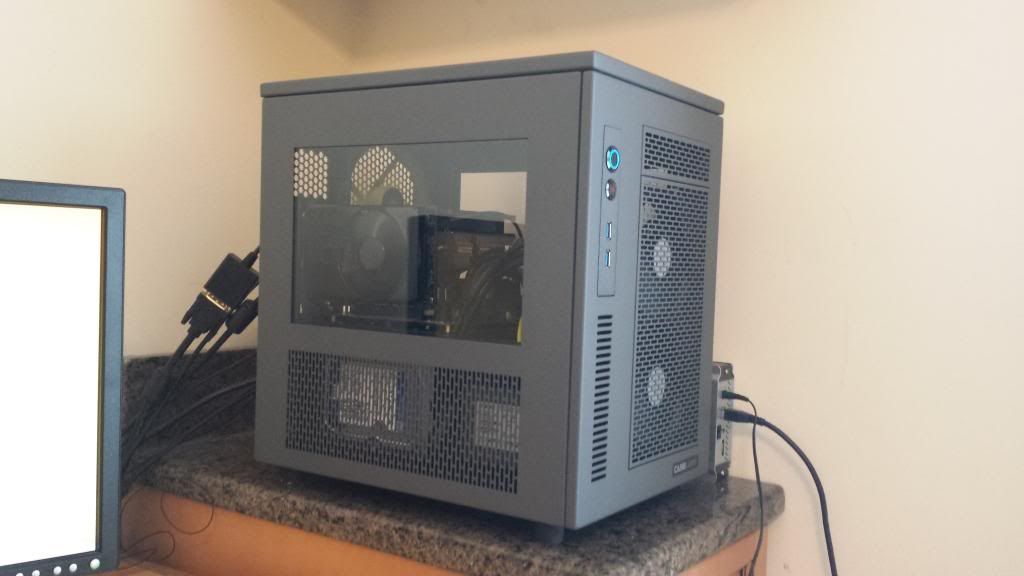

One I've been working on..



[FunkTheWorld]

Nothing too fancy here (wiring also isn't perfect, but it's better than it was before haha), but here's my setup and some shots of my rig

Specs:

GPU: Gigabyte Windforce GTX 780 OC Edition 3GB DDR5
CPU: Intel i5-3570K @ 3.4GHz
Memory: 8GB G. Skill Sniper Series RAM
Heatsink: CoolerMaster Hyper 212 EVO
PSU: Antec 620W PSU
Motherboard: ASRock Z77 Extreme3
Storage: 120GB Samsung EVO SSD
Storage: 1TB WD Caviar Black HDD
Case: NZXT Phantom 410
LED lights: NZXT Hue LED Lights
OS: Windows 8.1
Keyboard: Corsair Raptor K30
Mouse: Logitech G602

Wallpapers (from MKBHD's Google Drive):
goo.gl/47WX0

All shots taken with my iPhone 5S



[MadMetalGuy]

This is my gaming/editing rig and setup 😀

Specs:
MOBO: Asus M5A97 R2.0
CPU: AMD FX-8350 @4GHz
RAM: 8GB DDR3 1600MHz Patriot
GPU: EVGA GTX 660 SuperClocked
SSD: Kingston HyperX 3K 240GB
HDD: Toshiba 1TB
PSU: 550w 80+ Bronzez
Other things:
2x 120MM Fans on front panel for intake
1x 140MM fan on top for intake
1x 120MM fan on rear for exhaust



[dansgas1000]

Your builds make me jealous!



[MadMetalGuy]

Madmetal, glad to see pretty decent cable management despite the lack of a modular psu. I see people on here with modular psu and a cable management friendly case that have worse management. Just goes to show there is NO EXCUSE for poor cable management. Well done sir!

i just re did the system with a new Semi Modular PSU
got the corsair CX600M but sadly i still had to use all the cables due too my MOBO not having enough fan headers for the front two and the top and rear fans so i just used Molex for the front fans
And i had to use all the sata power connectors even though each cable has three connectors i couldnt make the DVD drive fit while having my SSD/HDD down at the bottom i like having better cable management but i like better airflow more and that GTX 660 Idles at 28-34 thanks to my front fans not being blocked by my drives

this is just my first go at cable management im going to rewire everything and try to make it work better soon



[JakeTheITGuy]

Hope you like it!
http://pcpartpicker.com/b/Xfr7YJ



[danielcai]

Here's my newly built rig! I already had the Prodigy so I had to stick with that.
Logo:

Pictures:

Showcase/Build Video:
YouTube video

Specs:
PC Part Picker list
CPU: Intel Core i5-4690 3.5GHz Quad-Core Processor - $247.00
Motherboard: Asus H97I-PLUS Mini ITX LGA1150 Motherboard - $129.00
Memory: G.Skill Ares Series 8GB (2 x 4GB) DDR3-1600 Memory - $97.00
Storage: Sandisk X110 128GB 2.5" Solid State Drive - $85.00
Storage: Western Digital Caviar Blue 1TB 3.5" 7200RPM Internal Hard Drive - $64.00
Video Card: MSI Radeon R9 270 2GB TWIN FROZR Video Card - $209.00
Operating System: Microsoft Windows 8.1 Pro (OEM) (64-bit) - FREE!
Mouse: Thermaltake MO-SPH008DT Wired Optical Mouse - $49.00
Keyboard: Thermaltake Tt eSports Knucker Plunger Switch Gaming Keyboard - $42.00
Case: BitFenix PRODIGY Green Mini-ITX Case - $83.00
PSU: FSP Aurum 550W 80+ Platinum Modular PSU - $109.00
Fan: Casecom (CAC-12CMGREEM) Green LED 12cm Molex Fan - $11.00
Cooler: Cooler Master Hyper TX3 EVO Universal CPU Cooler - $24.00
Total: $1149.00

I'll see if I can get some pictures up soon...



[Pcbuilder123]

Here ya go. Received my blue NZXT led kit today and getting my phantom 240 tomorrow

2gb Hd-7770
Ga78lmt-usb3
Fx4300 w/ hyper tx3
Cx430 v2 (upgrading next month or an all in one liquid cooler)
8gb ddr3 1333mhz
2tb Seagate Green
120gb PNY xlr8 ssd
Rosewill ranger m that I am upgrading tomorrow



[Mirakledba]

danielcali and pcbuilder123 - Nice rigs guys! I miss my PC now.



[Pcbuilder123]

Just finished case upgrade! Hell yeah!



[Joseph DeGarmo]

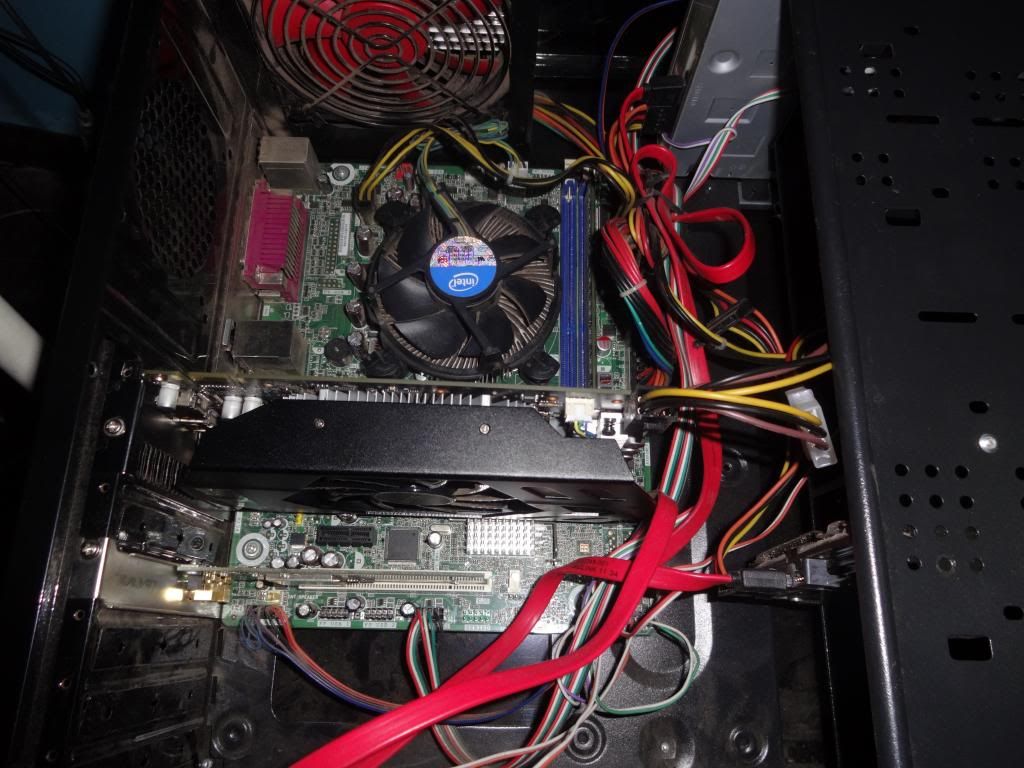

My entertainment setup can be a mess sometimes, but this is a broad picture of it. A 2011 prebuilt PC with some modifications, including SSD, video card, PSU, and Windows 8.1.

Model: HP Pavilion Elite HPE-580t
OS: Windows 8.1 Professional 64-bit with Media Center
CPU: Intel Core i7-950 @ 3.07 GHz 8 MB L3 Cache
Motherboard: Pegatron IPMTB-TK X58 LGA1366
GPU: EVGA GeForce GTX 660 SC 2 GB GDDR5
RAM: 12 GB DDR3 3-channel @ 1600 MHz
Hard Drive 1: 180 GB Intel 520-series SSD
Hard Drive 2: 1.5 TB Seagate Barracuda 7200 RPM HDD
PSU: XFX TS Series 550W ATX 80 PLUS Bronze Certified
Optical 1: Blu-ray / DVD RW
Optical 2: DVD R
Display: HP 2509m 25" LCD 1080p @ 60 Hz
Keyboard: Logitech G510
Mouse: Logitech G300
Headset: Logitech G930 7.1 surround
Control Pad: XBOX 360 Gold Chrome Series wireless controller
UPS: APC Back-UPS XS 1500

Please note that the blue tree to the right is a novelty Christmas tree which I keep there all year long as a decoration. The big black box next to the UPS is a subwoofer for my home theater system. Also shown is my good old PlayStation 2 game console and some outdated music production software which I don't use anymore. The stacks of blank CDs / DVDs look rather ridiculous, but at least it's a place to store them. And finally, my keyboard has a plastic protective cover on it to keep out dirt, dust, and debris.



[finalruner]

Built this a couple months back, currently my main computer.

Case: NZXT Phantom 630
CPU: AMD Vishera FX 6300 4.0Ghz
MOBO: Gigabyte GA-78LMT-USB3 Micro ATX AM3+
Ram: 16(4x4gb) Kingston HyperX Blu
Memory: Sandisk Extreme II 120Gb SSD
GPU: MSI GeForce GTX 750 Ti 2GB TWIN FROZR
PSU: XFX TS Series 550W
Monitors: 3x 19" Dell 198WFPV
Other Peripherals:
CM Storm Devastator Mouse and Keyboard Combo
Cyber Acoustics CA-3090 Satellite Speakers

Biggest regret was the gpu from msi, once I got the three monitors I found out it didn't support nvidia surround for gaming 🙁



[mathieub]

Sorry for the image quality I only had my iphone at hand but here is it



[stickg1]

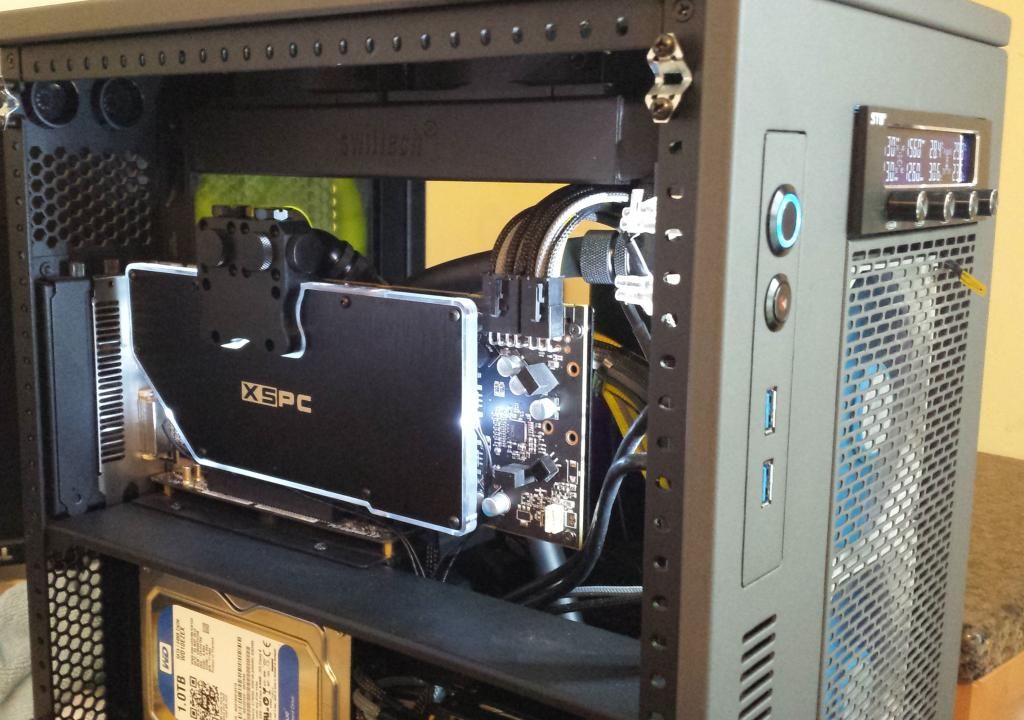

Mine is a work in progress, but here's a little peak!



[40s]

External View with extra wide monitor and mouse and closed front panel
http://imgur.com/uEJy4SU


With front panel open
http://imgur.com/lwSgs0w

Top down interior view
http://imgur.com/oz1pdhb

Components: http://pcpartpicker.com/user/40s/saved/sVR48d


CPU
Intel Core i5-4670K 3.4GHz Quad-Core Processor

CPU Cooler
Noctua NH-D14 65.0 CFM CPU Cooler

Motherboard
Asus Z87-Pro ATX LGA1150 Motherboard

Memory
G.Skill Ripjaws X Series 8GB (2 x 4GB) DDR3-2133 Memory
and
G.Skill Ripjaws X Series 8GB (2 x 4GB) DDR3-2133 Memory

Storage
Samsung 840 Pro Series 256GB 2.5" Solid State Drive
and Seagate Barracuda 2TB 3.5" 7200RPM Internal Hard Drive

Video Card
EVGA GeForce GTX 780 Ti 3GB Superclocked ACX Video Card

Case
Fractal Design Define XL R2 (Black Pearl) ATX Full Tower Case

Power Supply
Corsair 860W 80+ Platinum Certified Fully-Modular ATX Power Supply

Monitor
LG 29EA73-P 60Hz 29.0" Monitor

Keyboard
Logitech K800 Wireless Slim Keyboard

Mouse
Logitech G700 Wireless Laser Mouse

Audio
Denon x4000 receiver with 7.1 speaker setup



[fl-gators-fan]

Upgraded my case from the CM 690II Advanced to the NZXT H440 (white edition) and I couldn't be happier with the way it turned out This is by far the best case I've ever owned. Also added the Corsair H100i AIO with a pair of Corsair PWM high performance edition case fans.

Specs;

NZXT H440 (white edition)

Corsair H100i

Intel I5-3570K CPU overclocked to 4.0 GHz

ASRock Z77 Extreme 6 motherboard

16 GB (8GB x 2) G.Skill Ares Series DDR3 1600 RAM

x2 EVGA GTX 770 SC Titan cooler edition 2 GB Video Cards in 2 way SLI

Corsair Professional Series HX750 watt 80+ gold PSU

Samsung 840 Series 250 GB SSD drive (Games)

Mushkin Chronos 120 GB SSD drive (Primary OS & programs)

Hitachi 1TB 7,200 hard drive

Windows 7 Professional 64 bit

Cooler Master CM Storm Devastator Gaming Keyboard

Cooler Master CM Storm Devastator Gaming Mouse

Roccat Sense Chrome Blue Gaming Mouse Mat

AOC Q2963PM 29" Ultra Widescreen monitor (2560x1080)

x2 EVGA Pro SLI bridges

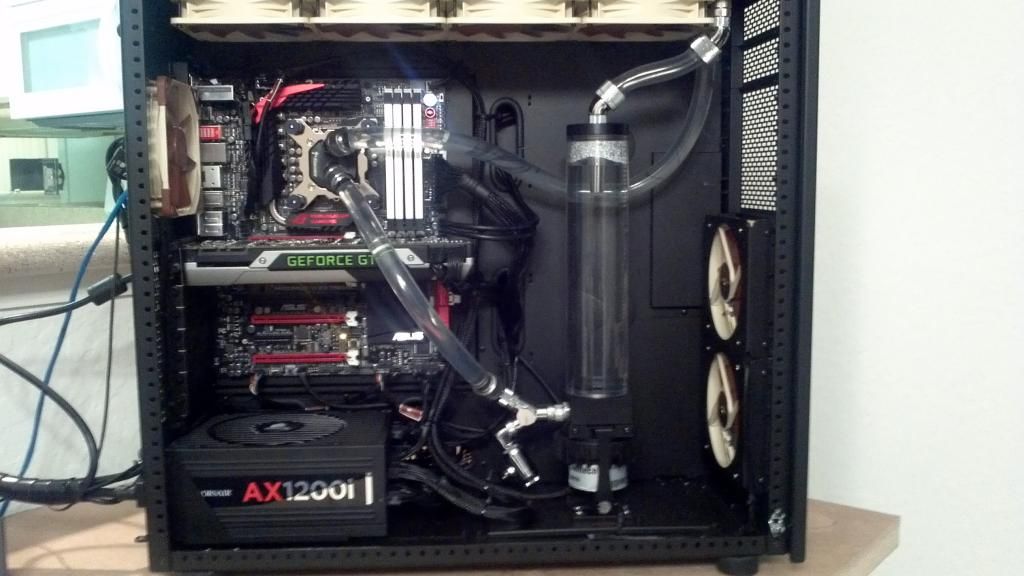

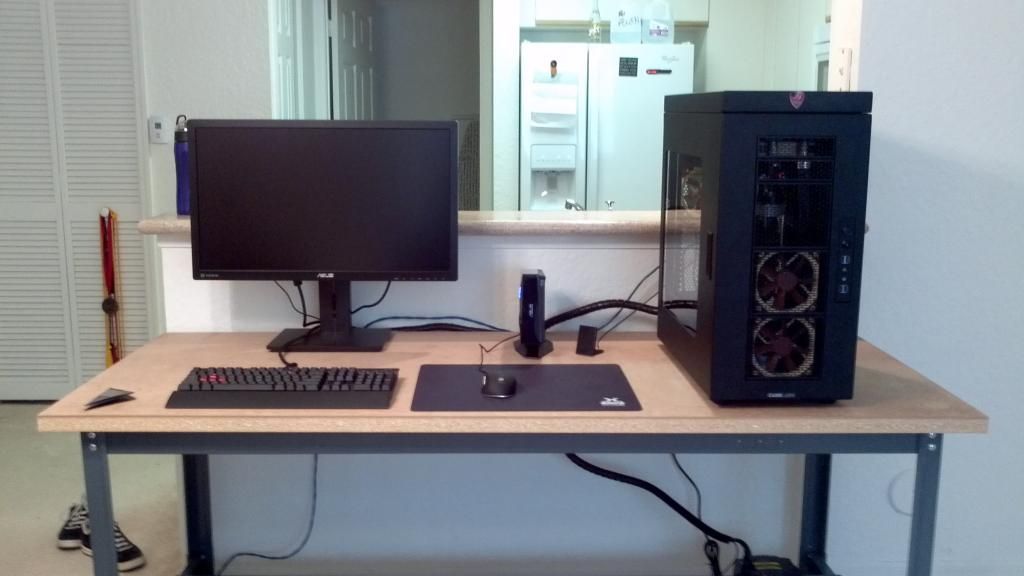

[Jimichrist]

My first build. I call her "Tima".

Specs:

Caselabs Merlin SM8
Intel I 4770 K
Asus Maximus VI Extreme
Corsair Dominator Platinum 1866 4GB x 4
GeForce GTX Titan Black (Overclocked)
Corsair AX 1200i PSU
Samsung 840 Pro 250 GB SSD x 2
Western Digital 7200 1 TB HDD
Asus External Optical Drive
Asus PB278 27" 2560x1440 Monitor (IPS)
Corsair Vengeance K70 Keyboard
Corsair Vengeance M95 Mouse

Cooling

Koolance CPU-380I Waterblock
Primochill 1/2" ID x 3/4" OD Tubing
Bitspower Compression Fittings
Bitspower D5 Top 250 Res
Swiftech MCP655 Pump
Alphacool NexXxos UT60 480mm Rad
Noctua NF-P12 x 4
Noctua NF-S12A x 3



[Rally0078]

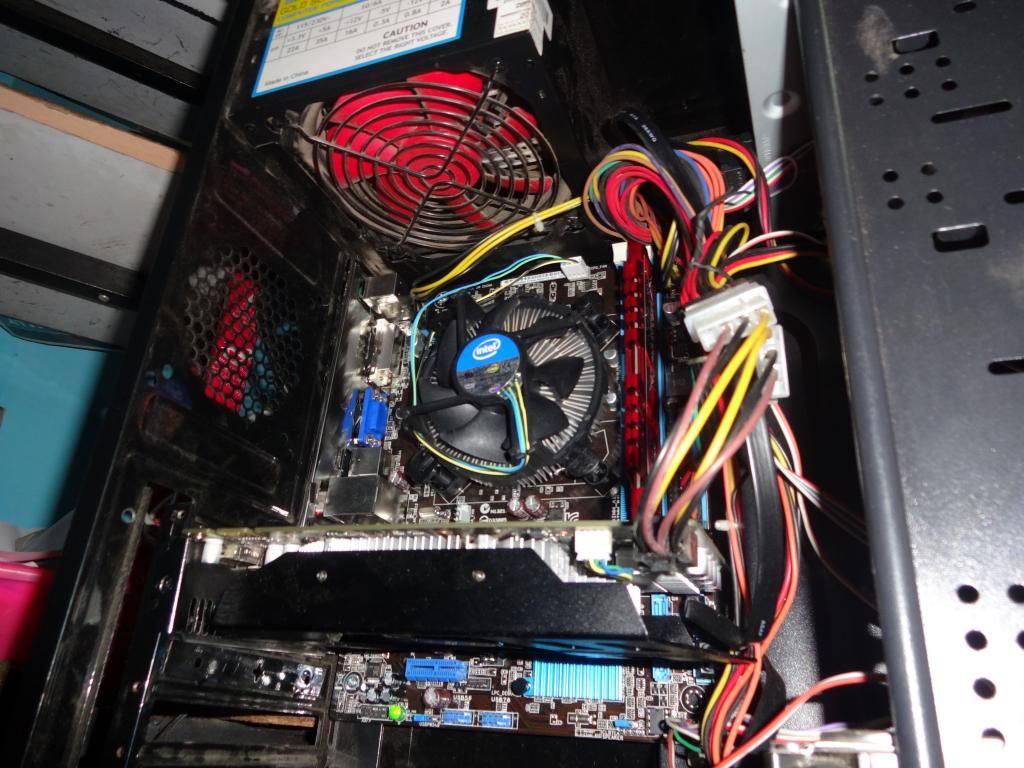

My Rig:
intel Core i3 2120
Zotac Nvidia GTX 660
G.Skill 8 GB RAM 1x8 GB DDR3 @1333
Edit: i cnanged my motherboard to an Asus H61M - K



[danielcai]

My build recently got featured in Issue #230 of PCPowerPlay Magazine Australia in their MyPC section! I won a set of Corsair Vengeance 1500's! 😀



[Rally0078]

Nice going man, congrats!



[stickg1]

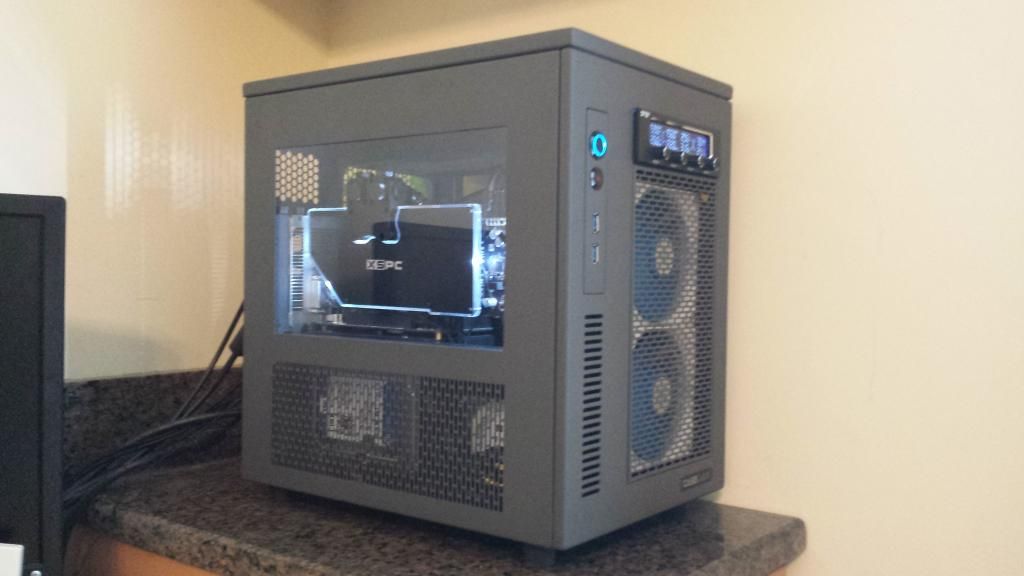

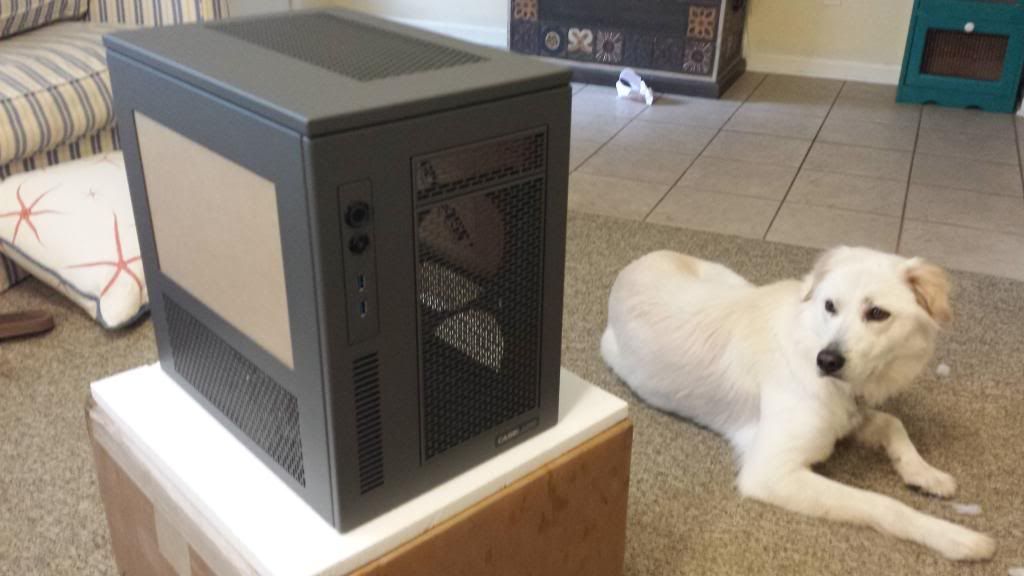

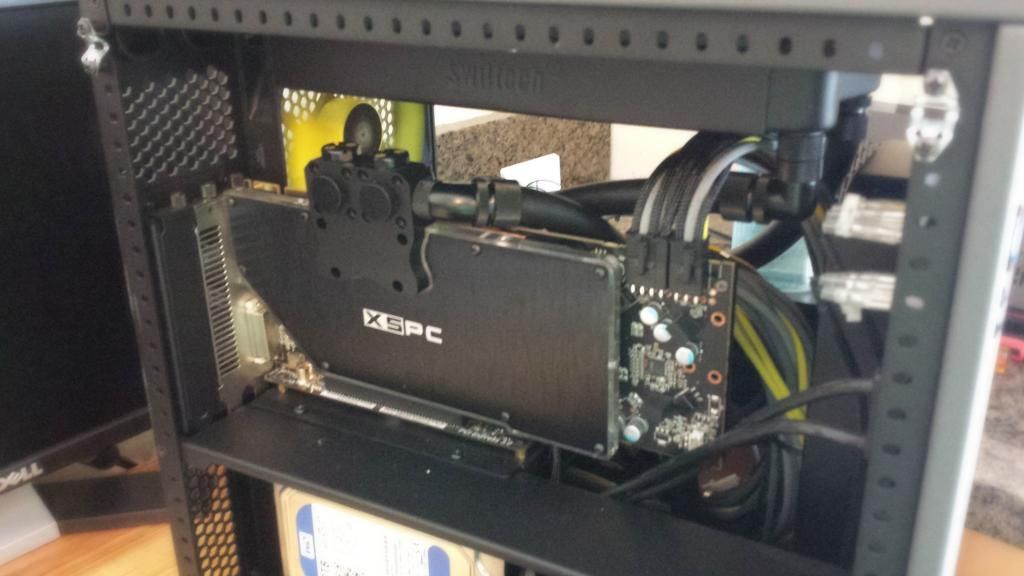

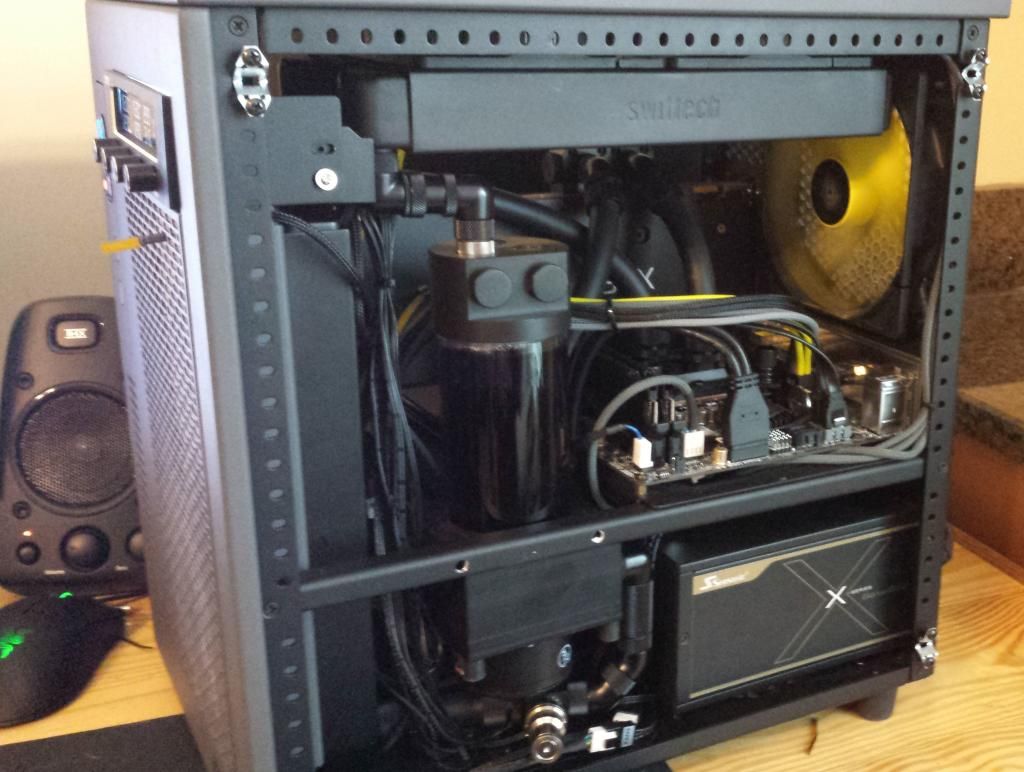

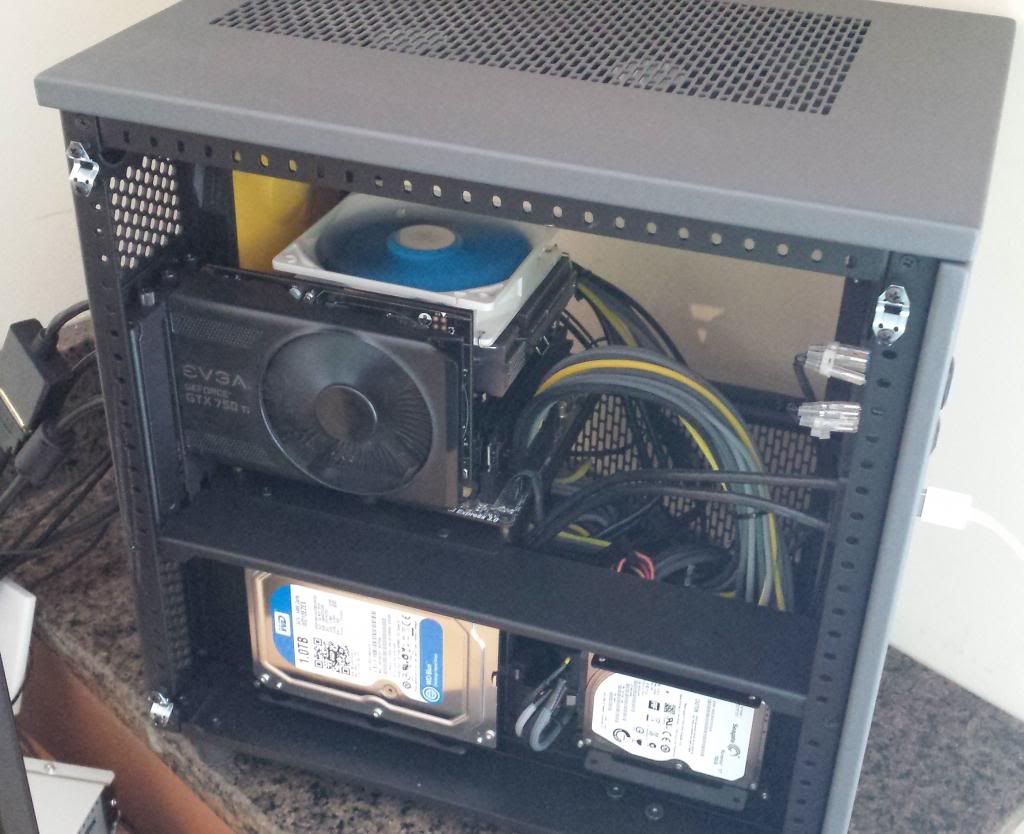

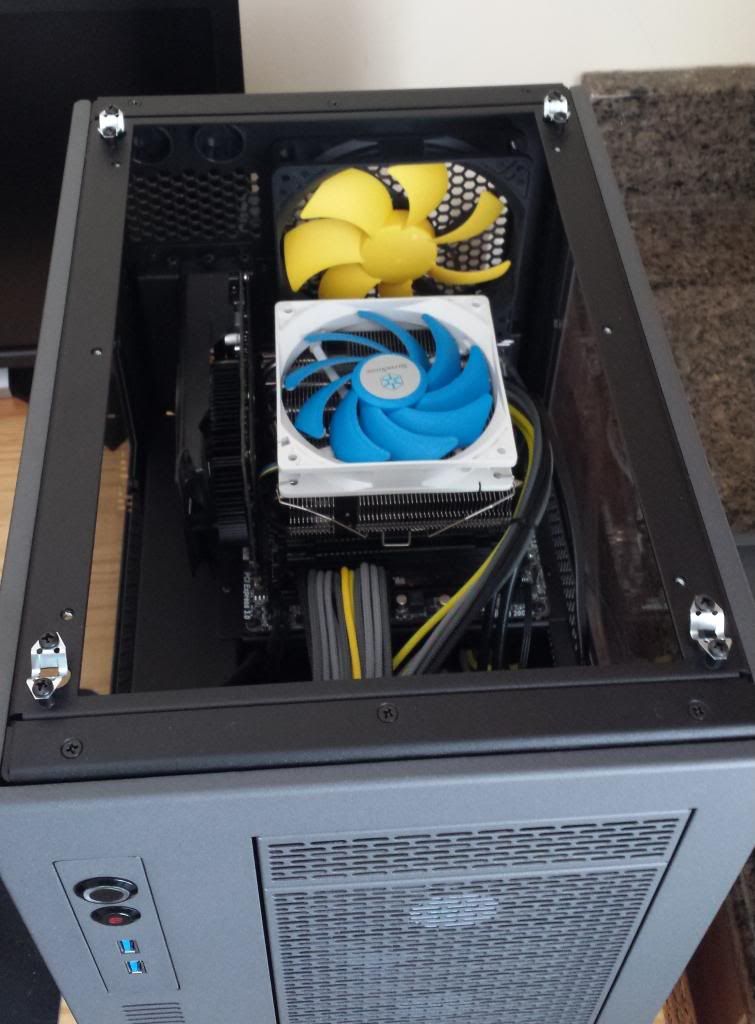

Another stickg1 entry, my current mITX build..
