[Lutfij]

But they fit the bill perfectly - hassle free setup. On the plus side, you're using a Z-tank, correct? Your res is compatible with the bracket/mount since they are also made by Bitspower.

the other side to this story is though ti may be expensive, you could make one by yourself but know this each tool/gadget has its place and right about now, that res mount looks to be your ticket to a cleaner tubing layout.

Who says you can't look good while performing those clocks? 😉



[stickg1]

But they fit the bill perfectly - hassle free setup. On the plus side, you're using a Z-tank, correct? Your res is compatible with the bracket/mount since they are also made by Bitspower.

the other side to this story is though ti may be expensive, you could make one by yourself but know this each tool/gadget has its place and right about now, that res mount looks to be your ticket to a cleaner tubing layout.

Who says you can't look good while performing those clocks? 😉

Do you know of a single piece D5 pump housing that's threaded to take a tube res on the other side of it?

I don't have a lot of space in this mid tower case so if I center that res on that radiator I wont have any room for my pump without being out in the open or directly underneath the tube res.



[Lutfij]

You can't fit just any tube but you can get it with a tube 😛 sorry - Aquacomputer Aqualis with D5 attachment - won't come cheap $200+



[Christopher Gonzalez]

i7 4770k - ASUS Maximus VI Hero,
CORSAIR H100i Water Cooler,
CORSAIR Vengeance 16GB (2 x 8GB),
Galaxy GTX 680 2GB
Samsung 840 500GB (OS)
Crucial M4 256GB (games),
WD VelociRaptor 600Gb 10000 RPM - data
WD Black 1TB - data
SeaSonic X Series X-850,
Corsair Carbide Series Air 540,
Dell 3007WFP (30in) @2560x1600

Hey I'm getting the same build!!! 4770 and Hero. I'm getting the 770 HOF though, but that's supposed to be the equivalent of the 680! How's it working for you?

This PC is rock solid and the gaming is great. The 680/770 is a really powerful card, and is really the first video card where I can run my games at the full resolution of my monitor (30in @2560x1600) without turning turning down the aliasing or other quality features.

This case is awesome (review here - http://www.hardocp.com/article/2013/07/07/corsair_carbide_series_air_540_computer_case_review/#.UjymwxAre0I) - I would highly recommend it. Super cool, and the easiest build i ever did.
My only regret is the Corsair 100i cooler. I should have gone for the Corsair 110. While the 100i does cool very well, the software just does not cooperate with Window 8..

Can I ask, what monitor are you using? It sounds awesome! How is the color?



[fl-gators-fan]

Here is a few updated shots of my gaming rig. Since I last posted I've added a Samsung 840 250gb SSD drive for games only, 4 of the new Corsair Air Series fans & x2 of the new EVGA Pro SLI bridges (I know they don't light up with my 2 GTX 670's, but man do they look sweet!!)

1. Cooler Master 690 II Advanced case
2. Corsair H80i all-in-1 liquid CPU cooler with x2 Corsair SP120 (High Performance Edition) fans
3. Intel I5-3570K Ivy Bridge CPU overclocked to 4.0 GHz @ 1.125 volts (fixed voltage)
4. ASRock Z77 Extreme 6 motherboard
5. 16 GB (8GB x 2) G.Skill Ares Series DDR3 1600 RAM
6. x2 EVGA GTX 670 FTW 2 GB Video Cards in 2 way SLI
7. Corsair Professional Series HX 750 watt 80+ gold fully modular PSU
8. Samsung 840 Series 250 GB SSD drive (Games)
9. Mushkin Chronos 120 GB SSD drive (Primary OS & programs)
10. Hitachi 1TB 7,200 hard drive
11. Samsung Blu Ray combo drive
12. Windows 7 Professional 64 bit

Other components;
13. Razer Cyclosa Gaming Keyboard
14. Razer Abyssus Gaming Mouse
15. Asus VH238H 23" widescreen LED monitor (1920x1080)
16. x2 Corsair AF140 (Quiet Editions) at top of case as intake
17. x2 EVGA Pro SLI Bridges



[UltimateDeep]

Hey there, built my system from various second hand parts last Friday from all over the place in Singapore but tested and runs stably as I hoped.

Parts List:
Fractal Design Define R3
Core i7 2600K OC at 4.4 GHz
ASUS P8P67 M-PRO
Corsair H70 (Push: Lian Li Blue LED Fan, Pull: Corsair Default Fan)
Corsair HX-1000 PSU
Corsair Vengeance RAM: 16GB (2 X 4GB Blacks, 2 X 4GB Blues)
2GB nVidia GeForce PNY GTX 680 2GB
128GB OCZ Vertex 4 - OS and some games
500GB Western Digital Caviar Blue - most STEAM media.
LG DVD Burner
Windows 7 Home Premium

Sorry this pic is abit blur, it's a screenshot from a build log video I did earlier.

Peripherals:
CM Storm Mousepad
CM Storm Recon (Mass Luminosity Edition)
CM Storm Quickfire Rapid.
Philips 222 EL2 Monitor Full HD 1920 x 1080 - For both the Desktop and Laptop.

My Current Notebook - Aftershock X11 / Clevo W110ER - Won from a Raffle.

Specs
Intel Core i7 3630QM
8GB DDR3 1600MHZ RAM
250GB Samsung 840 Non-Pro
2GB DDR3 nVidia GT 650M
11.6' Matte 1366 x 768 Screen

Peripherals:
Some old Mouse - Now replaced with Armaggeddon Aquila X-1
SteelSeries QcK MINI - Still in use but rotate between the Black one and the ASUS / D3 one.



[lp231]

My main system
Intel Xeon X3350 @ 2.66GHz 4C/4T
Asus Rampage Formula
Kingston Hyper X 4GB (4x1GB) DDR2 800MHz
Intel 330 120GB SSD+Western Digital Black 500GB
Western Digital 500GB Blue/2TB Green/2TB Red
Sony IDE DVD Writer
HIS Radeon HD5850
Creative X-Fi Xtreme Music
Asus U3S6 USB 3.0/SATA 6Gb/s card
Antec Quattro 850w
Cooler Master Cosmos
Microsoft Windows 8.1 Pro 64bit with Media Center

Second system
Intel Xeon E3 1225 V3 @3.2GHz 4C/8T (S-spec:SR14U) [4C/4T (SR1KX)]
Asus Z87i Deluxe
G.Skill 8GB DDR3 1600MHz
Western Digital Blue 1TB
MSI HD7750 2GB
Cooler Master 500w
BitFenix Prodigy Red
Microsoft Windows 8.1 Core 64bit



[nukemaster]

I had some spare time so decided to pull a small mod to my FT03 case.

Back fan does not show so it looks stock from the outside

CLICK \/

Spoiler



[tiny voices]

Just re-did the cable management. THIS is how you do cable management with a NON-MODULAR PSU in an mATX case.
The gtx650 is there as a placeholder until I sort out getting GPUs.
The Cooler is a Coolermaster Hyper T4 with an NZXT and a Rosewill fan in push-pull.

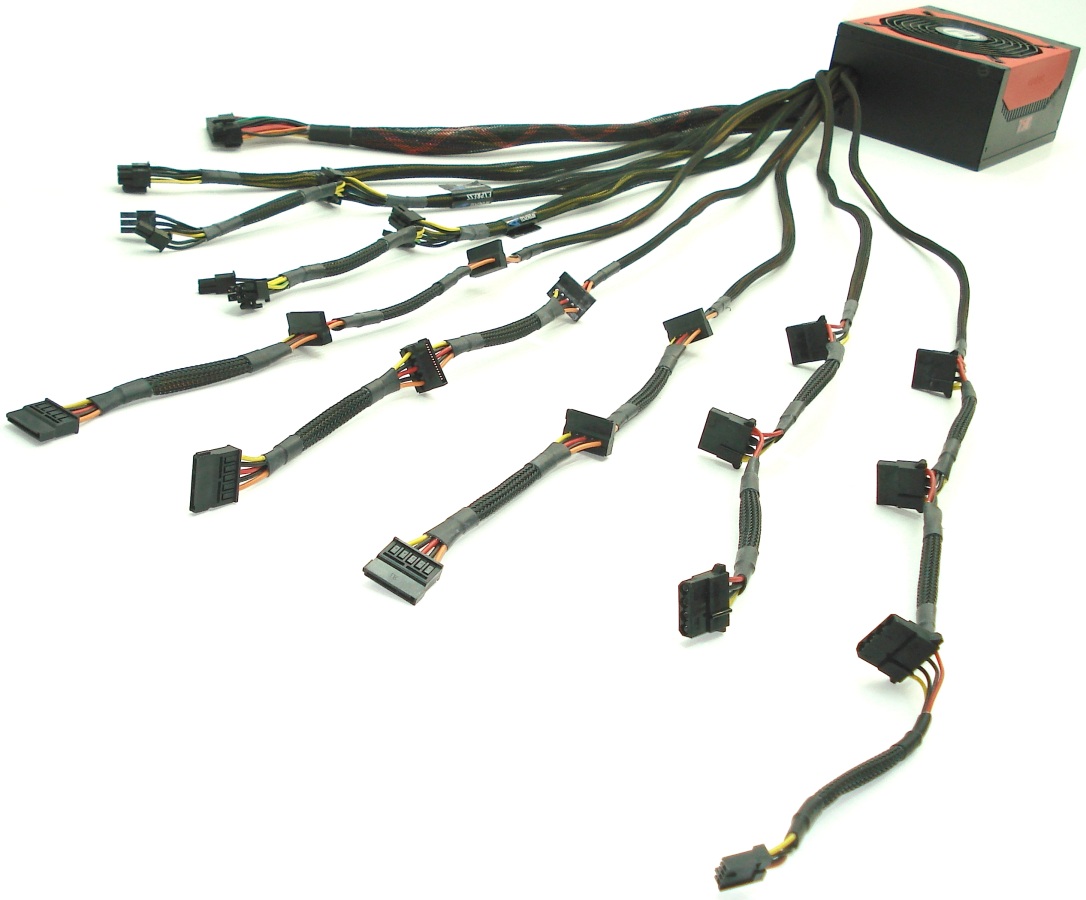

This is the PSU: http://www.islabit.com/wp-content/imagenes/raul/antec-hcg-750/42-antec-high-current-gamer-750.jpg Yes, I hid ALL of the cables.

Other specs:
i5 2310 @ 3.3ghz
8gb RAM 2x2gb and 1x4gb
MSI Z77MA-G45
NZXT Vulcan case
Antec HCG-750

Uploaded with ImageShack.com

Uploaded with ImageShack.com

Uploaded with ImageShack.com

Uploaded with ImageShack.com



[visuore]

PCPartPicker part list / Price breakdown by merchant / Benchmarks

CPU: Intel Core i5-4430 3.0GHz Quad-Core Processor ($174.99 @ Newegg)
Motherboard: MSI H87M-G43 Micro ATX LGA1150 Motherboard ($84.99 @ Amazon)
Memory: G.Skill Ripjaws Series 8GB (2 x 4GB) DDR3-1600 Memory ($74.99 @ Newegg)
Storage: Samsung 840 Pro Series 128GB 2.5" Solid State Disk ($127.99 @ Newegg)
Storage: Western Digital Caviar Blue 1TB 3.5" 7200RPM Internal Hard Drive ($59.98 @ OutletPC)
Video Card: EVGA GeForce GTX 770 2GB Video Card ($334.98 @ SuperBiiz)
Case: NZXT Phantom 410 (Black) ATX Mid Tower Case ($79.99 @ Mwave)
Power Supply: XFX 550W 80 PLUS Bronze Certified ATX12V / EPS12V Power Supply ($48.99 @ NCIX US)
Optical Drive: Samsung SH-224DB/RSBS DVD/CD Writer ($21.99 @ Newegg)
Operating System: Microsoft Windows 7 Home Premium SP1 (OEM) (64-bit) ($84.99 @ NCIX US)
Monitor: Asus VS238H-P 23.0" Monitor ($147.58 @ Newegg)
Keyboard: Razer DeathStalker Wired Gaming Keyboard ($75.99 @ B&H)
Mouse: Razer DeathAdder Wired Optical Mouse ($59.60 @ Amazon)
Total: $1377.05
(Prices include shipping, taxes, and discounts when available.)
(Generated by PCPartPicker 2013-11-02 15:48 EDT-0400)

Got this about 2-3 months ago. Built it myself. First build ever for gaming and possibly later streaming (need to upgrade my internet first, which I don't know where to starty). But yea here it is.

Will be posting pictures later.



[DComander1x]

Just rebuilt my Dell Workstation, added new board (previous one died within 3 to 4 months), added a H20 cooler, added a fan controller, a 2 TB HDD to offload data to, and a GTX 650 to upgrade from my previous GT 620 for gaming. One I get my camera a new battery, I will post better quality pictures then with my Nexus 7.

CPU: AMD FX-6300 3.5GHz 6-Core Processor @ 4200 MHz / 1.2v
CPU Cooler: Corsair H80 92.0 CFM Liquid CPU Cooler
Motherboard: Gigabyte GA-78LMT-USB3 Micro ATX AM3+ Motherboard
Memory: PNY Optima 4GB (1 x 4GB) DDR3-1333 Memory
Memory: PNY XLR8 8GB (1 x 8GB) DDR3-1600 Memory
Storage: Mushkin Chronos Deluxe MX 120GB 2.5" Solid State Disk
Storage: Western Digital Caviar Blue 320GB 3.5" 7200RPM Internal Hard Drive (Bought as a replacement HDD for original Dell Dimension 2300)
Storage: Hitachi Deskstar 750GB 3.5" 7200RPM Internal Hard Drive (from 2010 HP Pavilion Desktop)
Storage: Seagate Barracuda 1TB 3.5" 7200RPM Internal Hard Drive
Storage: Toshiba 2TB 3.5" 7200RPM Internal Hard Drive
Video Card: EVGA GeForce GTX 650 1GB Video Card @ 1202 MHz Core / 1249.7 MHz (2530 MHz) Memory
Case: 2002 Dell Dimension 2300
Power Supply: Dynex 400w ATX PSU
Optical Drive: HP CDDVDW TS-H653R OEM (from 2010 HP Pavilion Desktop)
Operating System: Microsoft Windows 8.1 Enterprise x64 90 Day Trial & Windows 7 Enterprise x64
Monitor: LG Flatron W2253TQ 21.5"



[jimthenagual]

Upgraded power supply getting ready for SLI, and got the corsair sleeved cables with it.
Specs in signature



[nukemaster]

Even the power supply colors match

Nice and clean system.



[Onus]

It does look nice. Made me check the RAM in my own system for correct slot usage though; we've got it right...



[Astralv]

Hey, guys!
Please, check out my system and vote for it on Asus builders competition Nov. 14th till November 28th 2013. To vote for my build, please, go here: http://www.asus.com/microsite/2013/MB/gold_rush_promotion/Build.aspx?p=38
Thank you for your continuous support!



[Guest]

My first build.

PCPartPicker part list / Price breakdown by merchant / Benchmarks

CPU: AMD FX-8320 3.5GHz 8-Core Processor (Purchased For $145.99)
CPU Cooler: Cooler Master Hyper 212 EVO 82.9 CFM Sleeve Bearing CPU Cooler (Purchased For $32.00)
Thermal Compound: Cooler Master HTK-002 0.01g Thermal Paste (Purchased For $4.35)
Motherboard: Asus M5A97 R2.0 ATX AM3+ Motherboard (Purchased For $94.99)
Memory: PNY 8GB (2 x 4GB) DDR3-1866 Memory (Purchased For $55.00)
Storage: Samsung 840 Series 120GB 2.5" Solid State Disk (Purchased For $100.00)
Storage: Samsung Spinpoint MP4 250GB 2.5" 7200RPM Internal Hard Drive (Purchased For $0.00)
Video Card: Sapphire Radeon HD 7950 3GB Video Card (Purchased For $199.99)
Wireless Network Adapter: IOGEAR GWU625 802.11b/g/n USB 2.0 Wi-Fi Adapter (Purchased For $19.99)
Case: NZXT Source 210 Elite (Black) ATX Mid Tower Case (Purchased For $42.83)
Power Supply: Corsair CX 600W 80+ Bronze Certified Semi-Modular ATX Power Supply (Purchased For $49.99)
Operating System: Microsoft Windows 8 Professional (OEM) (64-bit) (Purchased For $99.99)
Monitor: Asus VS247H-P 23.6" Monitor (Purchased For $135.00)
Keyboard: SteelSeries Merc Stealth Wired Ergonomic Keyboard (Purchased For $30.99)
Mouse: Cobra E-3lue Wired Optical Mouse (Purchased For $7.50)
Speakers: Logitech Z323 30W 2.1ch Speakers (Purchased For $0.00)
Other: Samsung TS-H653B Optical Drive (Purchased For $15.00)
Total: $1033.61
(Prices include shipping, taxes, and discounts when available.)
(Generated by PCPartPicker 2013-11-17 02:49 EST-0500)



[waterise]

I just now noticed you can't even see my PC in the pic 'cause I got so much stuff going on here, lol, but here's my dual monitor setup, my X-Box, and my iPad that I keep here for certain purposes.

I'll post a pic of my PC sometime soon-ish.



[coastie65]

Need to go back and do a bit more on the wire management: ...

That's a strange design for a heat sink, it ensures you cant do push/pull!

Yeah, it is. I am think about going to a Cooler Master. I had a Zalman CNPS 10x Performa in there, but that thing was huge.



[udi30]

Asus P6TSE
i7 920 4.2Ghz
Corsair H110
kingston 6GB
Asus HD 7850
Creative 5.1 Sound Blaster
ANTEC 620W
WD 2TB
HITACHI 1TB
SAMSUNG 1TB
FRACTAL DESIGN XL



[RussK1]

That looks really good!



[lt13kformula]

My Build: (My cable management skills are HORRID)
Thermaltake Chaser MKII Case
Asus Z77 Sabertooth Mobo
Intel i7 3770K Quad Core OC 4.2 / 4.6 Turbo
Corsair H100 Liquid Cooler & Rad
Duel Asus GTX 660 TI 2GB 192 Bit GPU's in SLI
Coolmax ZU 900B 900w PSU
G.Skill Ripjaw Z 32 Gig Ram
1 TB WD Velociraptor HDD (Games)
750 Gb Seagate HDD (Multimedia)
Kingston Hyper X 3k 120 Gb SSD (OS)
Asus Blueray Burner
TP Link Duel Band 2.4Ghz Wifi Card
Roswell 40 in 1 Internal Card Reader



[Onus]

Udi30, that's a nice aesthetic.



[Lutfij]

@ lt13kformula - I fixed your image links - they ware causing havoc with the thread as well. Back on topic though, your gaming HTPC looks amazing!!! Cheers mate! If you'd like PM me and we can probably sort out your cablemanagement skillz

@ coastie65 -

When commenting on a system gallery, please type the poster's name in your response. Do Not quote their gallery in your response.

available here



[fruees]

Here are some pictures of the Phenom M with a custom side window

hope you enjoy



[dansgas1000]

I build my new PC yesterday this is my first build I would love to see your comments on it

Sepcs:
Intel Core i7 4770 @ 3.4GHz + Intel Stock CPU Cooler
Gigabyte GA-H87-HD3 Motherboard
Corsair Vengeance 16GB Low Profile Blue (2x8GB)
MSI 2GB GTX 760 Gaming Edition OC
Fractal Design Define R4 Black Pearl Without Window
Antec HCP-750W 80 PLUS Gold PSU
1TB Seagate HDD 7200RPM
Samsung 120GB 840 EVO SSD
3x Fractal Design Silent Series R2 Fans 140mm
Standard DVD Drive
Windows 7 64 bit OEM Hone Premium
