Tom's Hardware Member System Gallery

[Joseph Stallen]

What's with the cardboard? Noise prevention (lol nice name you've got there..)
Also, you can replace the thermal paste to help w/ temps.

the reference card's fan is either too loud at uber mode or throttles at silent mode.. so i kept it on silent and put a corsair SP120 high static pressure fan to throw air in.. keeps it quiet when gaming and doesn't throttle much.. cardboard prevents airleaks and air only passes through the card..
and i already replaced the term. paste..



[ghostrider85]

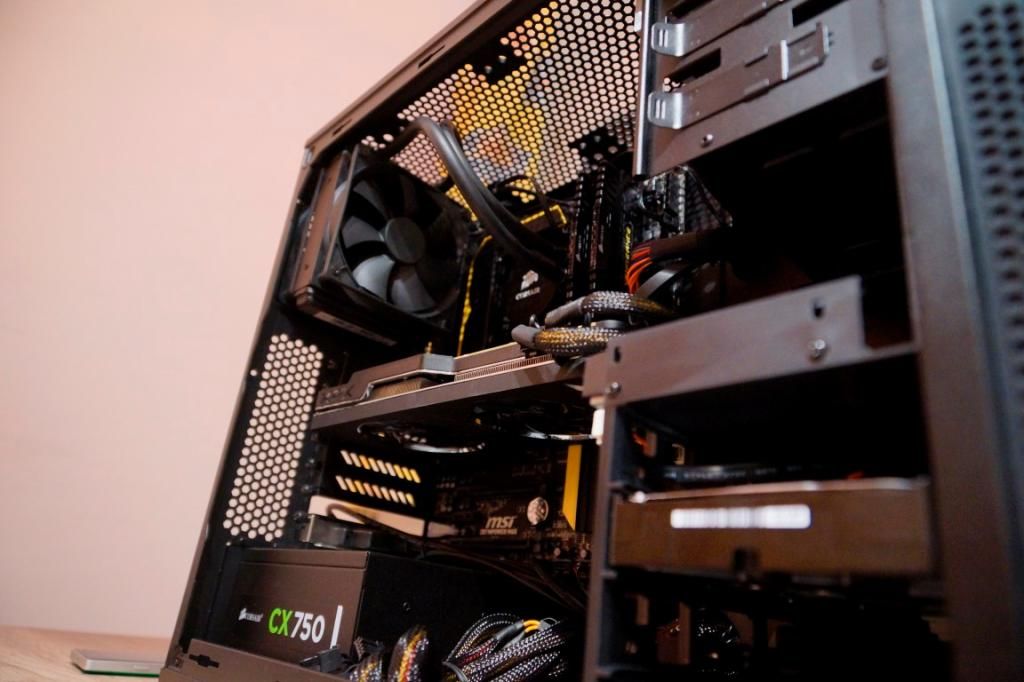

My build
core I7 4790k @4.6 Ghz
Msi z87 mpower max ac motherboard
16gb corsair vengeance pc3-14900@ 1866mhz cl10
Corsair cx750 80plus bronze PSU
Corsair Carbide Series 200R case
XFX radeon 290 double dissipation black edition@ 980mhz/ 5000mhz
Crucial MX100 SSD 256GB
WD Green 2TB
Corsair H55 cooler
Akasa card reader
Lg dvd-rw

5th Image link 😉



[blockhead78]

Specs;
i7 4790K @ 4.6Ghz
Asus Maximus VII Ranger
2 x Asus Strix GTX 980 DCUii OC
8GB Kingston HyperX Genesis
Corsair H80i
XFX 850W Black Edition 80+ Gold
NZXT H440
1 x 840 EVO 1TB
2 x WD Green 1TB
Corsair K70 Vengeance
Corsair M40 Raptor

Won't be upgrading for a while now, otherwise I'll be facing divorce LOL



[Storm-cooled72]

My 350 dollar craigslist scrapyard. She works like a charm! Getting a new gpu (gtx 970) soon, and going to an VGA hadron. Will post update pics!

SPECS:

i7 3770 @3.9ghz
CX430 psu
Acer ME600 motherboard
zalman cnps 5x performa
MSI GTX 660 OC
Logysis Case (forget which)
New cable management (just did today!)
80 GB Samsung spinpoint
8gb Patriot low profile 1600 ddr3
Gamdias ARES gaming combo mouse/keyboard

Here's the dropbox link for the build



[Pcbuilder123]

I think you posted the wrong picture hahaha. Anyways, that's an AWESOME build for so less, is it working okay?



[Storm-cooled72]

I think you posted the wrong picture hahaha. Anyways, that's an AWESOME build for so less, is it working okay?

Yeah! she rockets through cpu,memory and graphics tests, and plays BF4 at 60 fps. Really a fun machine! Temps never get above 50 c.

The Pics should be fixed now.

Here was my cost for components:

i7-3770 and Mobo: Free off of c-list
CX430: $20
MSI GTX 660: $90
RAM: $50
Case: $40
HDD: $10
Monitor: free from friend!
Trittons: $100
Keyboard/mouse: $40

TOTAL: $350 😀



[DITPiranha]

My rig:
Corsair 450d
Asus Sabertooth Mark 1
I7-4790k
Corsair HX 850
G.Skill 2x8 Trident X 1866
Corsair H100i
512GB Samsung 850 Pro
2x WD Blue 500GB
1x WD Black 4TB
Asus GTX 970
3x Bitfenix Red Spectro Pro Fans

Sorry the interior pic isn't that great. Lighting sucks and pulling the case out of there is a pain lol



[Darkbreeze]

Can't believe I never came across, or thought to look, for this thread before, so I thought I'd post a link to the modification thread for the Storm Enforcer case I did, in case somebody might find it useful, and too show off my exceptional modification skills. Ok, that last part is a pretty blatant lie, but was necessary anyhow. Heh.

If I had realized this thread existed I would have posted the build here in the first place.

Cooler Master Storm Enforcer custom cooling modifications​



[Reddmann867]

MB: Asus Maximus VII Impact
CPU: i7 4790k
GPU: Asus GTX970-itx
Mem: Corsair Vengence Pro 2x8gb 1866
SSD: Samsung 1tb 850 Evo
Cooling: Corsair H100i
PSU: Corsair AX760i
Case: InWin D-Frame Mini
Other mods: Enermax Vegas 120mm fans, Darkside red LED strip, Corsair red sleeved 24pin ATX cable
Monitor: Asus PB238
Keyboard: Saitek Cyborg
Mouse: Razer Naga Epic



[Guest]

Please pardon the hideous colors on the walls. I'm renting and it's an eye sore. But here's my work in progress.

CPU: AMD FX 6300 (6 cores at 4.3GHz)
MB: ASUS M5A97 R2.0
Cooler: Cooler Master Seidon 120V
Fans: 5 X 140 MM fans
GPU: 1 x GIGABYTE GV-R927XOC-2GD Radeon R9 270X 2GB 256-Bit GDDR5, 1 X a crappy spare for my side monitors
PSU: CORSAIR CX series CX750M 750W ATX12V v2.3 80 PLUS
RAM: G.SKILL Sniper Series 8GB (2 x 4GB) 240-Pin DDR3 SDRAM DDR3 2133 (PC3 17000)



[Meetbag]

Thought I would throw my system up in here. This is my first proper gaming rig and I think it turned not too shabby.





Specs
Case - Corsair Carbide Air 540
Processor - i7 4790k @ 4.6ghz
MOBO - Asus Sabertooth Mark S
Memory - 16 gig (2x8) Kingston Hyper x Fury 1600mhz
HDD - Kingston Hyper x fury 240 gig SSD and some random seagate 2tb for storage.
Cooling - Corsair H105 and whole pile of Corsair SP120's
GPU - EVGA GTX 980
PSU - EVGA SuperNOVA 750 G2 Modular
OS - Windows 7 64 bit



[Lord3210]

Here is my new Rig:

I7 4790K OC to 4.8GHZ
Asus Maximus Vll Formula
Asus Strix GTX 980 OC II
16GB Corsair Dominator Platinum 2666MHZ OC 3000MHZ
Corsair H100i
Corsair AX860I
Corsair Obsidian 750D
Mushkin 240gb SSD
Western Digital Black 4TB Sata Drives X3



[customgtp]

Case: NZXT Phantom
Cooling fans: 3x200mm NZXT fans
(all Noctua fans) 2x140mm 3x120mm fans + corsair ram cooler w/ 60mm Noctua fans
Mobo: m5a99fx pro r2.0
Ram: G.SKILL Ripjaws X Series 16GB 1600
CPU: FX-8350 cooled with H80i with Noctua NF-F12 3000rpm fans
GPU: EVGA GTX 780 FTW 980MHz x2 SLI
PSU: EVGA SuperNOVA 1000 G2 80 PLUS GOLD 1000w



[Storm-cooled72]

Time for an update! I posted the pics before, but these are some new ones, with an ssd, case, and some other little things. Found the mobo on clist with the cpu for free, and just discovered it had an embedded bios windows 8 key on it, so it looks like I will be with it for a while. I may get a gtx 980 or 970 soon.

Link to the slideshow:

https://www.dropbox.com/s/af1ev8ml9kofloo/DSCF0190.JPG?dl=0


i7 3770 @3.9ghz
CX430 psu
Acer ME600 motherboard
MSI GTX 660 OC
Thermaltake commander snow edition
radeon r7 240gb ssd
8gb Patriot low profile 1600 ddr3
Gamdias ARES gaming combo mouse/keyboard
logysis sunstick led light (bright!)
Thermaltake Luna 12 Red 120mm fans
antec 3-speed black fan
liteOn DVD drive
Windows 8.1



[fl-gators-fan]

Specs;

a. NZXT H440 all white case with x3 NZXT 120mm fans in the front as intake & x1 Corsair AF140 quiet edition fan in the back as exhaust
b. Corsair H100i all in one liquid CPU cooler with x2 Corsair SP120 high performance edition PWM fans (exhaust)
c. Intel I7-4790K CPU overclocked at 4.5 GHz
d. Asus Z97 Sabertooth Mark S motherboard
c. 16 GB (8GB x 2) Kingston HyperX Fury DDR3 1866 white edition RAM
d. x2 Nvidia GTX 970 4GB Video Cards in 2 way SLI
e. Corsair Professional Series HX 750 watt 80+ gold PSU
f. Samsung 840 Series 250 GB SSD drive (Games)
g. Mushkin Chronos 120 GB SSD drive (Primary OS & programs)
h. Hitachi 1TB 7,200 hard drive
i. Windows 7 Professional 64 bit
j. Cooler Master CM Storm Devastator Gaming Keyboard
k. Cooler Master CM Storm Devastator Gaming Mouse
l. Roccat Sense Chrome Blue Gaming Mouse Mat
m. AOC Q2963PM 29" Ultra Widescreen IPS monitor (2560x1080)
n. GX Gaming SW-G2.1 2000 gaming speaker and subwoofer set
o. x4 Maxfinder triple braided / sleeved white 6 pin PCI-e cables
p. x1 Maxfinder triple braided / sleeved white 8 pin CPU cable
q. x1 Maxfinder triple braided / sleeved white 24 pin cable
r. x1 Bitfenix Alchemy white LED light strip (30cm - 11.8 inches)
s. Gelid GC Extreme CPU thermal paste



[Joshua Martin]

Ended up getting a NZXT Phantom and redoing my rig. What do you guys think of the change?

The Nexus
Chassis - NZXT Phantom
MOBO - Gigabyte Sniper B6
CPU - Intel Core I5-4440 3.3GHz -Liquid cooled by a Corsair H50
GPU - ASUS GTX 970 "Strix"
RAM - 16GB G.Skill Ripjaws
SSD - 120GB PNY XLR8
HDD - (2)1TB SeaGate & 2TB Western Digital
PSU - Corsair CX600M
Mouse - Razer Naga EPIC Wireless
Keyboard - Razer Deathstalker
Headset - Logitech G430 7.1 Surround
Monitors - 4x 22" Dell Monitors



[tecmo34]

The last few builds posted have been great! Keep up the awesome builds!



[customgtp]

Just rebuilt my bedroom pc

Case: NZXT S340
Cooling: CORSAIR Hydro Series H60 w/ 2x BitFenix Spectre Pro 140mm Fans
G.Skill Turbulence II Memory Dual Cooling
4x BitFenix Spectre Pro 140mm Fans total
1x ARCTIC F14-140mm top fan
Mobo: ASUS M5A78L-M/USB3 AM3+ AMD 760G
Ram: G.SKILL Sniper Series DDR3 1866
CPU: AMD Athlon II X4 645 Propus Quad-Core 3.1GHz
GPU: EVGA GTX 750 Ti 2GB FTW w/ ACX Cooling
PSU: CORSAIR CSM Series CS550M 550W
Lighting: Logisys Strip with Color and Pattern Changing Remote Control



[Stealth83]

Here's mine, just upgraded to a 980 ti sc.

CASE - Phanteks Luxe (5 fans)
MOBO - MSI Z97 Gaming 7
CPU - Intel Core I7-4770k @ 3.5GHz
CPU Cooler - CM Hyper 212 evo (dual fans)
GPU - EVGA GTX 980 ti sc
RAM - 16GB Crucial Elite @ 1866
SSD - Samsung 840 evo 500gb (primary)
SSD - PNY Optima 240gb (games)
HDD - WD Blue 1tb (storage)
PSU - ThermalTake Smart 750
Mouse - Logitech m705 Wireless
Keyboard - Logitech mk700 Wireless
Audio - Sound Blaster Z
Surround - Logitech Z506 - 5.1
Headset - Plantronics GameCom 788 - 7.1 Surround
Monitor - ASUS Rog Swift PG278Q



[fl-gators-fan]

Just added two custom GPU backplates and SLI bridge cover that I got from Coldzero! 😀 I call it......The White Stag



[Joshua Martin]

Dude, Nice looking rig! A+



[philphaser]

Hi! It's my 1st post, so please don't be too tough on me…
Wanted to show my 1st self-made build, done about 1 month ago…

CPU:
Intel Core i5 4670K @ 4.2GHz + Corsair H75

Mainboard:
MSI Z97S SLI Krait

GPU:
MSI GTX 970 Gaming 4G 100ME

RAM:
Corsair Vengeance LP 4x4GB DDR3-1600

PSU:
Corsair CS550M

Case:
Corsair 100R Silent
+ 2x Noctua NF-P14S Redux PWM / 2x Nanoxia FX Evo 120 PWM

Storage:
Samsung 840 EVO 250GB
Western Digital WD Green 1TB
Hitachi Travelstar 750GB

More info & photos:
www.pcpartpicker.com/b/ZnBPxr



[Joshua Martin]

Very nice!



[philphaser]

@Distello

I like your build a lot! Are those on top 140mm fans? If not i'd replace the red ring with the white one in front of the H80i…otherwise it's perfect! ^^

@fl-gators-fan

… it's an ephipahny!

@JessePalacio

I got the upmost respect for all full loop build as clean as this! It's awsome!

@Joshua Martin

Thanks! ^^



[nukemaster]

philphaser, To keep this thread clean, can you please multi quote instead of making 3 posts. And i like the black/green theme you have.

Also SG05 with red(they look orange in the picture) leds

Inside floor HDD/SSD

and

Extra USB

Slightly cleaned out my mess on my gaming system.
